1.4 TSI engine (EA211) · Cooling · Coolant pump, regulation of cooling system

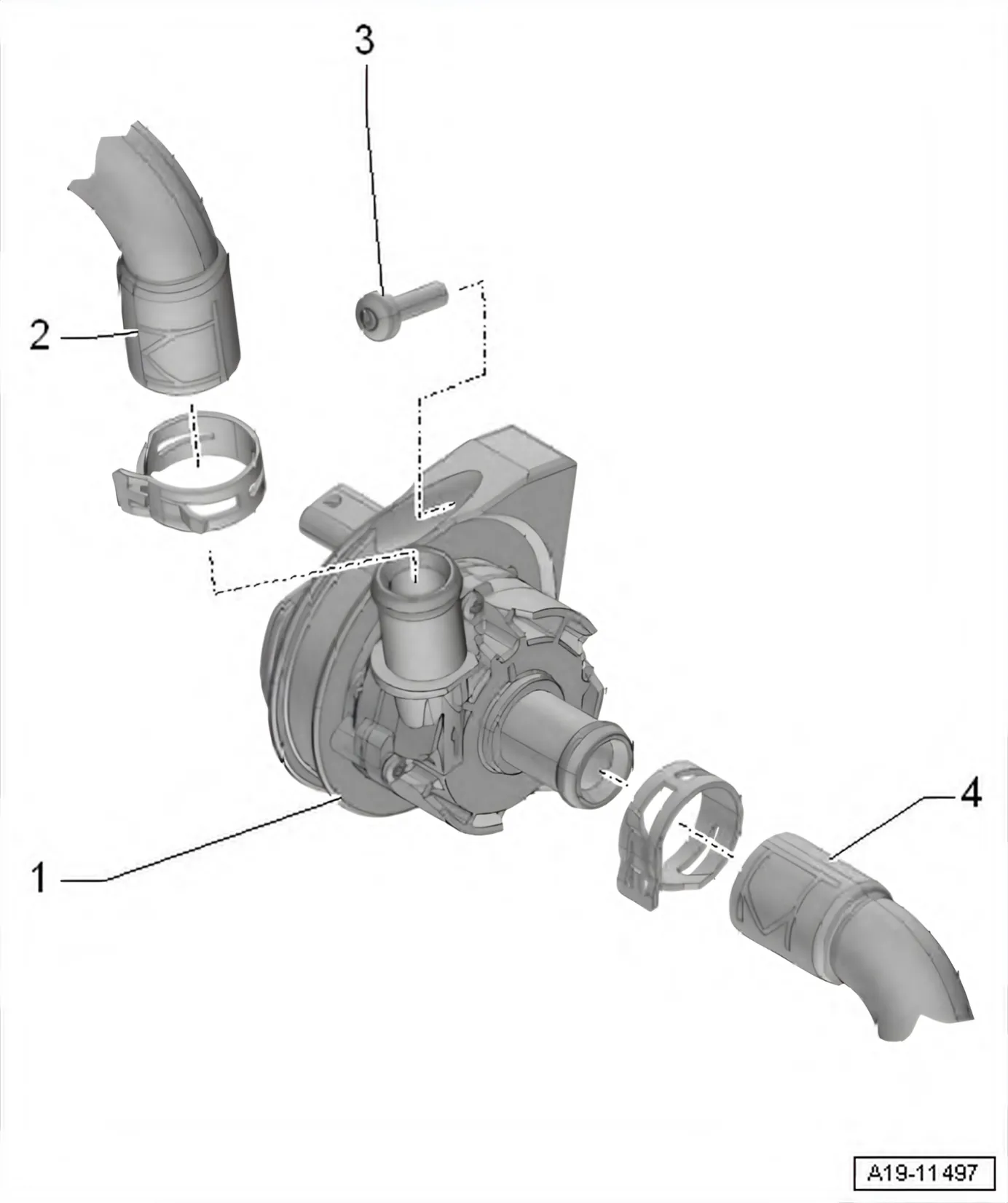

Electric coolant pump – assembly overview and fastening
- 1 Charge air cooling pump - V188-
- with holder
- Removing and installing
- 2 Coolant hose
- 3 Bolt
- 8 Nm
- 4 Coolant hose
