1.4 TSI engine (EA211) · Cylinder head, valve gear · Cylinder head

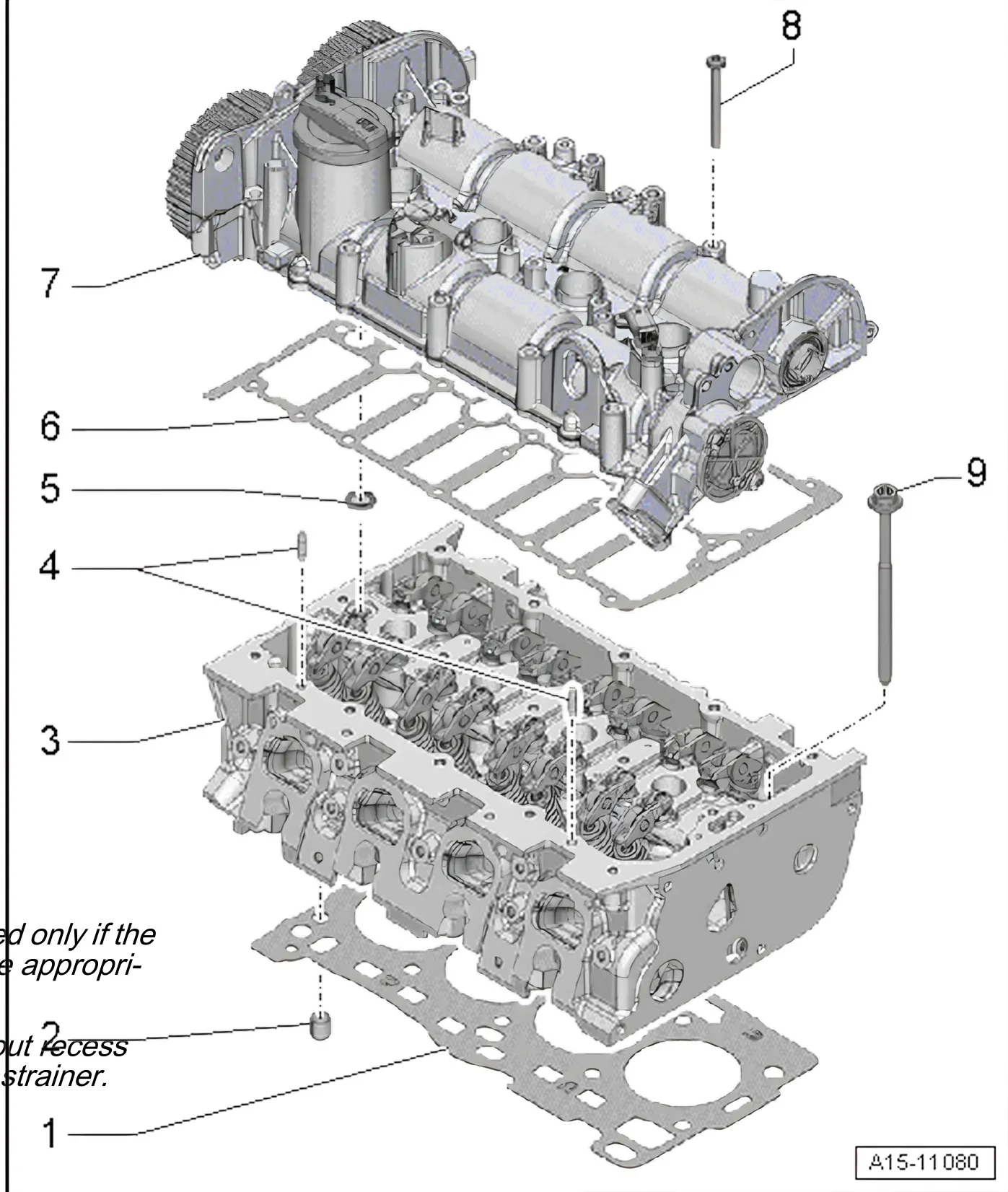

Cylinder head – assembly overview and fastening

1 Cylinder head gasket
- Renewing ⇒ 1.3 Removing and installing cylinder head
- Observe installation position: Part number to cylinder head
2 Dowel sleeve
- Qty. 2
3 Cylinder head
- Removing and installing ⇒ 1.3 Removing and installing cylinder head
- Check for distortion ⇒ 1.1 Assembly overview - cylinder head.
4 Dowel pins
5 Seal
- With oil strainer
- Inserted into cylinder head

6 Seal
- Renew after removal
7 Camshaft case
- Removing and installing ⇒ 1.4 Removing and installing camshaft housing
- The camshafts must not be removed individually.
- In the event of repair, the camshaft housing must be renewed completely.
8 Bolt
- Specified torque and tightening sequence ⇒ 1.2.2 Assembly overview - camshaft housing, exhaust side with toothed belt pulley
9 Bolt
- Renew after removal
- Sequence when loosening ⇒ 1.3 Removing and installing cylinder head.
- Specified torque and tightening sequence ⇒ 1.1 Assembly overview - cylinder head

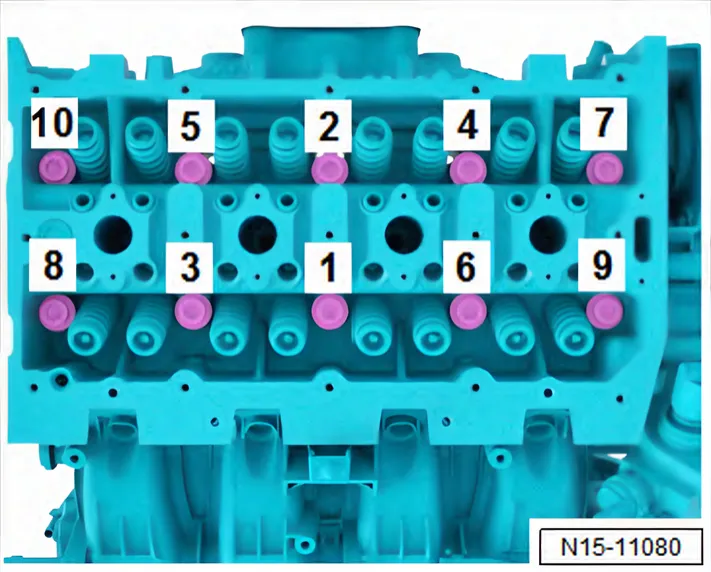

Cylinder head - specified torque and sequence

Stage	Bolts	Specified torque/turning further angle
1.	-1 … 10-	40 Nm
2.	-1 … 10-	Turn 90° further
3.	-1 … 10-	Turn 90° further
4.	-1 … 10-	Turn 90° further

Checking cylinder head for distortion

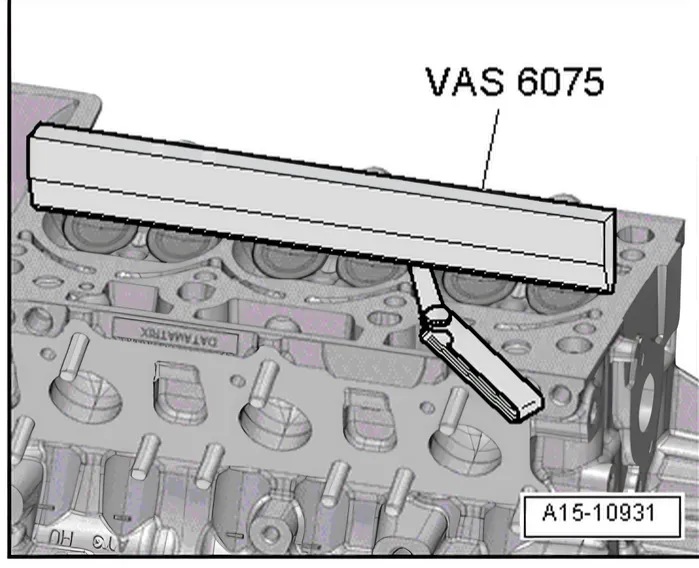

Use straight edge 500 mm - VAS 6075- and feeler gauge to measure cylinder head for distortion at several points.
