1.4 TSI engine (EA211) · Lubrication · Oil filter, oil pressure switch

Removing and installing oil pressure regulating valve - N428-

Removing

  • Remove noise insulation ⇒ General body repairs, exterior; Rep. gr. 66; Noise insulation.
  • Detach heat insulation sleeves.

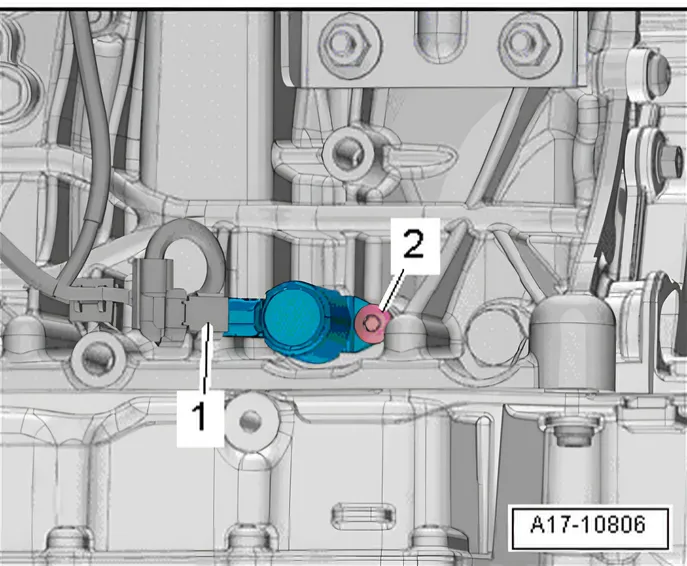

  • Disconnect electrical connector -1-.
  • Place a cloth underneath to catch escaping engine oil.
  • Unscrew bolt -2- and pull off valve for oil pressure control - N428-.

Installing

Install in reverse order of removal, observing the following:

  • Install noise insulation ⇒ General body repairs, exterior; Rep. gr. 66; Noise insulation.
