Coolant pipes

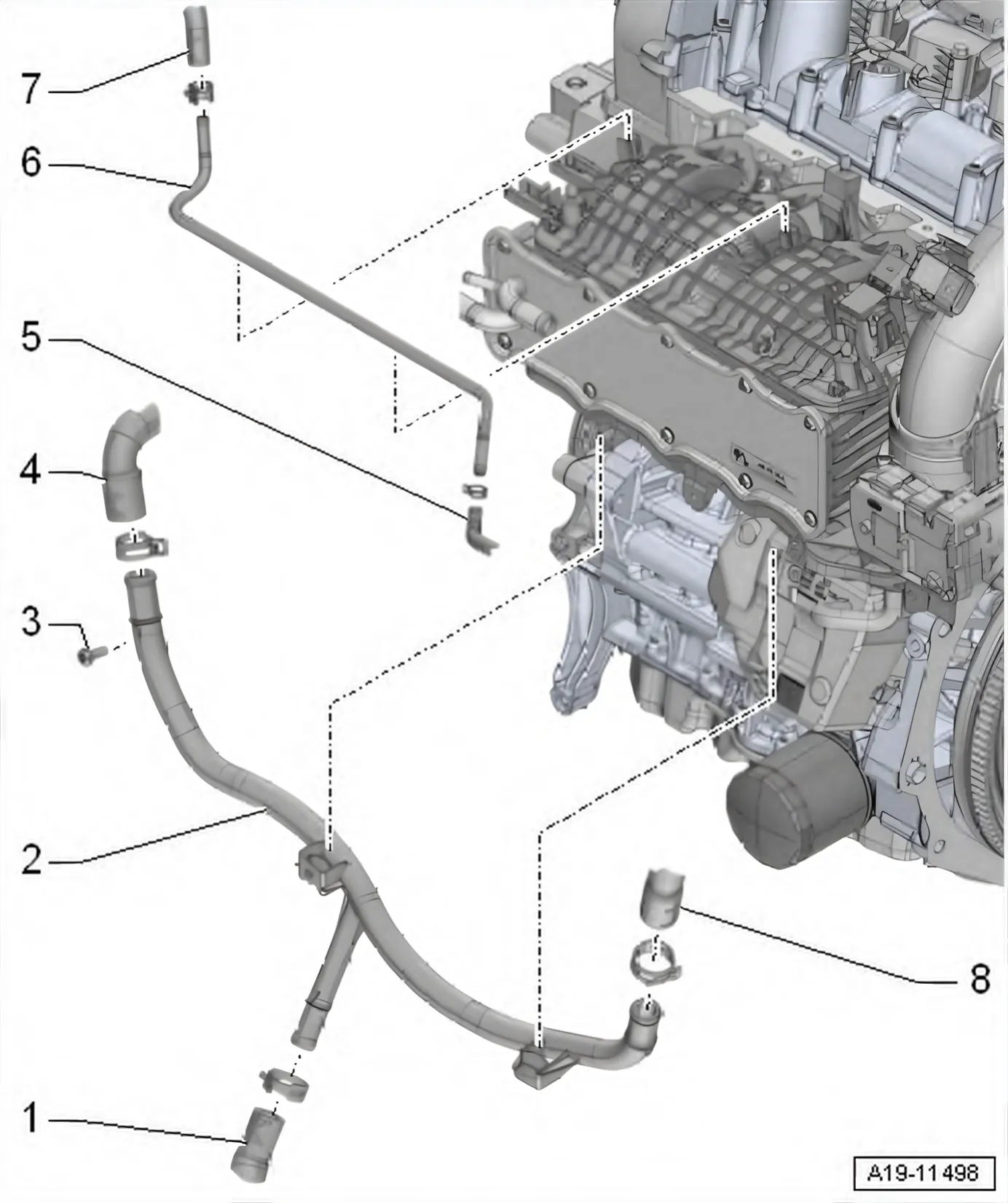

3.1 Assembly overview - coolant pipes

• 1 Coolant hose
• 2 Coolant pipe
  • Clipped onto intake manifold (bottom)
  • To remove, remove intake manifold ⇒ 4.2 Removing and installing intake manifold
• 3 Bolt
  • 8 Nm
• 4 Coolant hose
• 5 Coolant hose
• 6 Coolant line
  • Clipped onto intake manifold (top)
• 7 Coolant hose
• 8 Coolant hose

3.2 Removing and installing coolant pipes

Special tools and workshop equipment required

• Hose clamps to 25 mm - 3094-

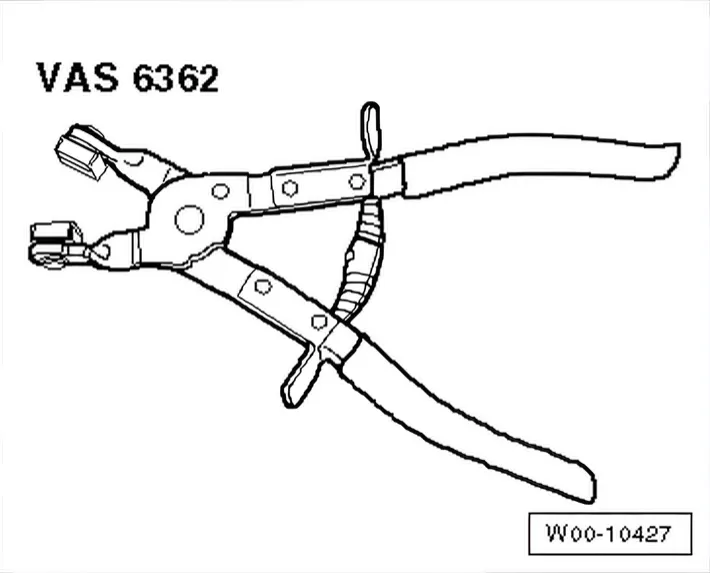

• Spring-type clip pliers - VAS 6362-

Removing

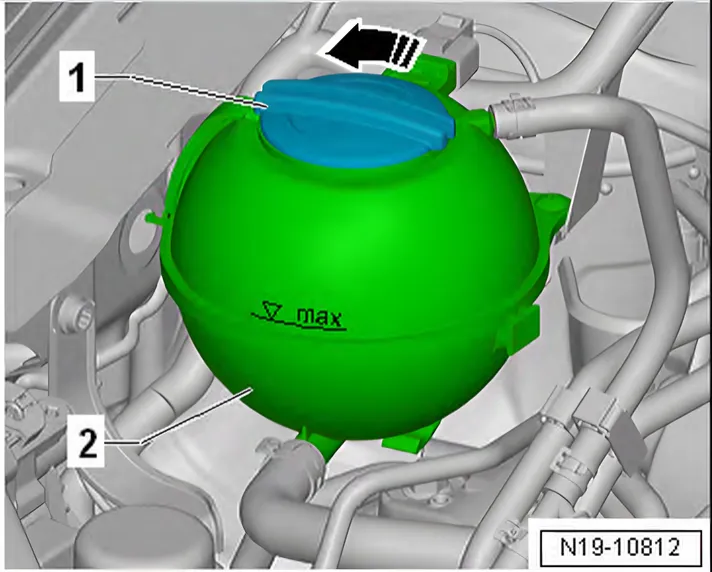

• Carefully open filler cap -1- on coolant expansion tank -2- in -direction of arrow-.

• Clamp off coolant hoses on coolant pipe using hose clamps up to 25 mm - 3094-.
• Release hose clips -arrows- and detach coolant hoses.
• Remove intake manifold ⇒ 4.2 Removing and installing intake manifold.

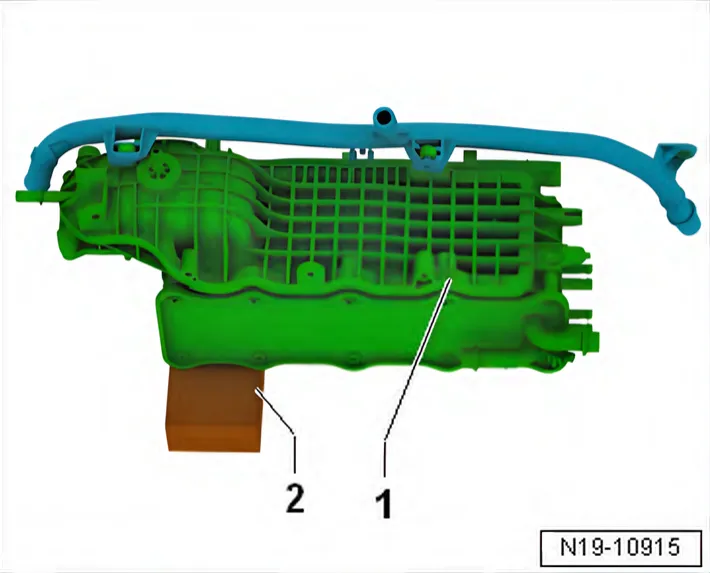

• Lay intake manifold -1- on the workbench as shown.
• Push wooden block -2- under intake manifold.

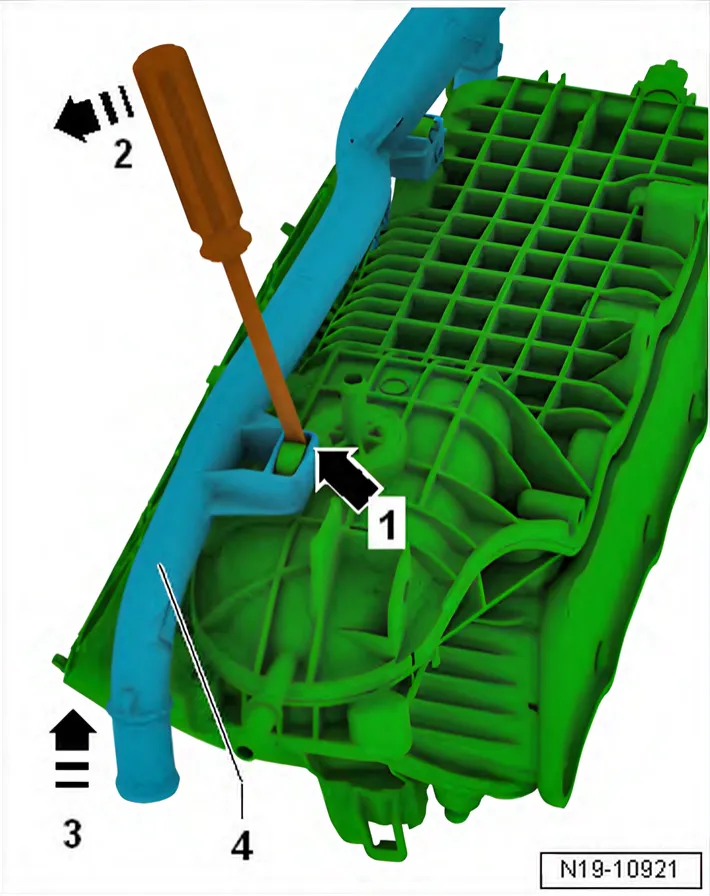

• Insert a flat-blade screwdriver into the slot -arrow 1-.

• Carefully push screwdriver in direction of -arrow 2-. At the same time, raise coolant pipe -4- in direction of -arrow 3-.

• Raise coolant pipe -1- further in direction of -arrow-. Detach coolant pipe from fastener -2-.

Installing

• First push coolant pipe onto mounting -1- until it engages.
• Then push coolant pipe onto mounting -2- until it engages.
• Check that the coolant pipe has properly engaged by pulling on it.

Install in reverse order of removal. The following should be observed:

• Remove intake manifold ⇒ 4.2 Removing and installing intake manifold.
• Check coolant level ⇒ 1.3 Draining and adding coolant.

Torque settings

• ⇒ 4.1 Assembly overview - intake manifold
• ⇒ 3.1 Assembly overview - coolant pipes
