Engine oil cooler

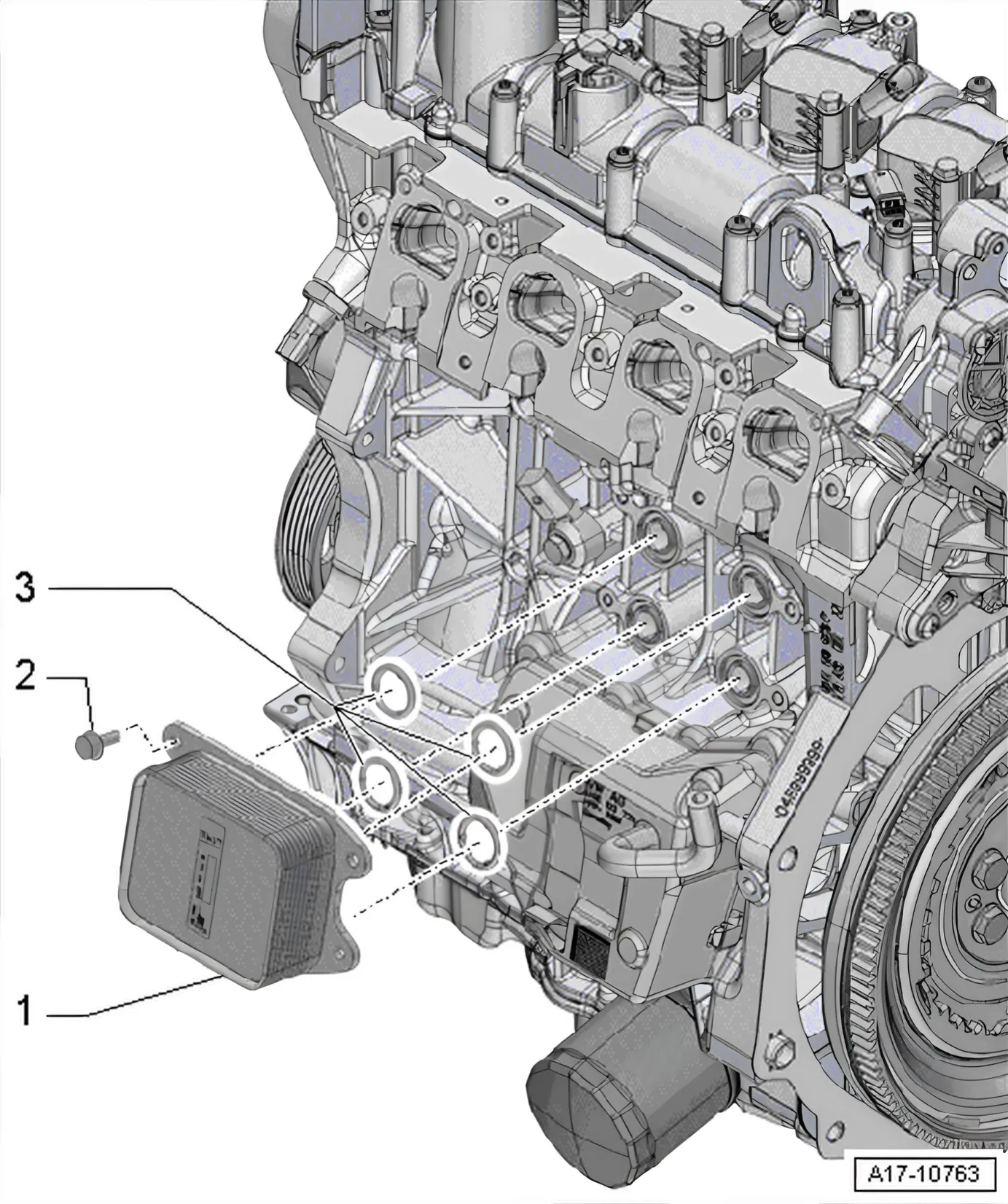

2.1 Assembly overview - engine oil cooler

• 1 Engine oil cooler
  • Observe notes ⇒ 1 Sump, oil pump
  • Removing and installing ⇒ 2.2 Removing and installing engine oil cooler
  • Renew coolant after replacing
• 2 Bolt
  • Renew after removal
  • 8 Nm + 90°
• 3 Oil seals
  • Renew after removal

2.2 Removing and installing engine oil cooler

Removing

• Drain coolant ⇒ 1.3 Draining and adding coolant.

• Remove intake manifold ⇒ 4.2 Removing and installing intake manifold.

• Unscrew bolts -arrows- and detach engine oil cooler -1-.

Installing

Install in reverse order of removal. The following should be observed:

• Insert new O-rings.
• Install intake manifold ⇒ 4.2 Removing and installing intake manifold.
• Add coolant ⇒ 1.3 Draining and adding coolant.

Torque settings

• ⇒ 2.1 Assembly overview - engine oil cooler
• ⇒ 1.1 Assembly overview - ignition system
