1.4 TSI engine (EA211) · Turbocharging/supercharging · Exhaust turbocharger

Turbocharger – assembly overview and fastening

1.1.1 Assembly overview - turbocharger, version 1

1 Exhaust turbocharger
- Removing and installing ⇒ 1.2 Removing and installing turbocharger
2 Bolt
- 8 Nm
3 Connection
4 O-ring
- Renew after removal
5 Seal
- Renew after removal
6 Heat shield
7 Bolt
- 25 Nm
8 Bolt
- 8 Nm
9 Nut
- Renew after removal
- 14 Nm
10 Bolt
- Renew after removal
- 9 Nm
11 Retaining clip
- Renew after removal
12 Operating lever
13 Lock nut
- Secure with sealing paint
- 6 Nm
14 Charge air pressure controller - V465-

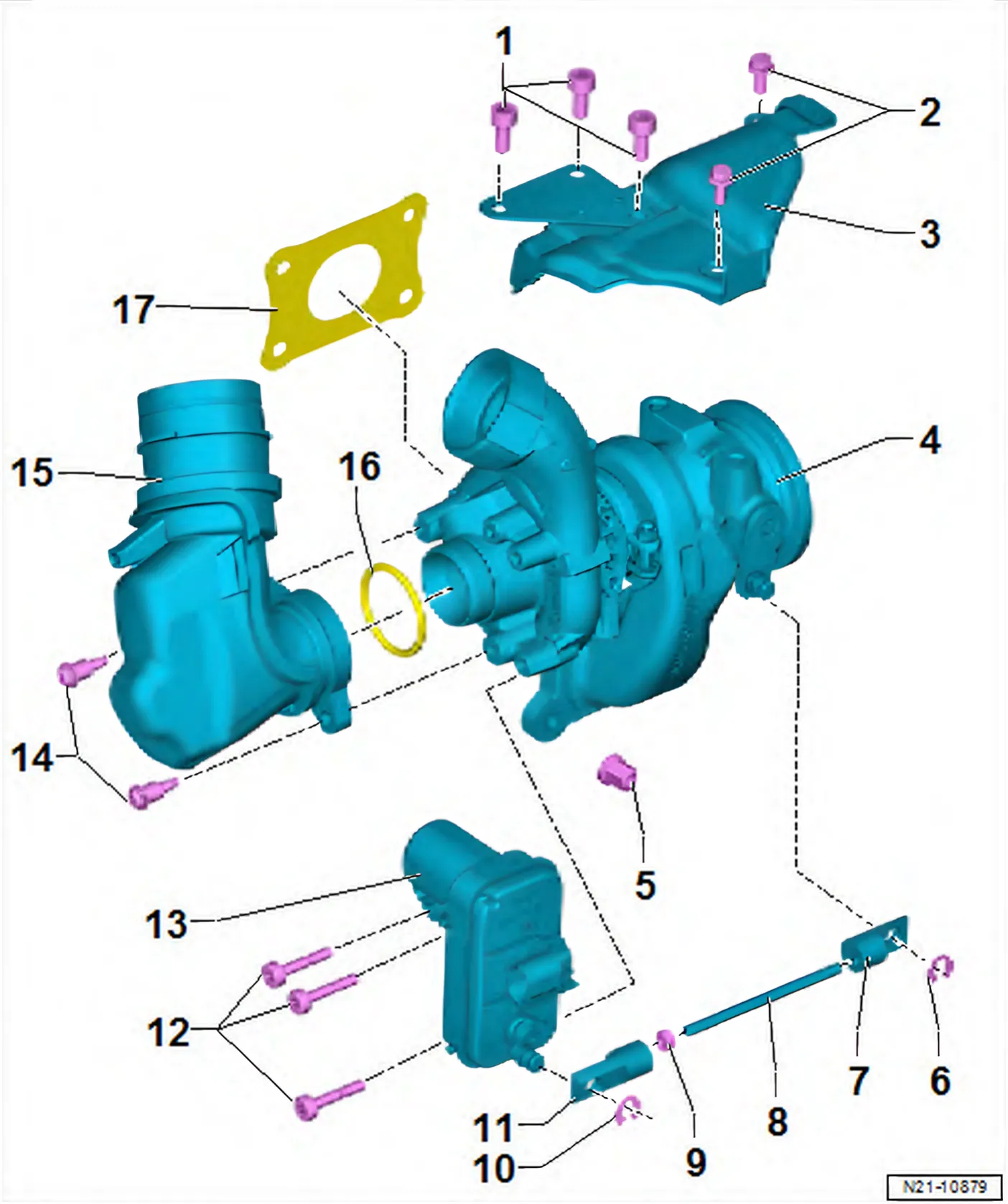

1 Bolt
- 25 Nm
2 Bolt/nut
- 8 Nm
3 Heat shield
4 Exhaust turbocharger
- Removing and installing ⇒ 1.2 Removing and installing turbocharger
5 Nut
- Renew
- 14 Nm
6 Retaining clip
- Renew
7 Operating lever
8 Control rod
9 Lock nut
- 6 Nm
- Secure with sealing paint
10 Retaining clip
- Renew
11 Operating lever
12 Bolt
- Qty. 3 ⇒ Electronic parts catalogue (ETKA).
- 8 Nm + 45°

14 Bolt
- 8 Nm
15 Union
- Removing and installing ⇒ 1.4 Removing and installing connection for turbocharger
16 O-ring
- Renew after removal
- Before installing, moisten lightly with clean engine oil.
17 Seal
- Renew

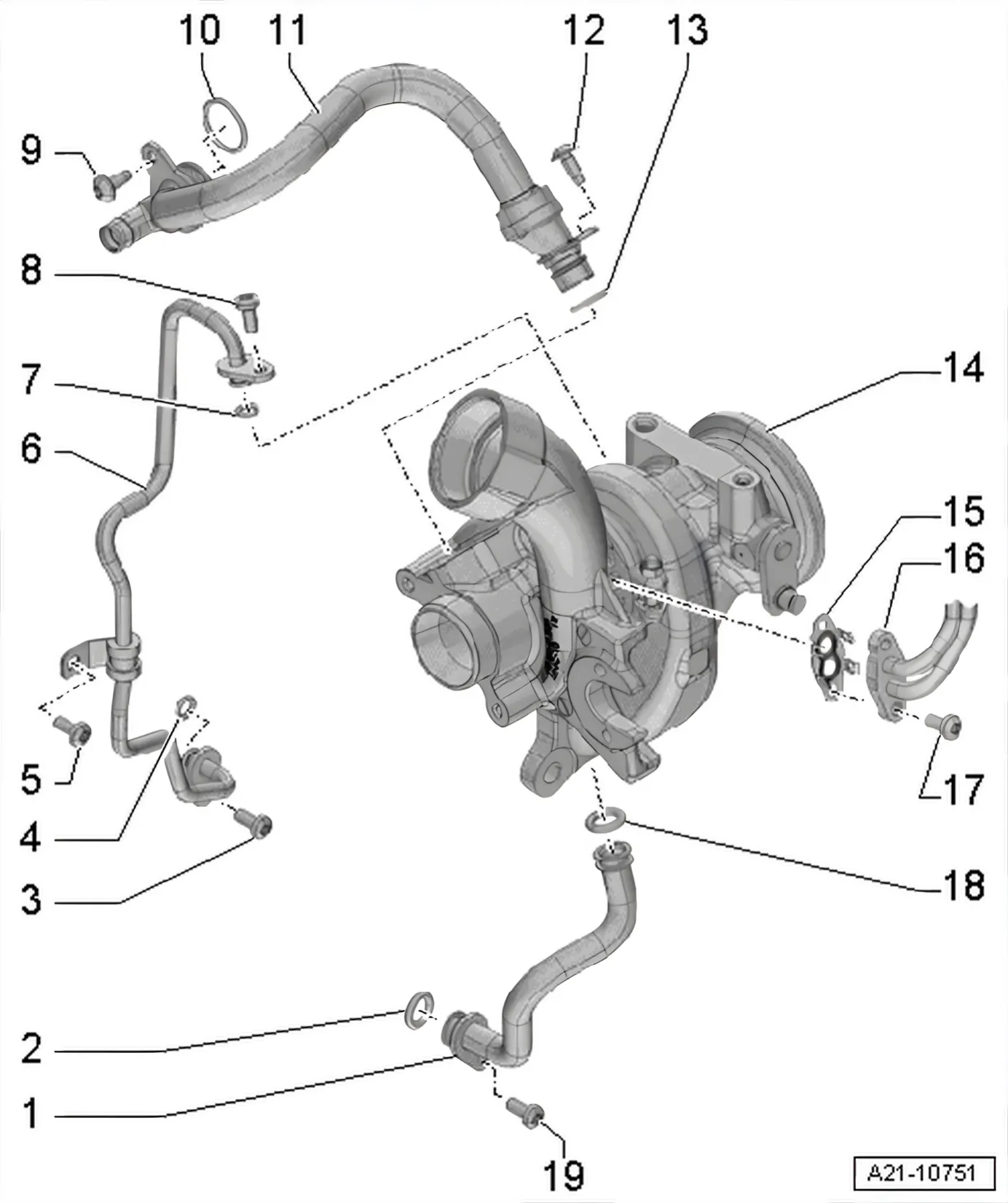

1 Oil return line
2 O-ring
- Renew after removal
3 Bolt
- 9 Nm
4 O-ring
- Renew after removal
5 Bolt
- 9 Nm
6 Oil supply line
7 O-ring
- Renew after removal
8 Bolt
- 9 Nm
9 Bolt
- Renew after removal
- 5 Nm
10 O-ring
- Check for damage, and renew if necessary; see ⇒ Electronic parts catalogue (ETKA)
11 Hose
- For crankcase ventilation.
12 Bolt
- Renew after removal
- 5 Nm
13 O-ring
- Check for damage, and renew if necessary; see ⇒ Electronic parts catalogue (ETKA)
14 Exhaust turbocharger
- Removing and installing ⇒ 1.2 Removing and installing turbocharger
15 Seal
- Renew after removal
16 Coolant lines
- Supply and return
17 Bolt
- 8 Nm
18 O-ring
- Renew after removal
19 Bolt
- 9 Nm
