1.4 TSI engine (EA211) · Cooling · Coolant pump, regulation of cooling system

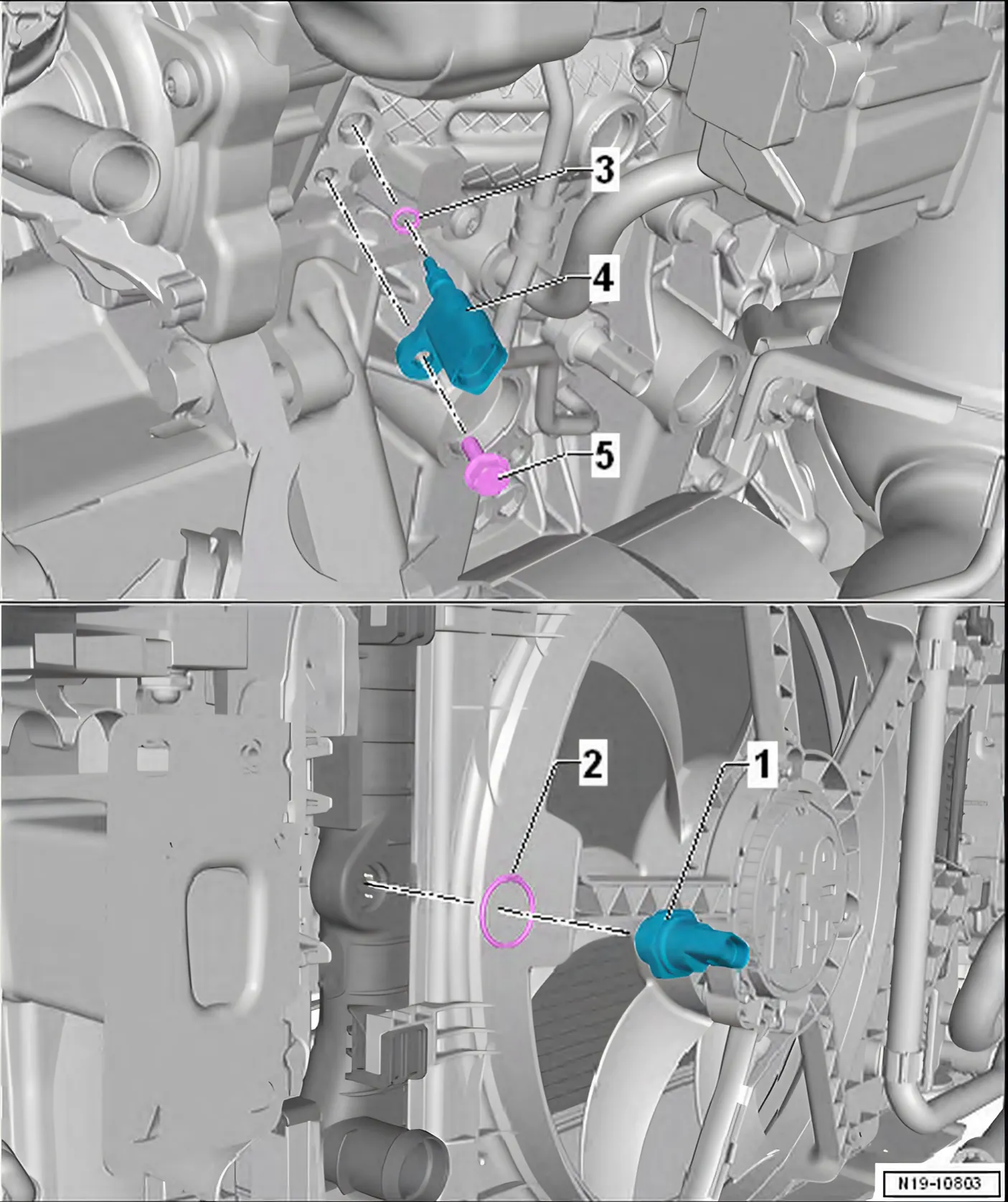

Coolant temperature sender – assembly overview and fastening
- 1 Radiator outlet coolant temperature sender - G83-
- 35 Nm
- Removing and installing ⇒ 2.9 Removing and installing radiator outlet coolant temperature sender G83
- 2 O-ring
- Renew after removal
- 3 O-ring
- Renew after removal
- 4 Radiator outlet coolant - G62-
- Removing and installing ⇒ 2.8 Removing and installing coolant temperature sender G62
- 5 Bolt
- 8 Nm
