1.4 TSI engine (EA211) · Cooling · Coolant pump, regulation of cooling system

Removing and installing electric coolant pump

Special tools and workshop equipment required

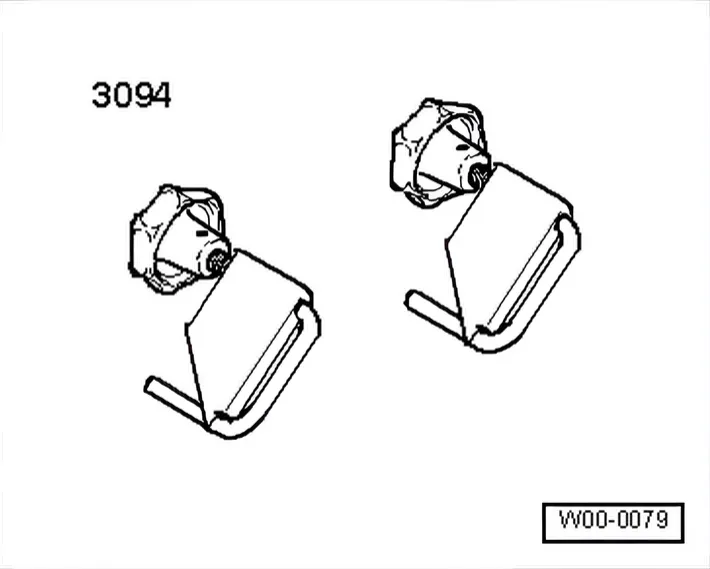

  • Hose clamps to 25 mm - 3094-
  • Drip tray for workshop hoist - VAS 6208-
  • Spring-type clip pliers - VAS 6362-

Removing

  • Carefully open filler cap -1- on coolant expansion tank -2- in -direction of arrow-.
  • Remove noise insulation ⇒ General body repairs, exterior; Rep. gr. 66; Noise insulation.

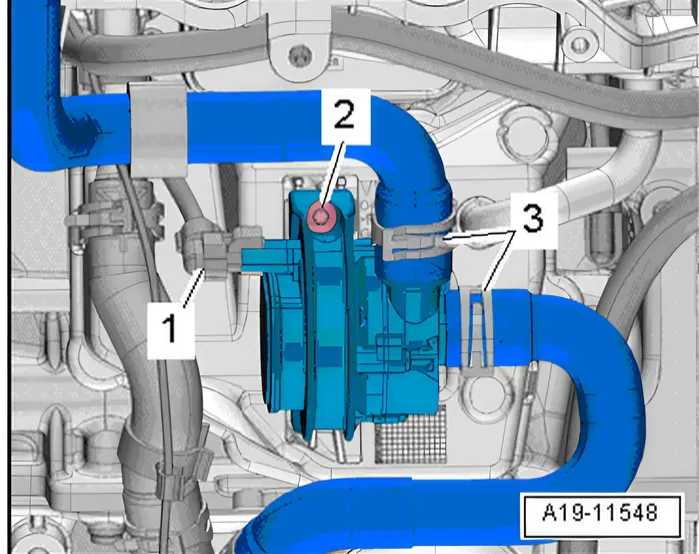

  • Disconnect electrical connector -1-.
  • Place drip tray for workshop hoist - VAS 6208- underneath.
  • Clamp off coolant hoses on charge air cooling pump - V188- using hose clamps up to 25 mm - 3094-.
  • Release hose clip -3- and remove coolant hose.
  • Unscrew bolt -2- and remove charge air cooling pump - V188-.

Installing

Install in reverse order of removal. The following should be observed:

Torque settings
