Installing after renewing B-pillar

Special tools and workshop equipment required

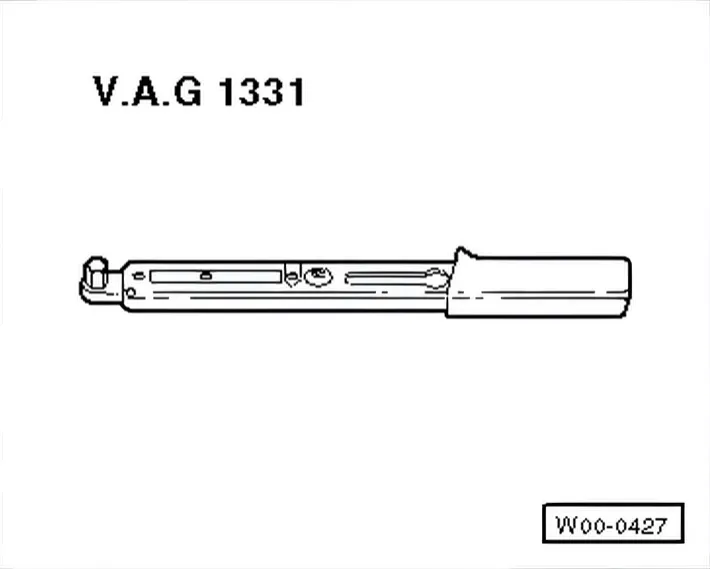

• Torque wrench - V.A.G 1331-

Installation is carried out in the reverse sequence of removal.

• Insert door and tighten bolts -2, 5, 7 and 8- to 20 Nm and at 90°.

• Always renew bolts.

• Observe front door gaps ⇒ Body Repairs; Rep. gr. 00; Technical data; Body panel gaps/shut lines; Body - front.
