Removing and installing door handle

Removing

• Remove cap ⇒ 2.10 Removing and installing cap.

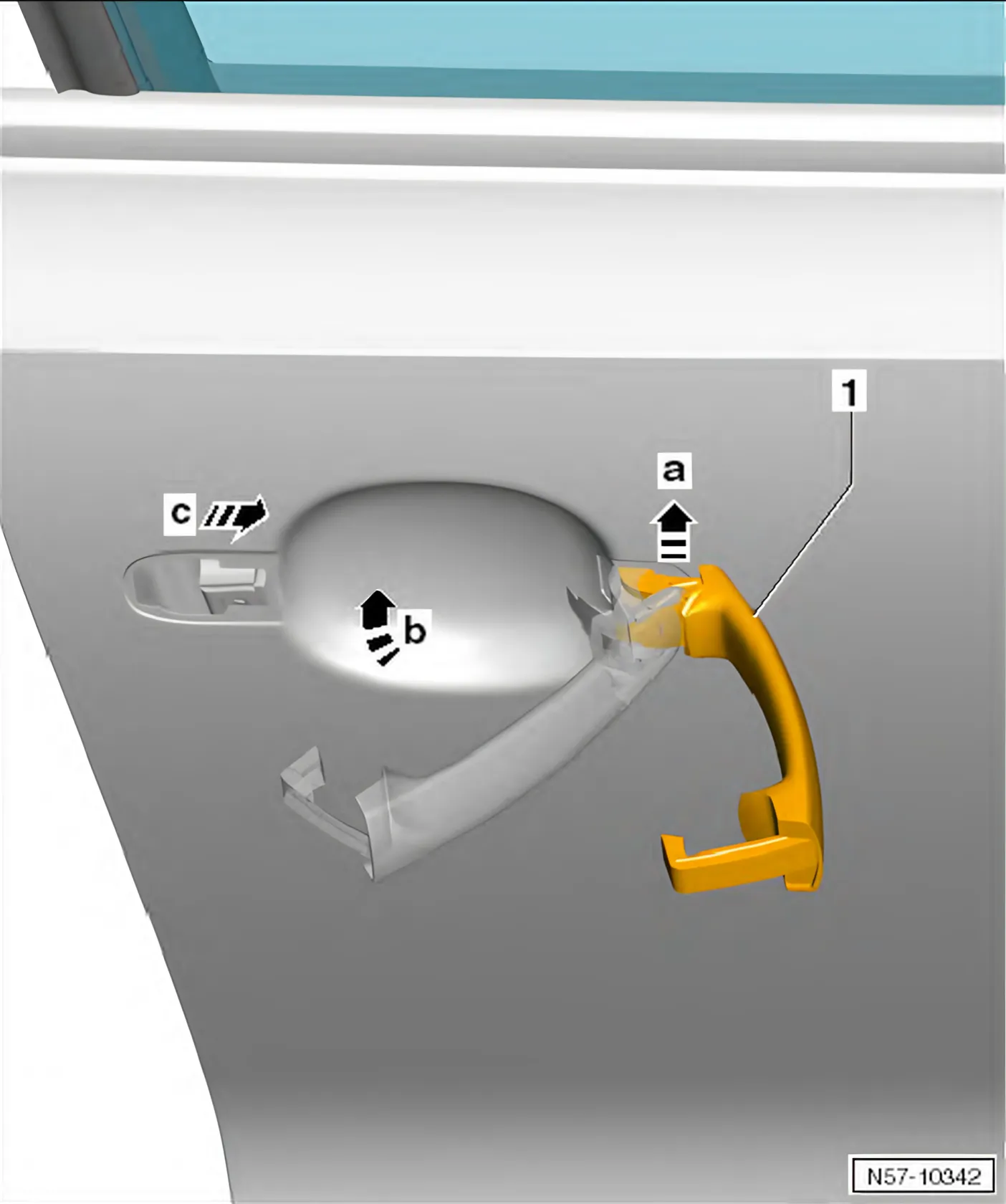

• Pull out door handle -1- backwards slightly -arrow a- from support for mounting bracket.
• Swivel door handle in direction of -arrow b-.
• Remove door handle from mounting bracket at a right angle -arrow c-.

Installing

• Insert door handle -1- at right angle -arrow a- in mounting bracket.
• Swing door handle -1- into door -arrow b-.
• Push door handle forcibly forwards -arrow c- into support in mounting bracket.

Installing cover cap ⇒ 2.10 Removing and installing cap

• It is essential that the function then be checked with the door open.
