Body repairs – exterior · Rear doors, door components · Door components

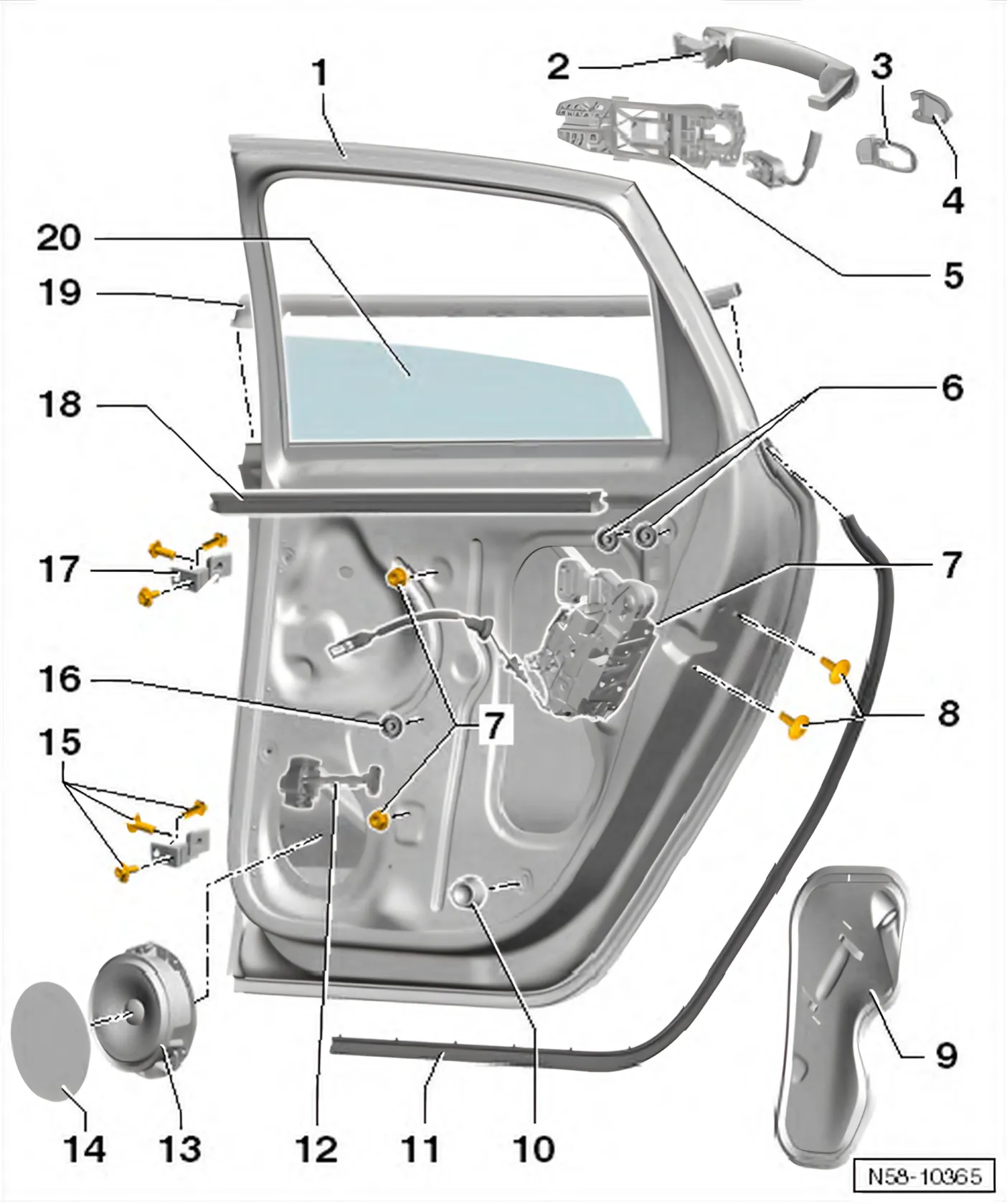

Door components – assembly overview and fastening
- 1 Door
- Removing and installing ⇒ 1.4 Removing and installing door
- Adjusting ⇒ 1.6 Adjusting door
- 2 Door handle
- 3 Carrier
- 4 Cap
- 5 Mounting bracket
- 6 Cap
- 7 Door lock
- Removing and installing ⇒ 2.13 Removing and installing door lock
- 8 Bolt
- Qty. 2
- Specified torque: 18 Nm
- 9 Cover
- Removing and installing
- 10 Buffer stop
- 11 Door joint seal
- Removing and installing ⇒ 1.3 Removing and installing outer door seal
- 12 Door retaining strap
- 13 Loudspeakers
- Riveted into door.
- 14 Cover
- Self-adhesive
- If no speaker is installed.
- 15 Bolt
- For securing hinge.
- 16 Cap
- 17 Door hinge
- Hinge is split.
- 18 Inner window slot seal
- Removing and installing ⇒ 2.15 Removing and installing inner window slot seal
- 19 Outer window slot seal
- Removing and installing ⇒ 2.16 Removing and installing outer window slot seal
- 20 Door window
