Body repairs – exterior · Rear doors, door components · Door components

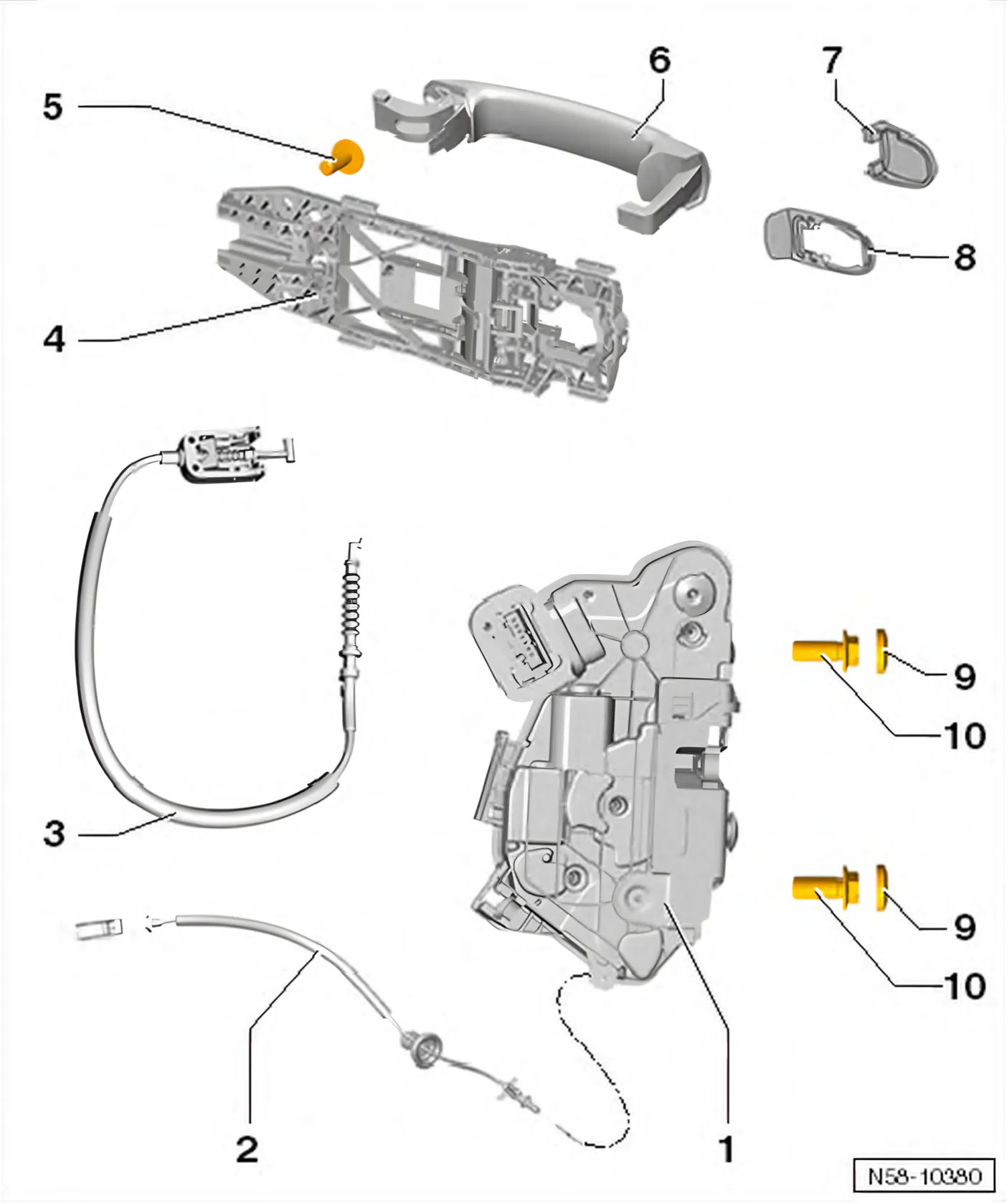

Door handle and door lock – assembly overview and fastening
- 1 Door lock
- Removing and installing ⇒ 2.13 Removing and installing door lock
- 2 Bowden cable
- From interior door handle to lock release.
- With grommet to passage on cover.
- 3 Bowden cable
- From door lock to mounting bracket.
- 4 Mounting bracket
- Removing and installing ⇒ 2.12 Removing and installing door handle bracket
- 5 Bolt
- Specified torque: 1 Nm
- Mounting bracket is loosened from door when this bolt is loosened.
- 6 Door handle
- Removing and installing ⇒ 2.11 Removing and installing door handle
- 7 Cap
- Removing and installing ⇒ 2.10 Removing and installing cap
- 8 Carrier
- 9 Cover
- Not installed in all countries.
- 10 Bolt
- Specified torque: 18 Nm
- Qty. 2
