Removing and installing window channel

Removing

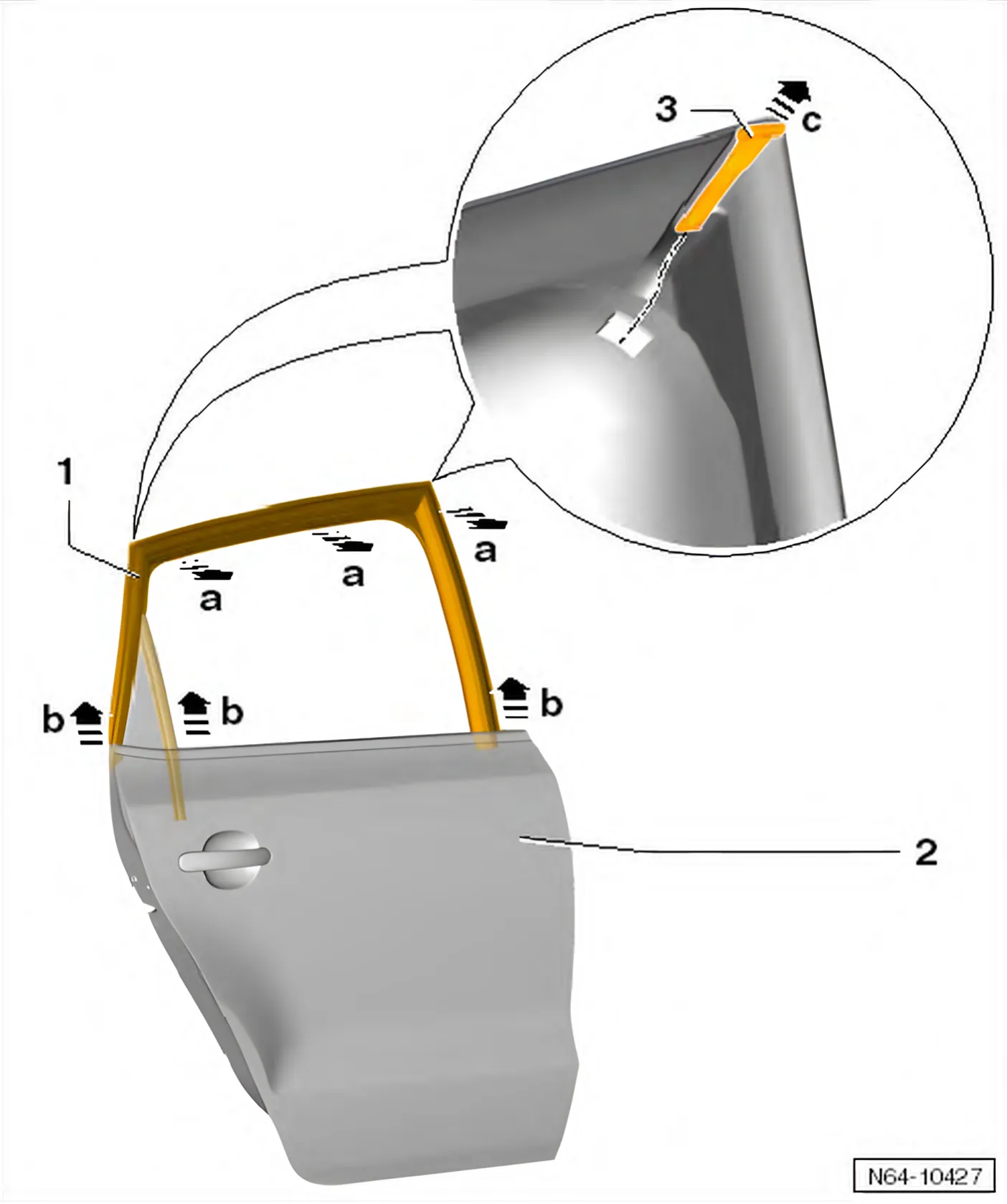

• Peel inner window channel seal -1- off window frame.
• Pull window channel -1- out of mountings -arrows b- of door.
• Pull both clips -3- of seal -1- out of door.
• Pull seal -1- uniformly -arrows a- off door flange.

Installing

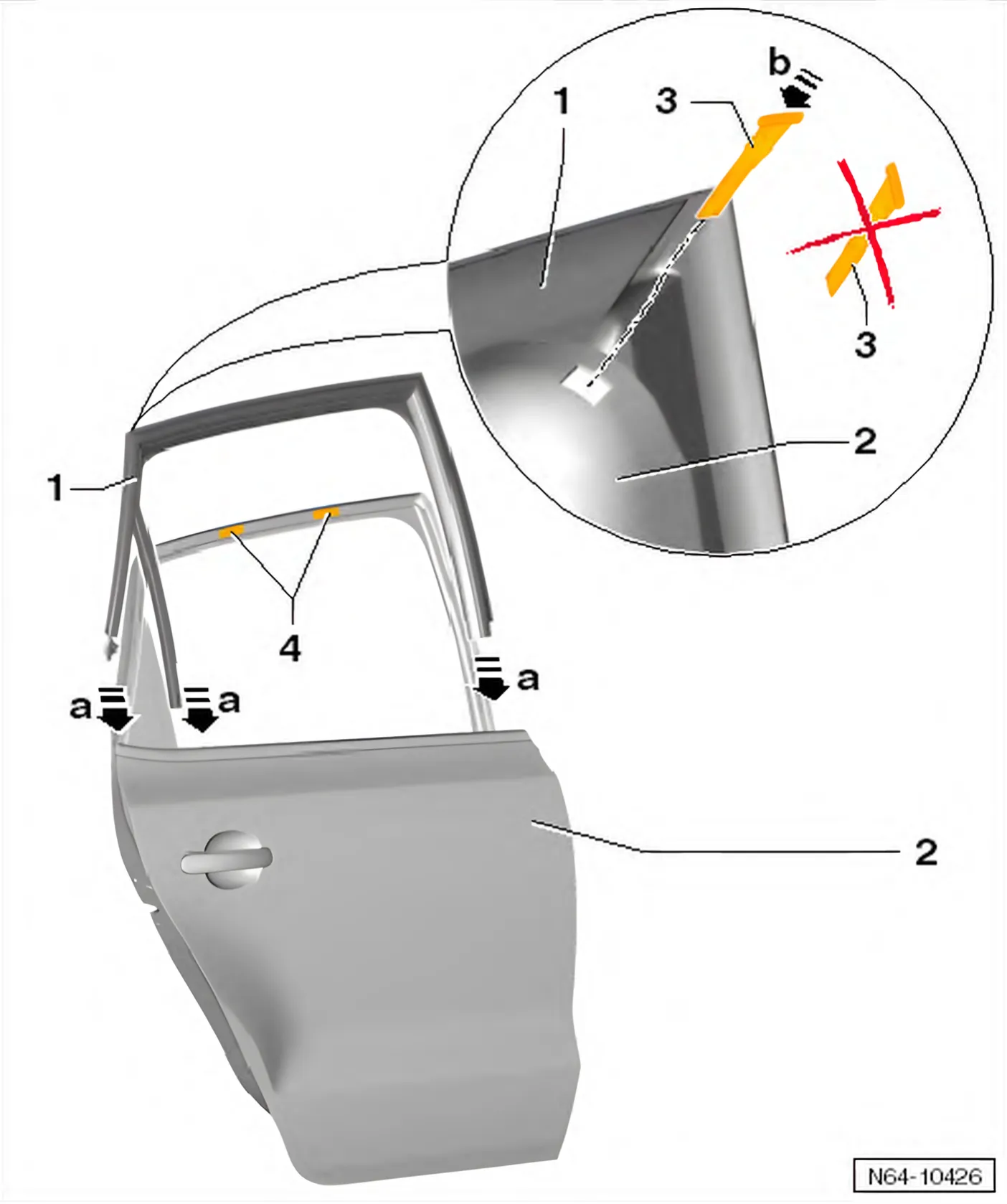

• Openings -4- beneath window channel are masked off with textile adhesive tape.

Adhesive tape dimensions: Height = approx. 10 mm, width = approx. 40 mm. Qty. 2

• Push window channel -1- into mountings -arrows a- uniformly.
• Push window channel -1- evenly all around onto the door flange -2-.
• Fold inner sealing lip of window channel onto door flange from the inside.
• Push in retaining clip -3- -arrow b-.
