Renewing front bonded rubber bush for lower suspension link

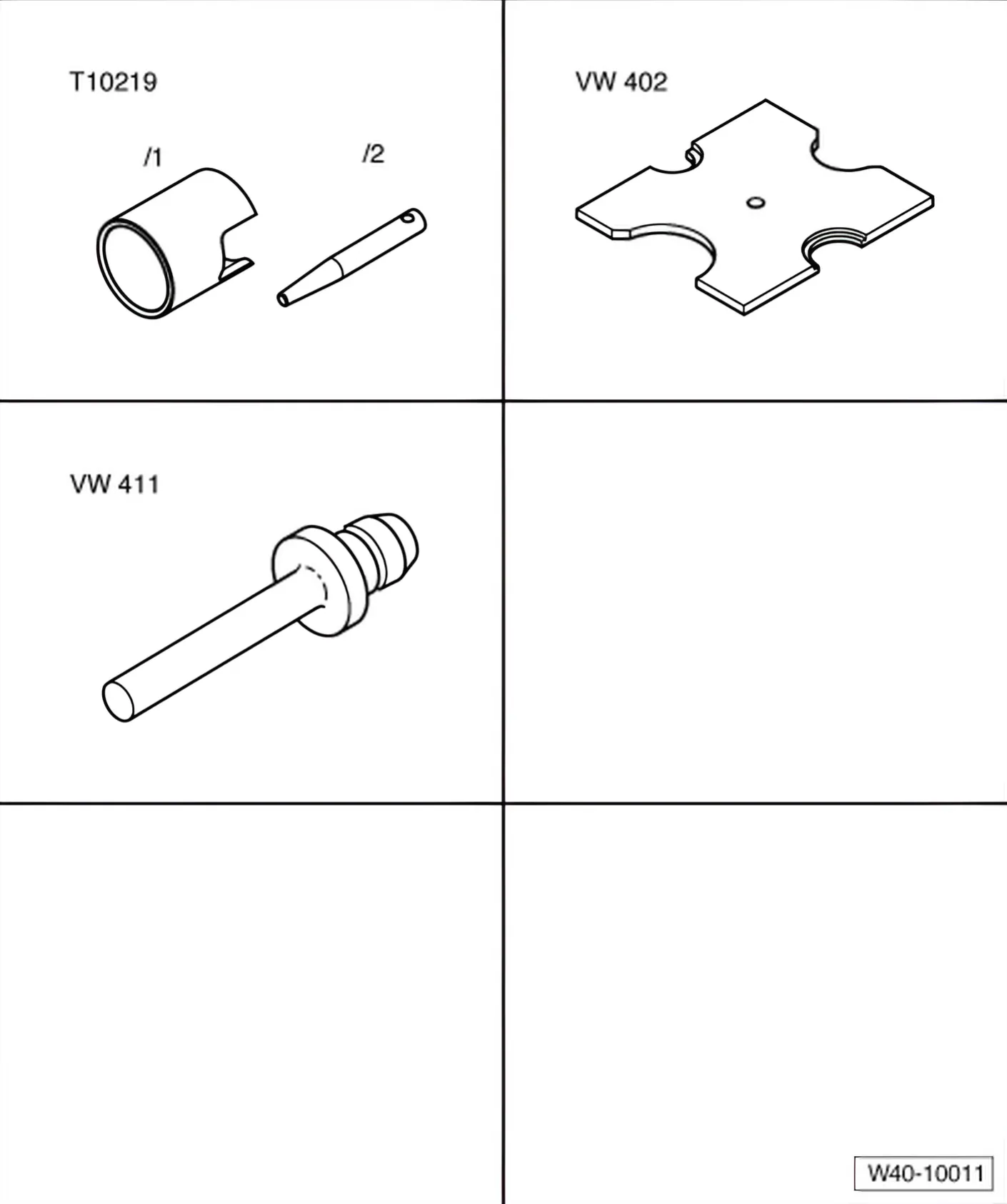

Special tools and workshop equipment required

• Drift - T10219/2-
• Thrust plate - VW 402-
• Press tool - VW 411-

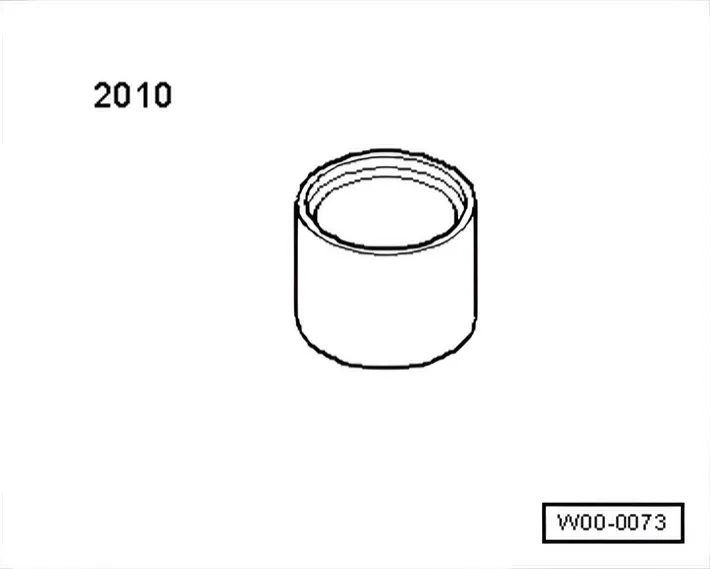

• Tube - 2010-

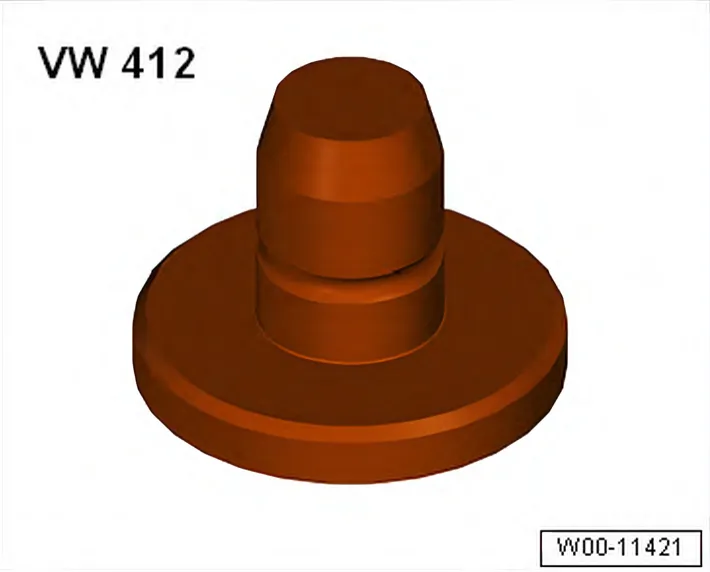

• Press tool - VW 412-

• Remove suspension link ⇒ 4.1 Removing and installing lower suspension link.

Pressing out bonded rubber bush

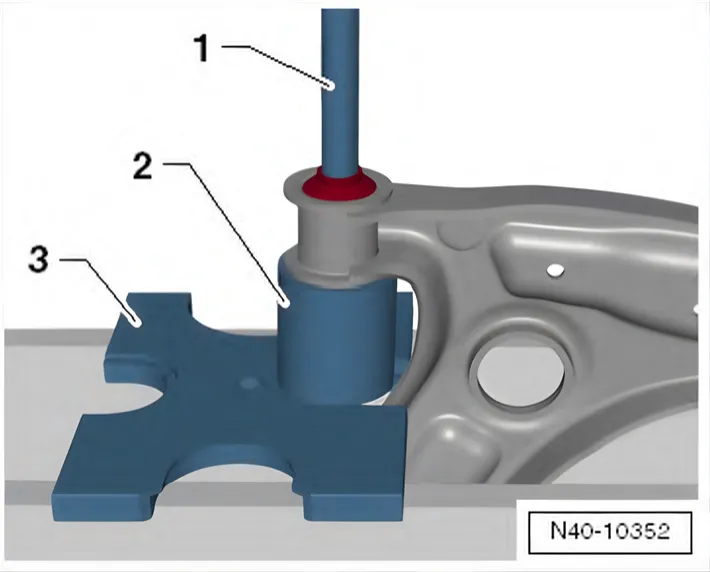

• Press out bonded rubber bush as illustrated.

• 1 Press tool - VW 411-
• 2 Tube - 2010- (Larger internal diameter of wheel bearing

  faces suspension link)

• 3 Pressure plate - VW 402-

Pressing in bonded rubber bush

• Moisten outer surface of bonded rubber bush with assembly oil - G 294 421 A1-.

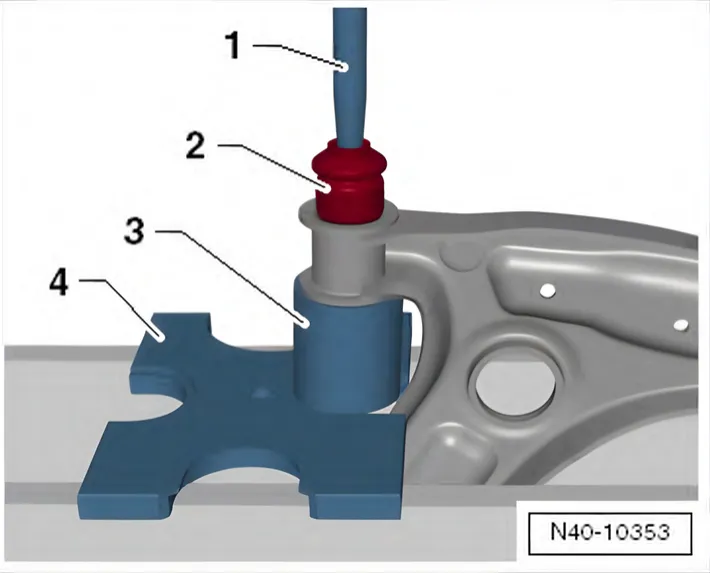

• Press in bonded rubber bush as illustrated.

• 1 Pin - T10219/2-
• 2 Bonded rubber bush
• 3 Tube - 2010- (Larger internal diameter of wheel bearing

  faces suspension link)

• 4 Pressure plate - VW 402-

• Press in bonded rubber bush until core of bush -1- and hole in suspension link -2- are flush.

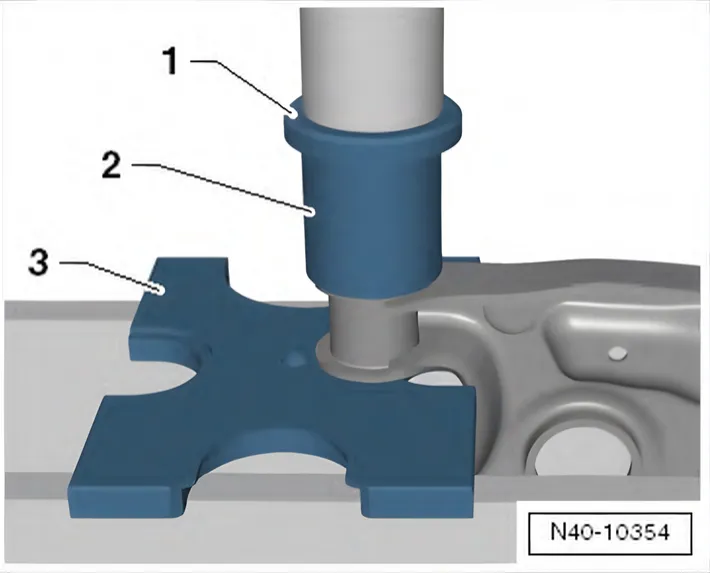

• Press bush back slightly in the suspension link.

• 1 Press tool - VW 412-
• 2 Tube - 2010- (Larger internal diameter of wheel bearing

  faces suspension link)

• 3 Pressure plate - VW 402-

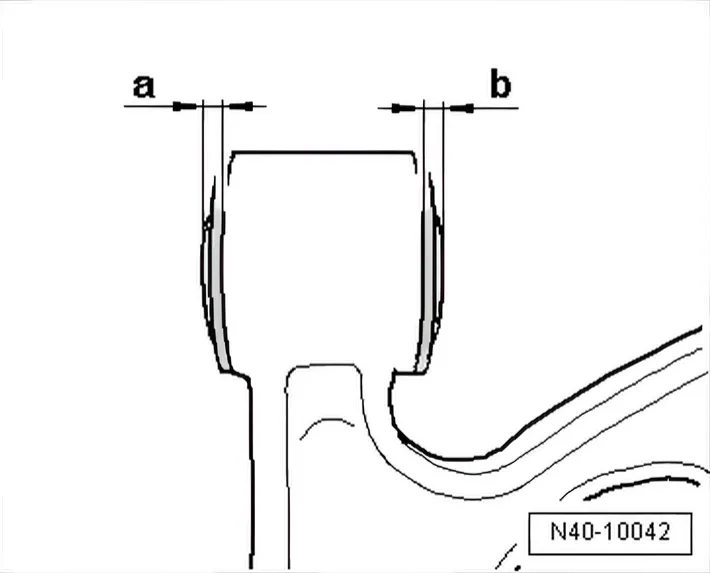

The dimensions -a- and -b- must be the same.

• Install suspension link, vehicles with manual gearbox ⇒ 4.1.1 Removing and installing lower suspension link, vehicles with manual gearbox.
• 6C 2014–2017 Install suspension link, vehicles with automatic or dual clutch gearbox ⇒ 4.1.2 Removing and installing lower suspension link, vehicles with automatic or dual clutch gearbox.
