Overview - drive shaft

6R 2009–2014

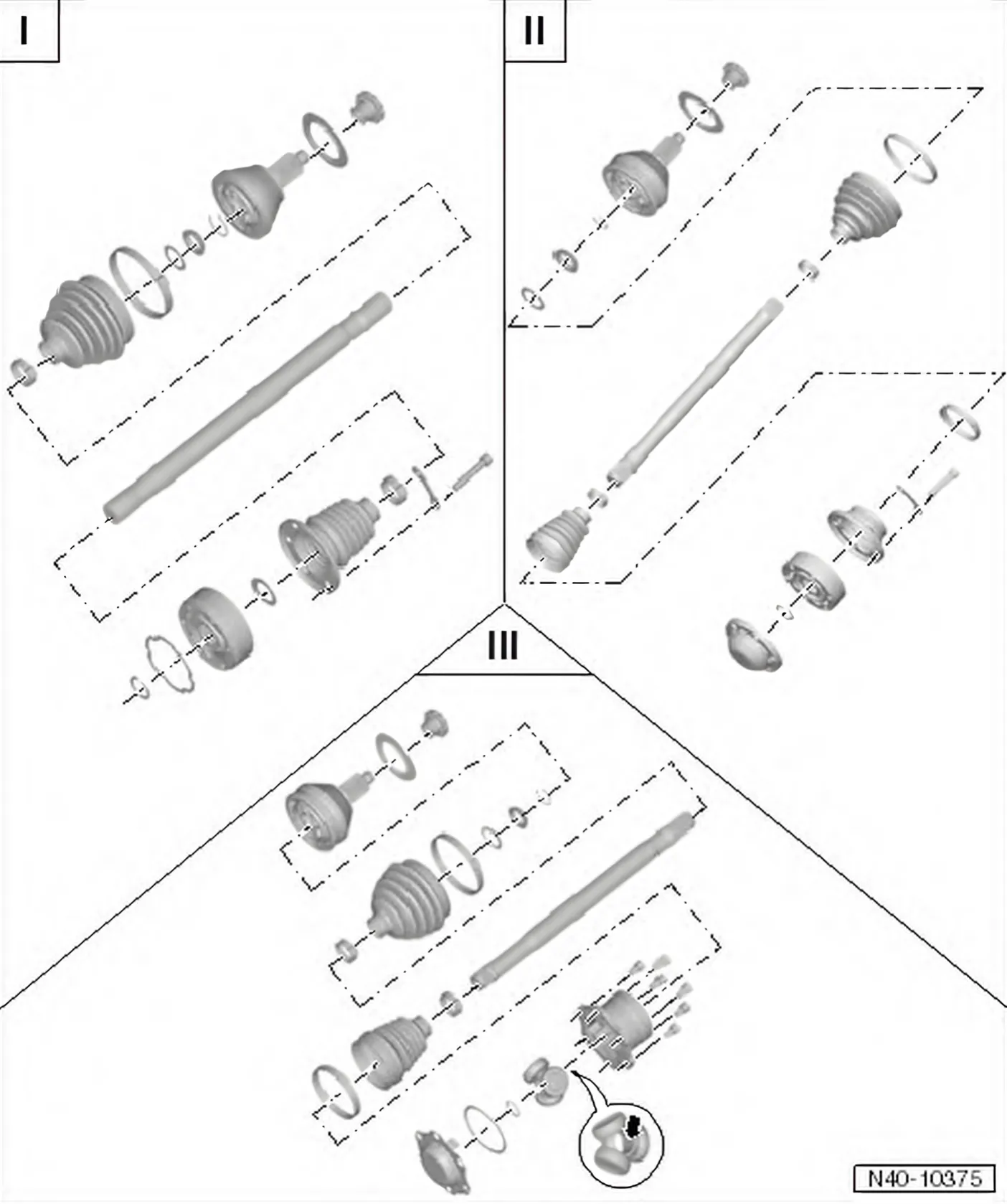

I - Assembly overview: drive shaft with VL90 or VL100 constant velocity joint ⇒ 8 Assembly overview: drive shaft with VL90 or VL100 constant velocity joint

II - Assembly overview: drive shaft with VL107 constant velocity joint ⇒ 9 Assembly overview: drive shaft with VL107 constant velocity joint

III - Assembly overview: drive shaft with triple roller joint AAR 2000/108 (bolted-on) ⇒ 10 Assembly overview: drive shaft with triple roller joint AAR 2000/108

Distinguishing between drive shafts when installed

7.1 Heat shields for drive shafts

Front-wheel drive:

6C 2014–2017

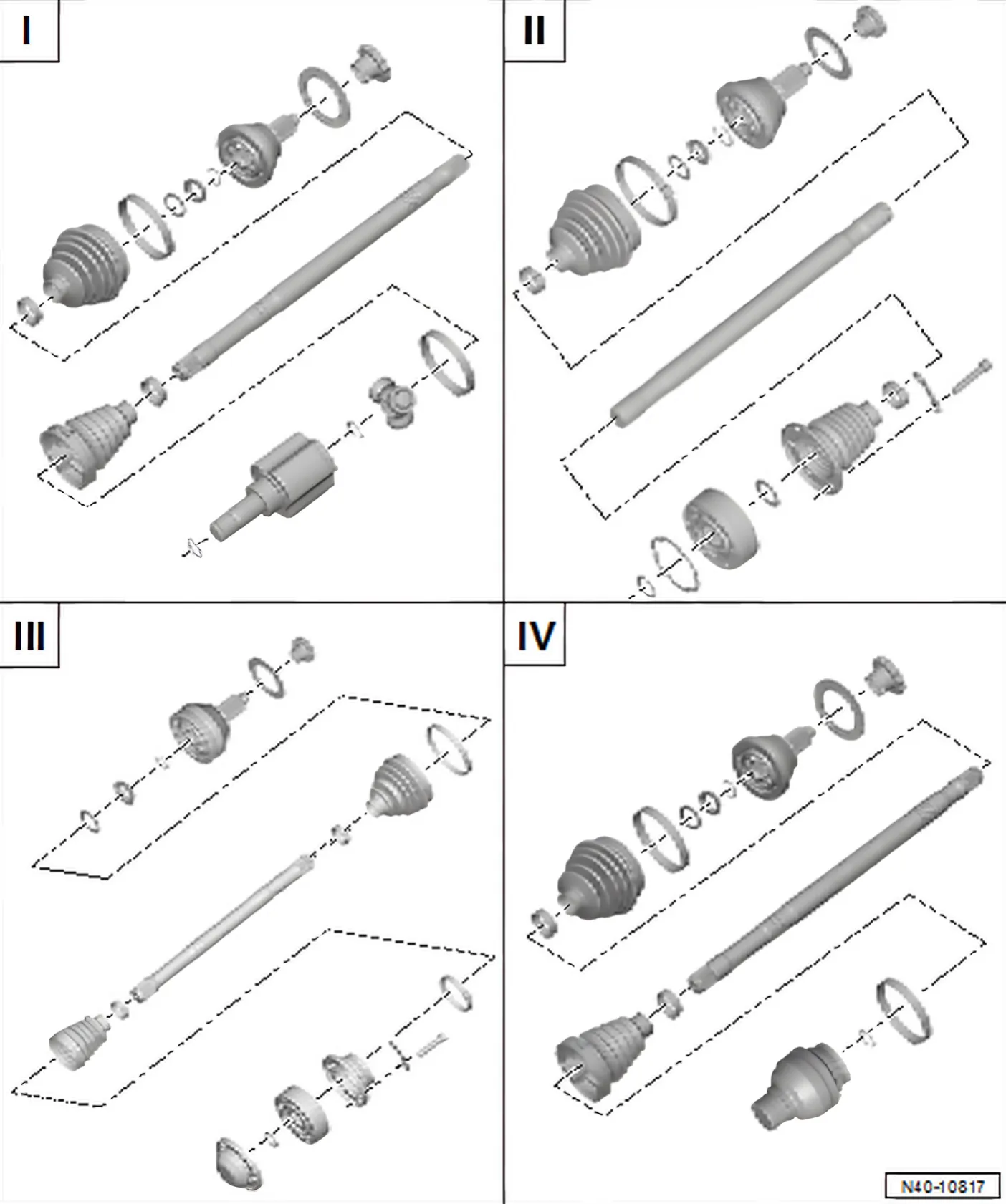

I - ⇒ 6.2.1 Assembly overview – drive shaft, joint body TS1800

II - ⇒ 6.2.2 Assembly overview – drive shaft, constant velocity joints VL90 and VL100

III - ⇒ 6.2.3 Assembly overview – drive shaft, constant velocity joint VL107, threaded connection

IV - ⇒ 6.2.4 Assembly overview – drive shaft, constant velocity joint VL107, plug-in connection

Which drive shaft is in the car

The inner joint tells the construction, and the construction tells which procedure applies:

• Bolted to the gearbox flange shaft with six multi-point bolts per side: M8×48 (40 Nm) is the VL90 / VL100 joint (⇒ 6.2.2); M10×52 (70 Nm), with a cover, is the VL107 joint, threaded connection (⇒ 6.2.3). Both generations; removing and installing ⇒ 6.3.2.
• Plugged into the gearbox, no bolts, held by a retaining ring on the stub: the VL107 joint, plug-in connection (⇒ 6.2.4, removing ⇒ 6.3.3), or the TS1800 tripod joint whose joint body stays in the gearbox (⇒ 6.2.1, ⇒ 6.3.1, the joint body ⇒ 6.4). Polo 6C with the 1.0 engines only.
• 6-speed automatic gearbox 09G: a plug-in joint of its own (6QD 498 103), on the 1.6 MPI of both generations; neither manual describes it.
• Triple roller joint AAR 2000/108, bolted with M10×23: in the 6R manual only, and none of the model year 2014 cards below has it, so the parts catalogue by chassis number decides; ⇒ assembly overview, ⇒ removing and installing.
• On the car: the inner joint diameter is 90 / 100 / 107 / 108 mm; a cover between the inner joint and the flange only at VL107 and AAR 2000.

Part numbers from the parts catalogue, Polo 6R model year 2014 and Polo 6C model year 2016; a part with the suffix X is the factory remanufactured one. The parts, by number: catalog, Front axle, Drive shafts; the gearbox codes by engine: catalog, Gearboxes.
