Removing and installing anti-roll bar
Only what differs from ⇒ 2.3 Removing and installing subframe; everything else is as there.
Removing
Continued for all vehicles
- 6R 2009–2014 Fix position of subframe (all vehicles except for R WRC ⇒ 3.3 Fixing position of subframe (all vehicles except for R WRC) ).

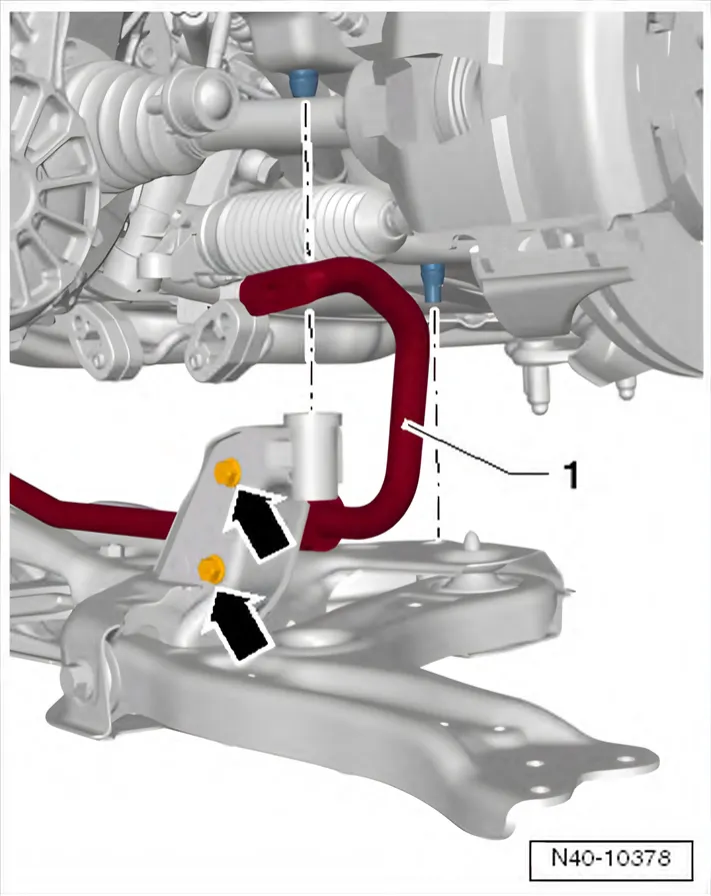

- Lower subframe using engine and gearbox jack - V.A.G 1383 A- until anti-roll bar -1- can be guided past drive shafts.
- Unscrew bolts -arrows-.
- Remove anti-roll bar -1- backwards.
Installing anti-roll bar
- Insert anti-roll bar and secure to subframe using clamps.
Specified torques
| Component | Specified torque |
|---|---|
| Anti-roll bar to subframe ♦ Use new bolts. | 20 Nm +90° |
| 6R 2009–2014 Steering box to subframe ♦ Use new bolts. | 50 Nm +90° |
| 6C 2014–2017 Steering box to subframe ♦ Use new bolts. | 50 Nm +180° |
| Coupling rod to anti-roll bar | 40 Nm |
