Running gear, axles, steering · Front suspension · Subframe
Removing and installing subframe
Special tools and workshop equipment required
- Torque wrench - V.A.G 1331-

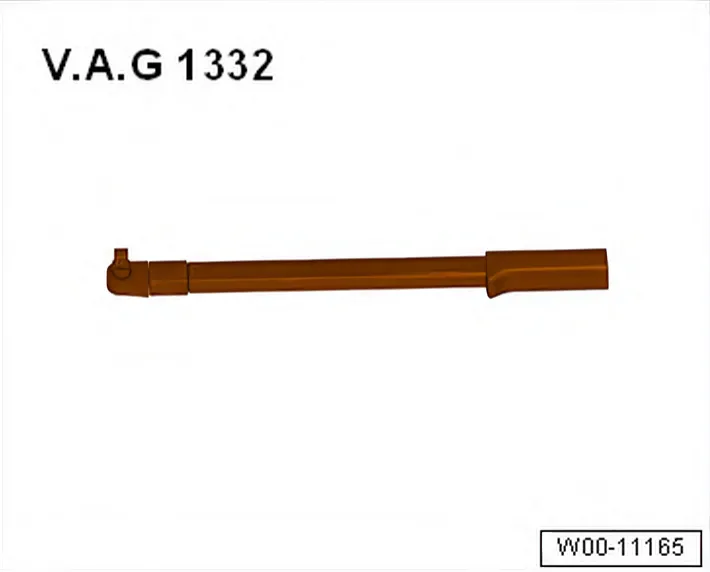

- Torque wrench - V.A.G 1332-
Removing
- Remove front wheels.
- Remove noise insulation.

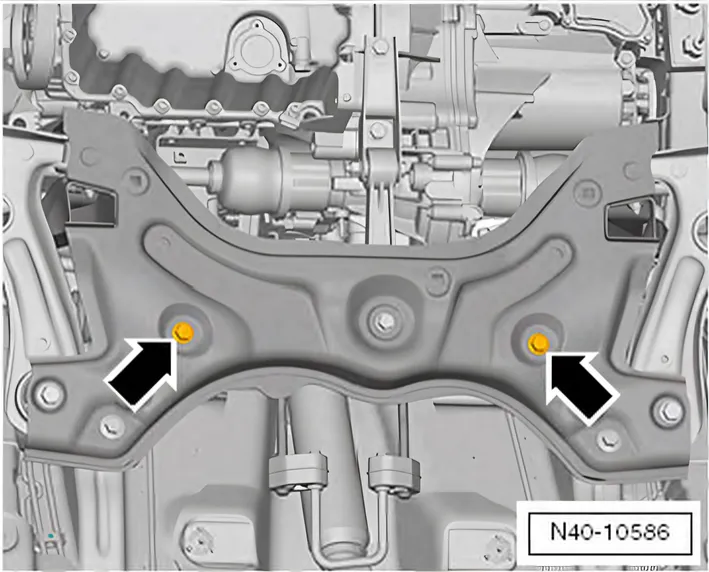

- Remove nuts -arrows-

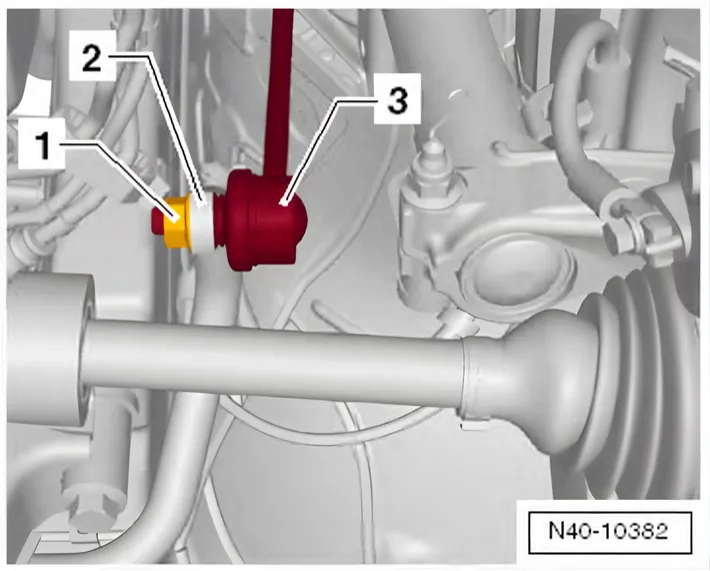

- Remove hexagon nut -1- from coupling rod (left and right sides).
- Pull coupling rod -3- out of anti-roll bar -2- on left and right sides.
- Turn anti-roll bar upwards.
Vehicles with exhaust pipe beneath subframe
- Remove front exhaust pipe ⇒ Rep. gr. 26; Exhaust pipes and silencers; Removing and installing front exhaust pipe.
Vehicles with exhaust pipe above subframe
- Pull retaining rings for exhaust pipe from subframe.
Continued for all vehicles

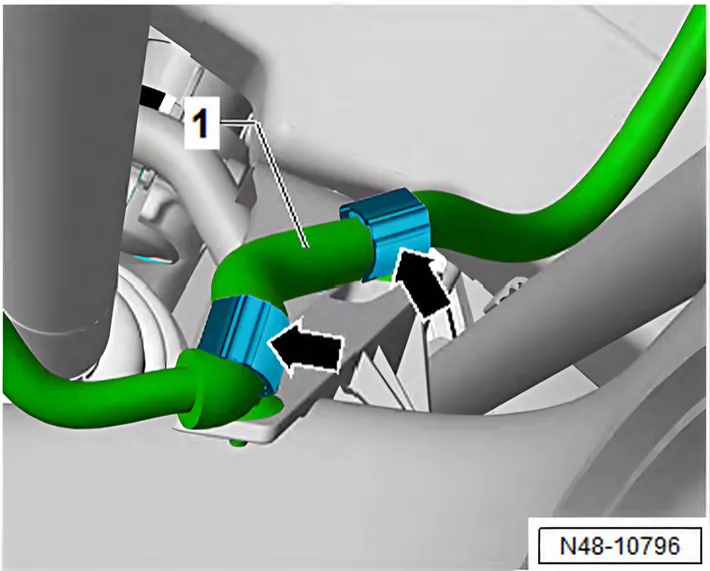

- Open clips -arrows- of retainer on subframe.
- Remove cable -1-.

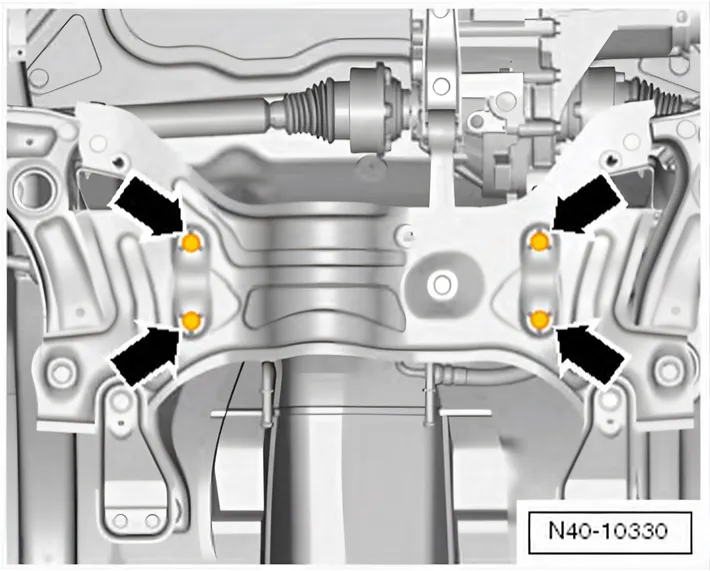

- Unbolt steering rack from subframe -arrows- and tie up with wire (or similar).
- Fix position of subframe ⇒ 2.2 Fixing position of subframe.
- Lower subframe using engine and gearbox jack - V.A.G 1383 A-.
Installing
- Secure subframe ⇒ 2.2 Fixing position of subframe.
- 6R 2009–2014 Bolt on subframe (R WRC ⇒ 3.4 Fixing position of subframe (R WRC) ).
Continue installation in reverse order of removal.
- Install wheels and tighten bolts or nuts ⇒ 1.5 Specified torques for wheel bolts.
6C 2014–2017 If the steering wheel is found to be off centre during the road test even though locating pins - T10096/ T10486/1- were used, check wheel alignment. In this case the wheel alignment test results must be archived in the vehicle files.
Specified torques
| Component | Specified torque |
|---|---|

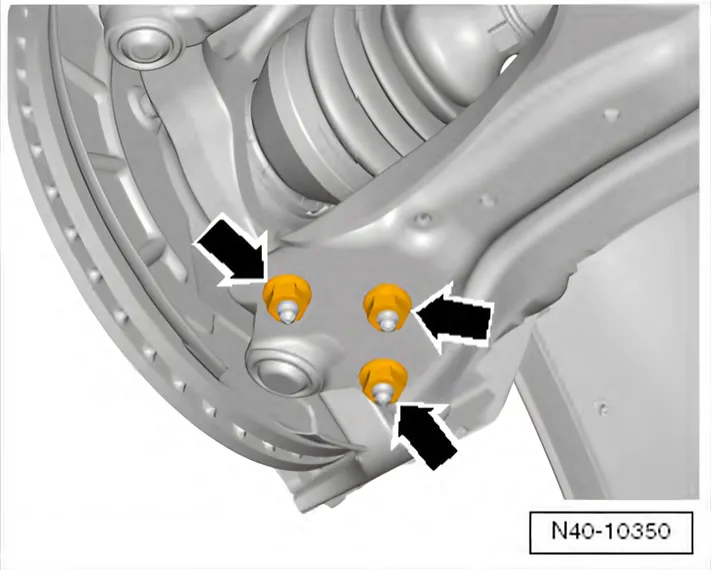

| 6R 2009–2014 Swivel joint to suspension link ♦ Use new nuts. | 100 Nm |
| 6C 2014–2017 Swivel joint to suspension link ♦ Use new nuts. | 40 Nm +45° |
| 6R 2009–2014 Steering box to subframe ♦ Use new bolts. | 50 Nm +90° |
| 6C 2014–2017 Steering box to subframe ♦ Use new bolts. | 50 Nm +180° |
| Coupling rod to anti-roll bar | 40 Nm |
The two manuals give different torques for the same swivel joint nuts (N10332002): 100 Nm in the Polo 6R manual, 40 Nm +45° in the Polo 6C manual. Other cars with the same swivel joints differ too: the Audi A1 8X manual gives 100 Nm, the Škoda Fabia II manual 40 Nm +45°.
Different steering racks: the 6R has electro-hydraulic power steering, the 6C electromechanical. The bolts are tightened to different angles.
6C 2014–2017
Removing and installing subframe with steering rack
Only what differs from the procedure above; everything else is as above.
Removing
- Unscrew bolt -arrow- from universal joint -1- and pull off universal joint in -direction of arrow-.
- Loosen nut -1- on track rod end -2- but do not remove completely.

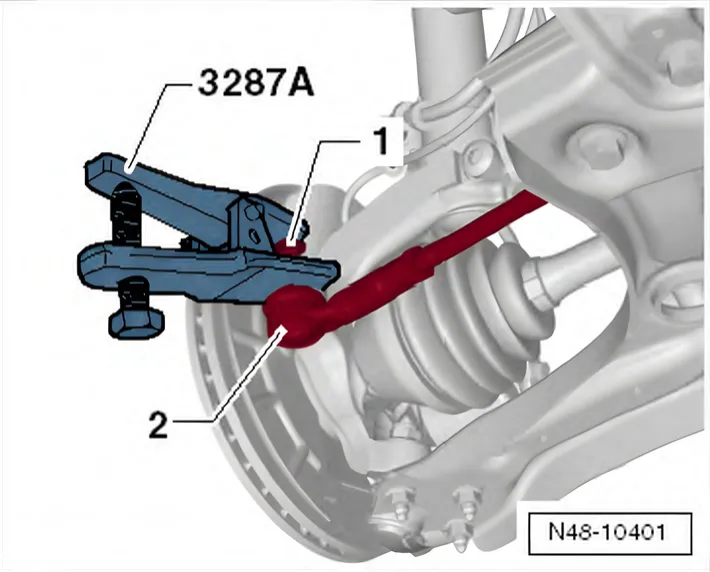

- Press track rod ball joint -2- off steering arm.
Specified torques
| Component | Specified torque |
|---|---|
| Subframe to body ♦ Use new bolts. | 70 Nm +90° |
| Support to body ♦ Use new bolts. | 20 Nm +90° |
| Track rod ball joint to wheel bearing housing ♦ Use a new nut. | 20 Nm +90° |
| Coupling rod to anti-roll bar ♦ Use new nuts. | 40 Nm |
