Body repairs – exterior · Front doors, door components, central locking · Door components

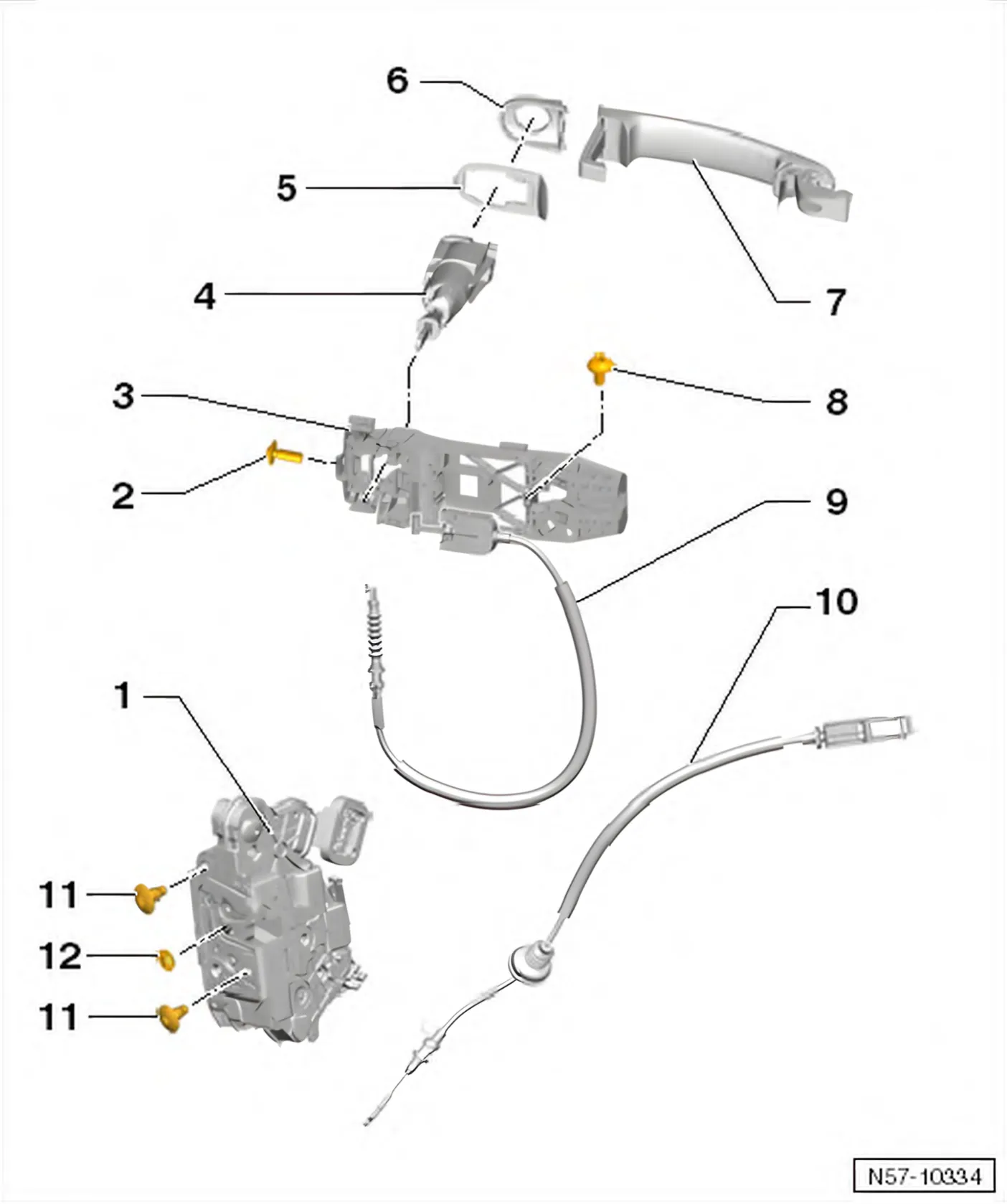

Door handle and door lock – assembly overview and fastening

1 Door lock
- Removing and installing ⇒ 2.13 Removing and installing door lock
2 Bolt
- For lock cylinder.
- Specified torque: 3.5 Nm
3 Mounting bracket
- Removing and installing ⇒ 2.12 Removing and installing door handle bracket
4 Lock cylinder
- Removing and installing ⇒ 2.9 Removing and installing lock cylinder
- A lock cylinder can only be found in the driver door.
5 Carrier
6 Cap
- Removing and installing with lock cylinder ⇒ 2.8 Removing and installing lock cylinder cover cap.
- Removing and installing without lock cylinder ⇒ 2.10 Removing and installing cap without lock cylinder.
7 Door handle
- Removing and installing ⇒ 2.11 Removing and installing door handle
8 Bolt
- Specified torque: 1.5 Nm
- Mounting bracket is loosened from door when this bolt is loosened.
9 Bowden cable
- From door lock to mounting bracket.
10 Bowden cable
- From interior door handle to lock release.
- With grommet to passage on cover.
11 Bolt
- Specified torque: 20 Nm
- Qty. 2
12 Cap
