Removing and installing cap without lock cylinder

Special tools and workshop equipment required

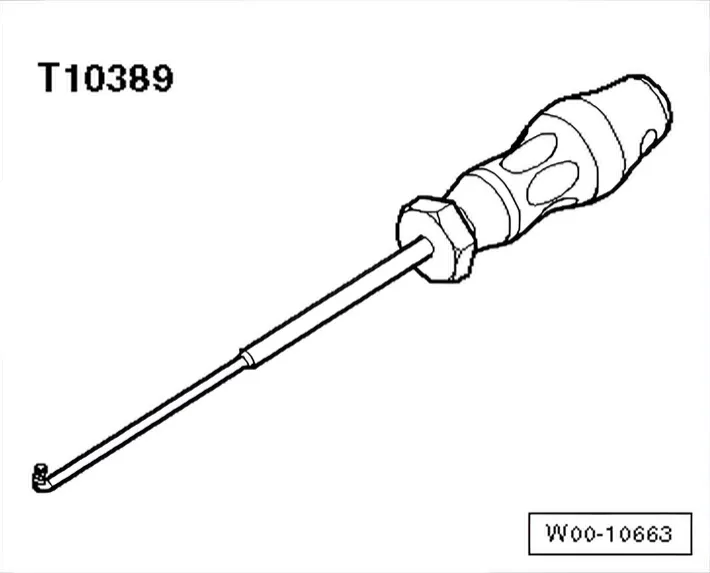

• Assembly tool - T10389-

Removing

• Remove plugs -4-.

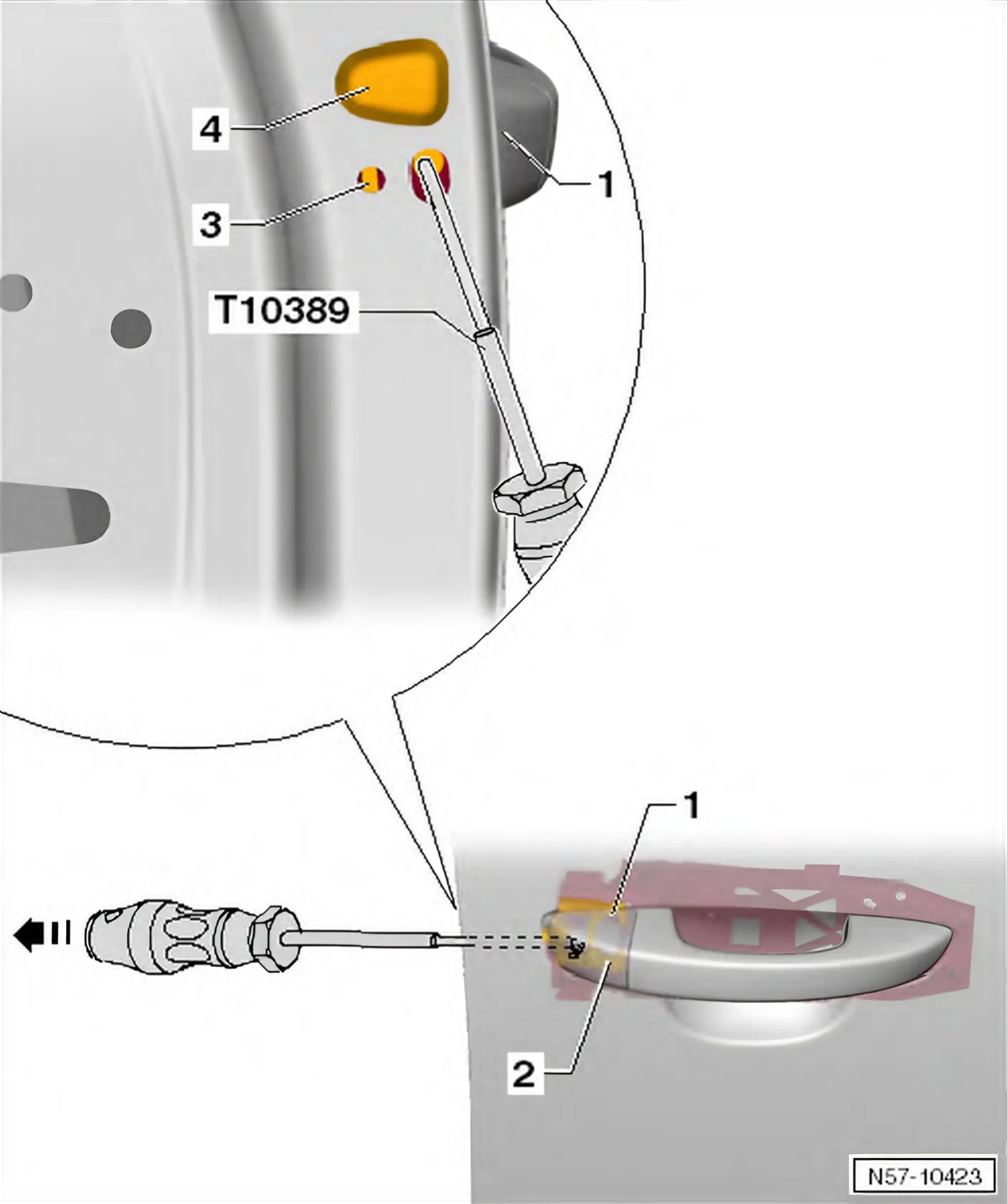

• Insert assembly tool - T10389- around 55 mm into the door behind the locking hook -3- of the mounting bracket.
• Pull assembly tool - T10389- backwards -arrow- until hook is detached.

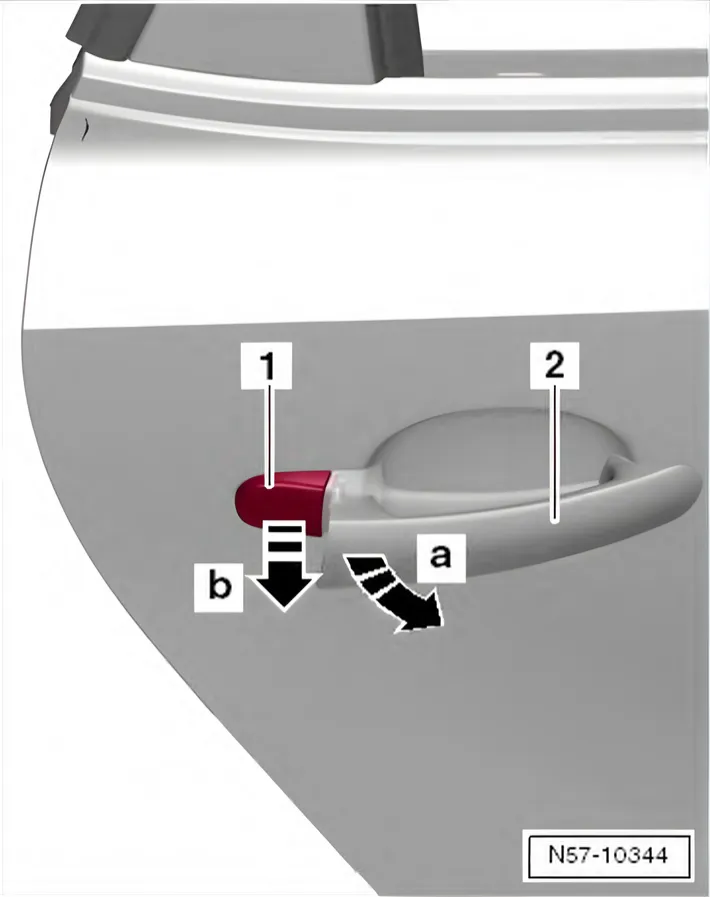

• Pull door handle -2- away from door in -direction of arrow a-.
• Pull cover cap -1- out of door handle bracket -arrow b-.

Installing

• Pull door handle -2- away from door in -direction of arrow a-.
• Push cover cap -1- into mounting bracket -arrow b-.

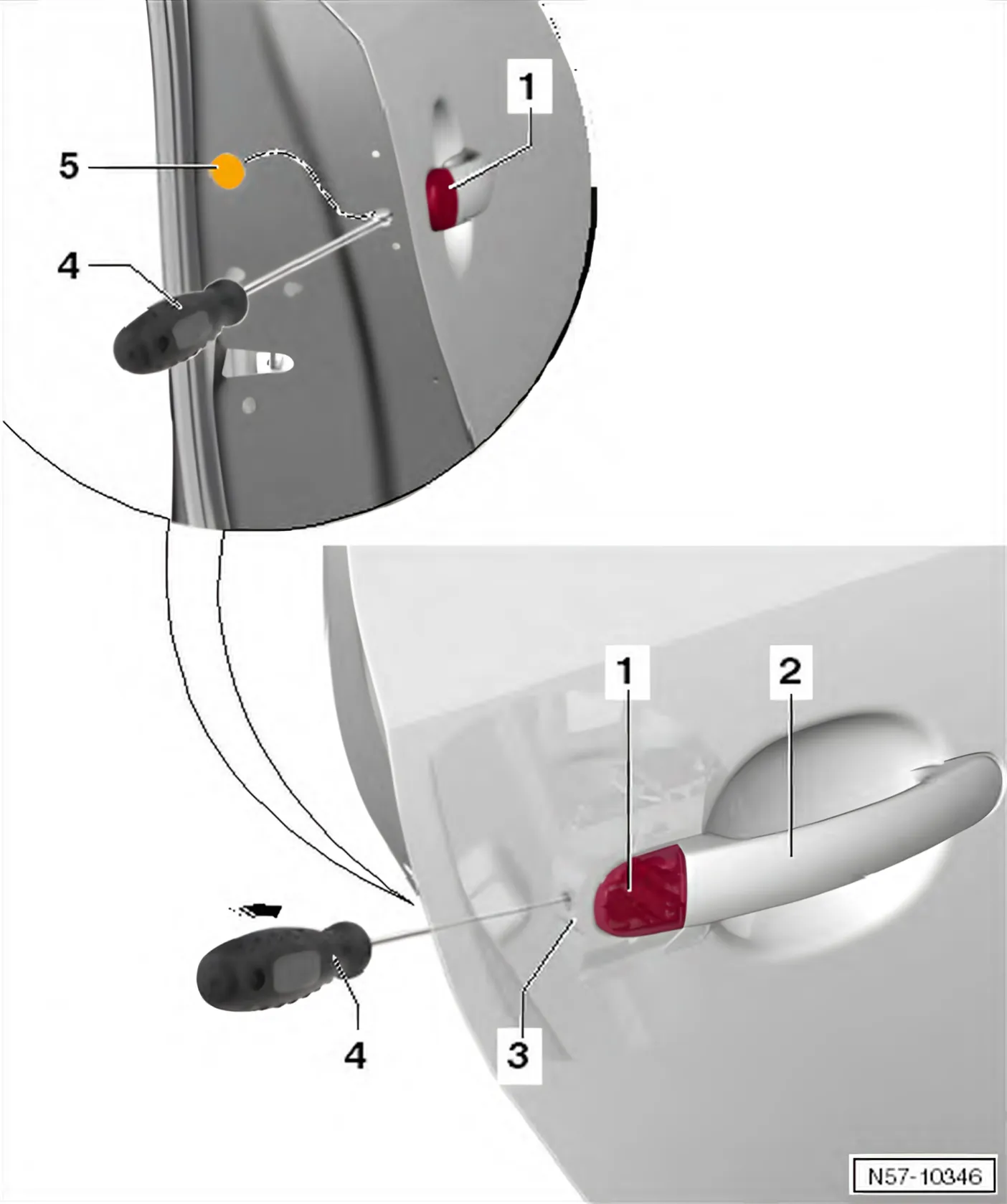

• Insert screwdriver -4- as far as locking hook -3- of mounting bracket.
• Press cap -1- onto door.
• Push in screwdriver -arrow- until hook locks in place.
• Secure plug -5-.
