Body repairs – exterior · Front doors, door components, central locking · Door components
Removing and installing inner door cover
⇒ 2.6.1 Removing and installing inner door cover, 2-door model
⇒ 2.6.2 Removing and installing inner door cover, 4-door model

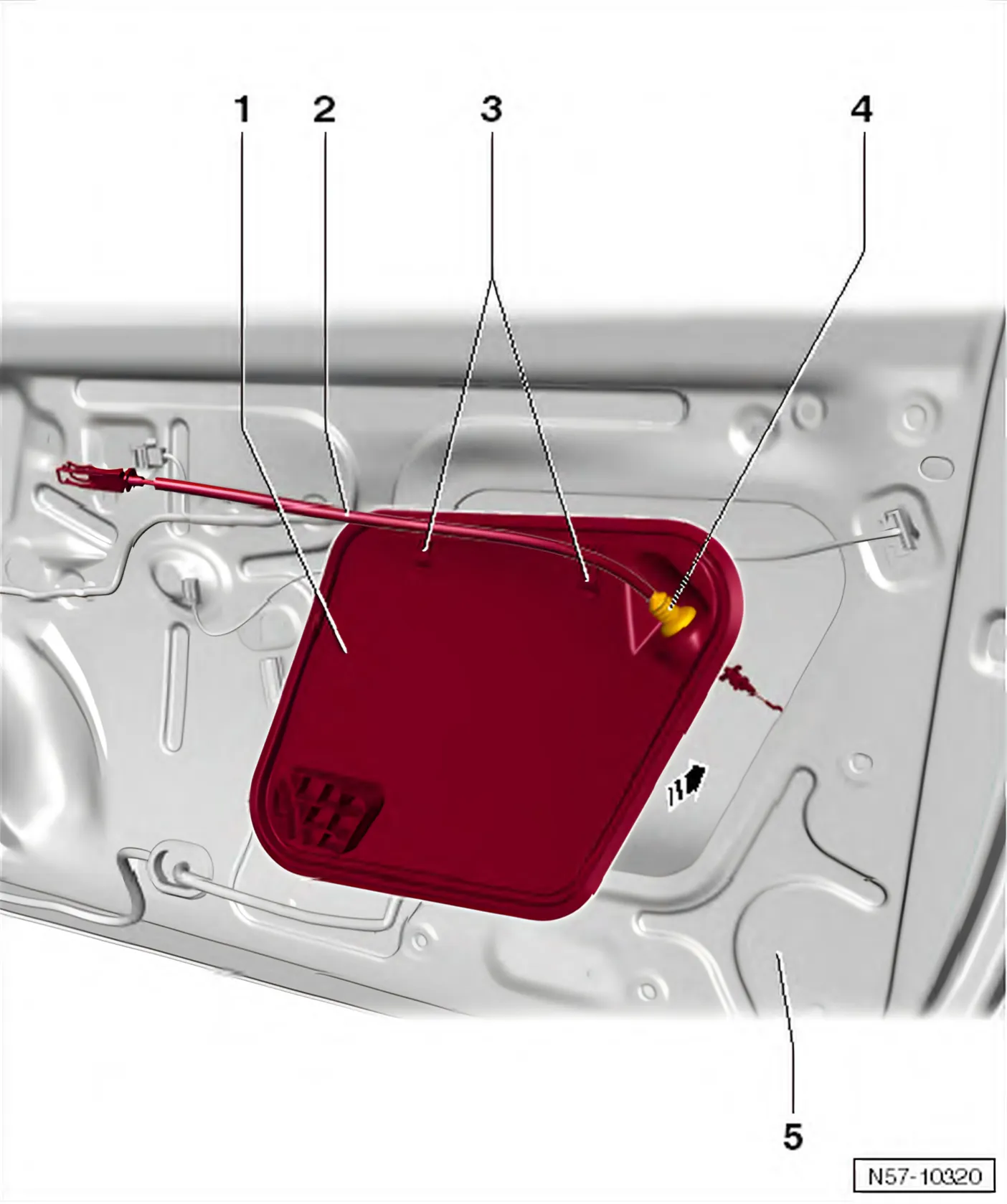

2.6.1 Removing and installing inner door cover, 2-door model
Removing
- Remove front door trim ⇒ General body repairs, interior; Rep. gr. 70; Front door trims; Removing and installing front door trim.
- Lift lower end of cover -1-.
- Pull cover out of door -5- downwards.
Installing
- Pull Bowden cable -2- through cover and secure grommet -4-.
- Push cover -1- upwards -arrow- into door -5-.
- Press lower part of cover into door.

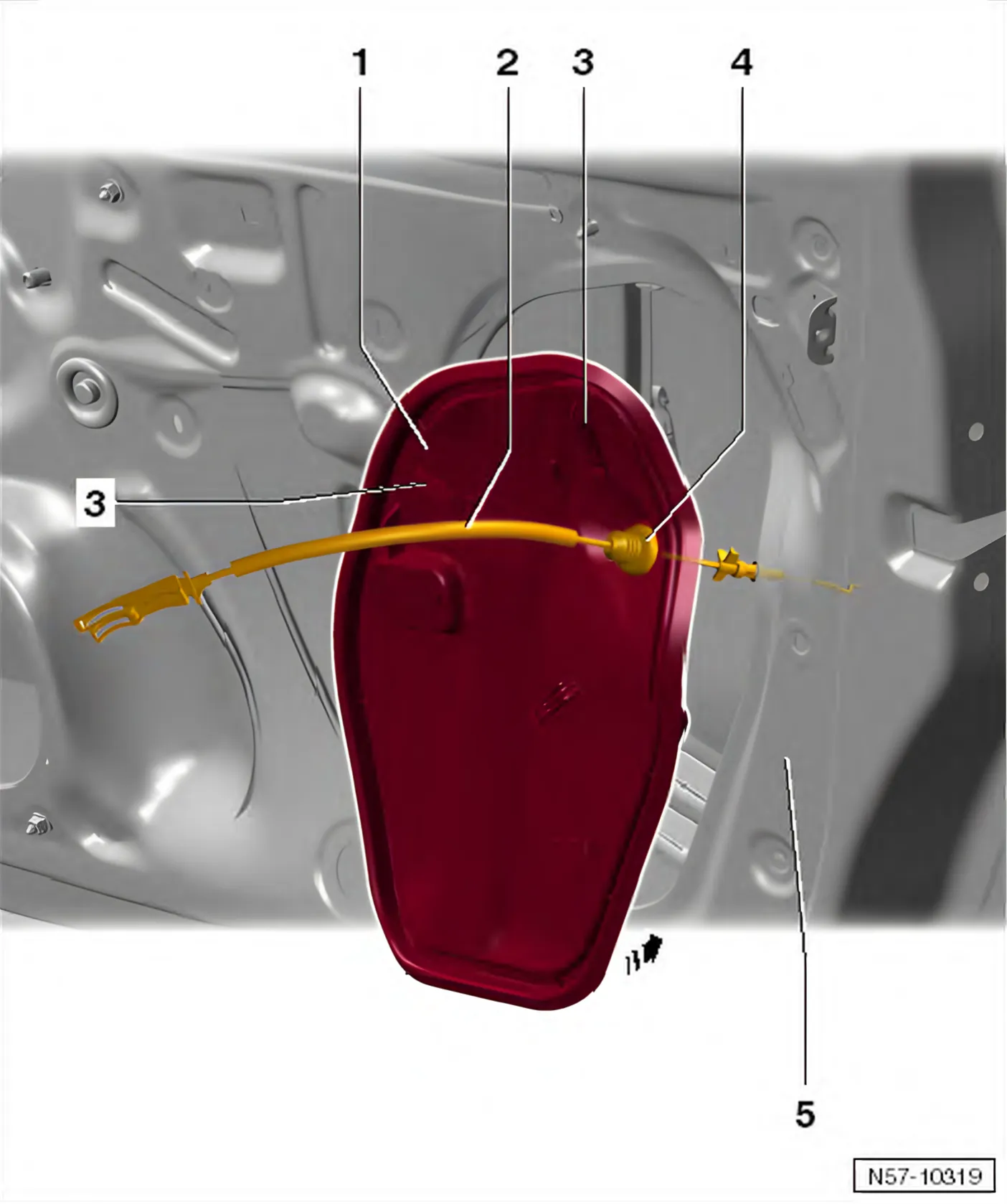

2.6.2 Removing and installing inner door cover, 4-door model
Removing
- Remove front door trim ⇒ General body repairs, interior; Rep. gr. 70; Front door trims; Removing and installing front door trim.
- Lift lower end of cover -1-.
- Pull cover out of door -5- downwards.
Installing
- Pull Bowden cable -2- through cover and secure grommet -4-.
- Insert cover -1- upwards -arrow- into door -5-.
- Press lower part of cover into door.
