1.4 TSI engine (EA211) · Cylinder head, valve gear · Toothed belt drive
Removing and installing toothed belt guard
⇒ 2.3.1 Removing and installing upper toothed belt guard
⇒ 2.3.2 Removing and installing lower toothed belt guard
2.3.1 Removing and installing upper toothed belt guard
Removing:

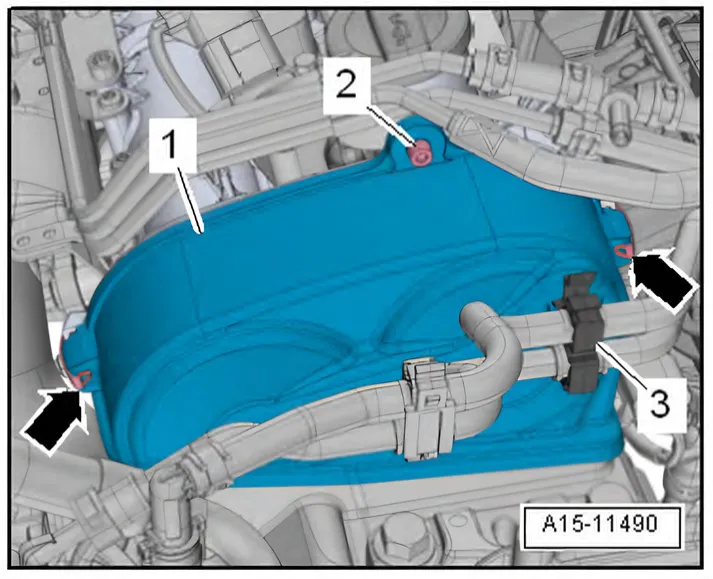

- Detach hoses from retainer -3-.
- Unscrew bolt -2-.
- Release clips -arrows- and remove upper toothed belt guard -1-.
Installing:
Install in reverse order of removal. Observe the following:
Specified torques:
2.3.2 Removing and installing lower toothed belt guard
Removing:
- Remove vibration damper ⇒ 1.5 Removing and installing vibration damper.

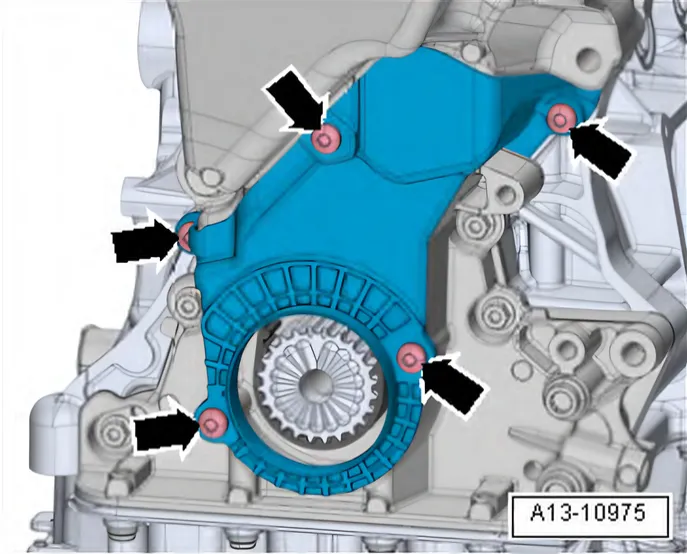

- Unscrew bolts -arrows-.
- Remove lower part of toothed belt guard.
Installing:
Install in reverse order of removal. Observe the following:
- Install vibration damper ⇒ 1.5 Removing and installing vibration damper.
Specified torques:
