1.4 TSI engine (EA211) · Cylinder head, valve gear · Toothed belt drive

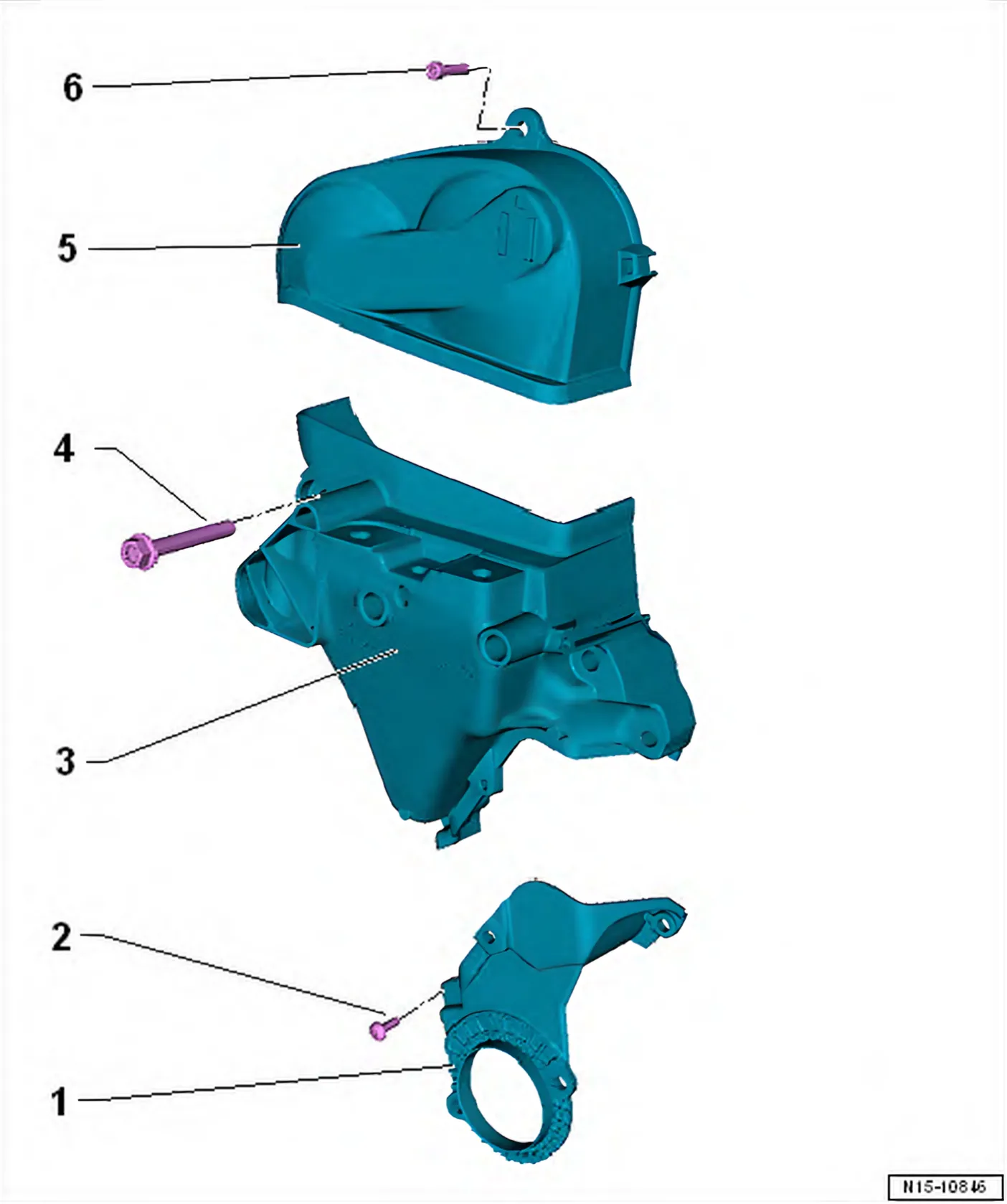

Toothed belt cover – assembly overview and fastening
- 1 Lower toothed belt guard
- 2 Bolt
- 8 Nm
- 3 Engine support
- Specified torque and tightening sequence ⇒ 2.1 Assembly overview - assembly mountings
- 4 Bolt
- Specified torque and tightening sequence ⇒ 2.1 Assembly overview - assembly mountings
- 5 Upper toothed belt guard
- 6 Bolt
- 8 Nm
