1.4 TSI engine (EA211) · Cylinder head, valve gear · Valve gear

Removing and installing camshaft control valve 1 - N205-

⇒ 3.5.1 Removing and installing camshaft control valve 1 N205, vehicles with Active Cylinder Management

⇒ 3.5.2 Removing and installing camshaft control valve 1 N205, exhaust side with toothed belt pulley

3.5.1 Removing and installing camshaft control valve 1 - N205-, vehicles with Active Cylinder Management

Removing

  • Release and pull off electrical connector -3-.
  • Unscrew bolt -4- and remove camshaft control valve 1 - N205-.

Installing

Install in reverse order of removal, observing the following:

  • 1 N205-.
  • The O-ring cannot be renewed individually.

Torque settings

3.5.2 Removing and installing camshaft control valve 1 - N205-, exhaust side with toothed belt pulley

Removing

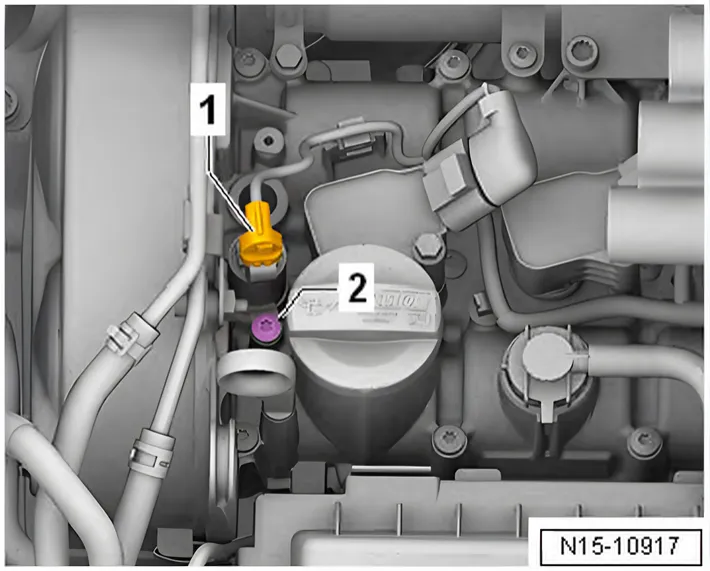

  • Release and pull off electrical connector -1-.
  • Unscrew bolt -2- and remove camshaft control valve 1 - N205-.

Installing

Install in reverse order of removal, observing the following:

  • 1 N205-.
  • The O-ring cannot be renewed individually.

Torque settings
