1.4 TSI engine (EA211) · Cylinder head, valve gear · Cylinder head

Camshaft housing – assembly overview and fastening

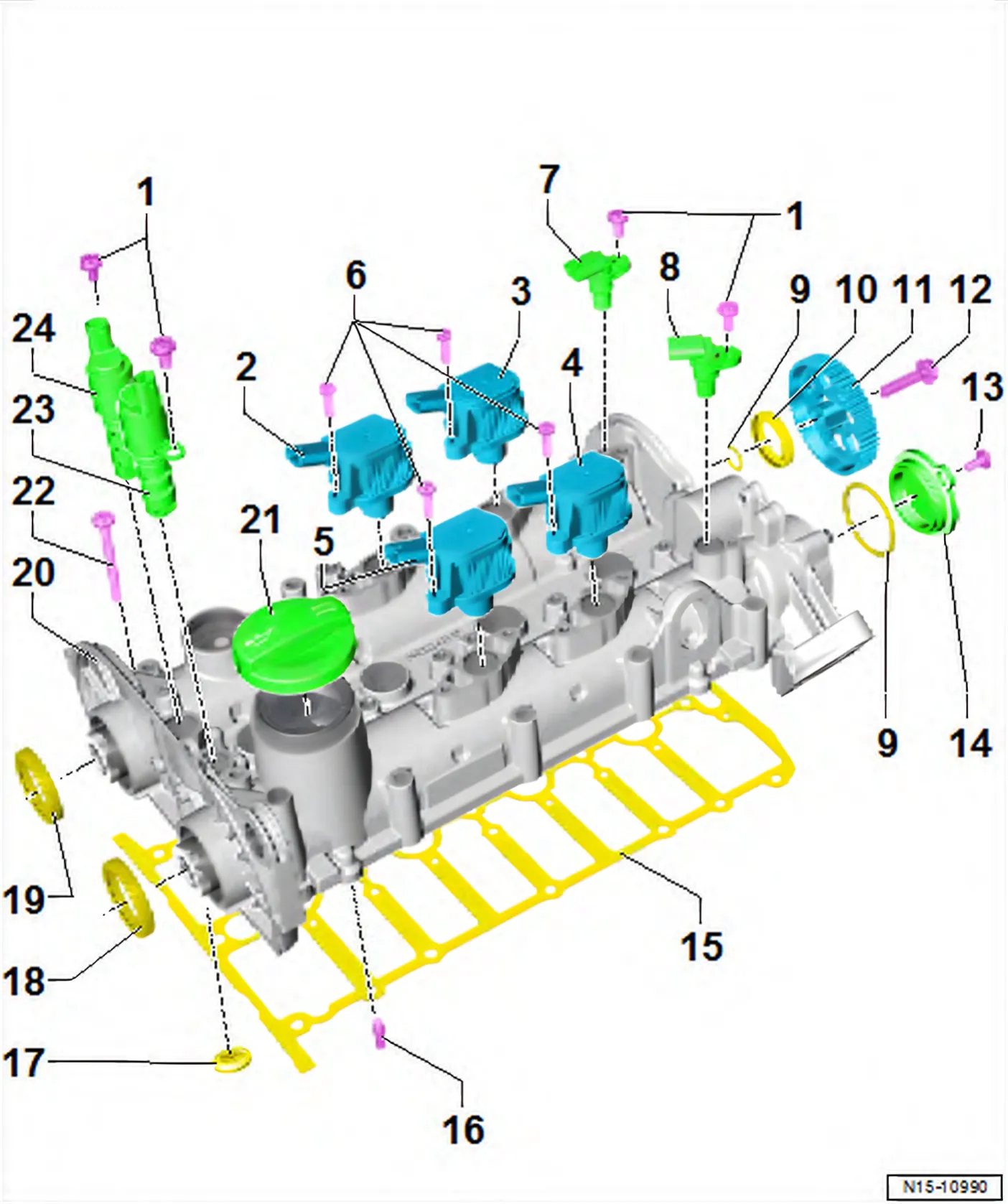

1.2.1 Assembly overview - camshaft housing, vehicles with Active Cylinder Management

1 Bolt
- 8 Nm
2 Exhaust cam actuator for cylinder 2 - N587-
- Removing and installing ⇒ 3.8 Removing and installing cam actuators
3 Exhaust cam actuator for cylinder 3 - N595-
- Removing and installing ⇒ 3.8 Removing and installing cam actuators
4 Inlet cam actuator for cylinder 3 - N591-
- Removing and installing ⇒ 3.8 Removing and installing cam actuators
5 Inlet cam actuator for cylinder 2 - N583-
- Removing and installing ⇒ 3.8 Removing and installing cam actuators
6 Bolts
- 4 Nm
7 Hall sender 3 - G300-
- Removing and installing ⇒ 1.4.2 Removing and installing Hall sender 3 G300
8 Hall sender - G40-
- Removing and installing ⇒ 1.4.1 Removing and installing Hall sender G40
9 O-ring
- Check for damage, and renew if necessary; see ⇒ Electronic parts catalogue (ETKA)
10 Seal
- For exhaust camshaft, gearbox end
- Renewing ⇒ 3.2.5 Removing and installing exhaust camshaft oil seal, gearbox end, vehicles with Active Cylinder Management
11 Crankshaft
- For coolant pump
- Removing and installing ⇒ 2.7 Removing and installing toothed belt pulley for coolant pump
12 Bolt
- Specified torque ⇒ Item 8 (2.1 Assembly overview - coolant pump, thermostat)
13 Bolt
- 8 Nm
14 Cap
15 Seal
- Renew
16 Dowel pin
17 Seal
- With oil strainer
- Inserted into cylinder head

18 Seal
- For inlet camshaft
- Renewing ⇒ 3.2 Removing and installing camshaft oil seal
19 Seal
- For exhaust camshaft
- Renewing ⇒ 3.2 Removing and installing camshaft oil seal
20 Camshaft case
- Removing and installing ⇒ 1.4 Removing and installing camshaft housing
21 Cap
22 Bolt
- Specified torque and tightening sequence ⇒ 1.2.1 Assembly overview - camshaft housing, vehicles with Active Cylinder Management
23 Inlet camshaft control valve 1 - N205-
- Removing and installing ⇒ 3.5 Removing and installing camshaft control valve 1 N205
- With O-ring
- Check O-ring for damage.
- O-ring cannot be renewed individually; renew together with camshaft control valve 1 - N205- if damaged.
24 Exhaust camshaft control valve 1 - N318-
- Removing and installing ⇒ 3.6 Removing and installing exhaust camshaft control valve 1 N318
- With O-ring
- Check O-ring for damage.
- O-ring cannot be renewed individually; renew together with camshaft control valve 1 - N205- if damaged.

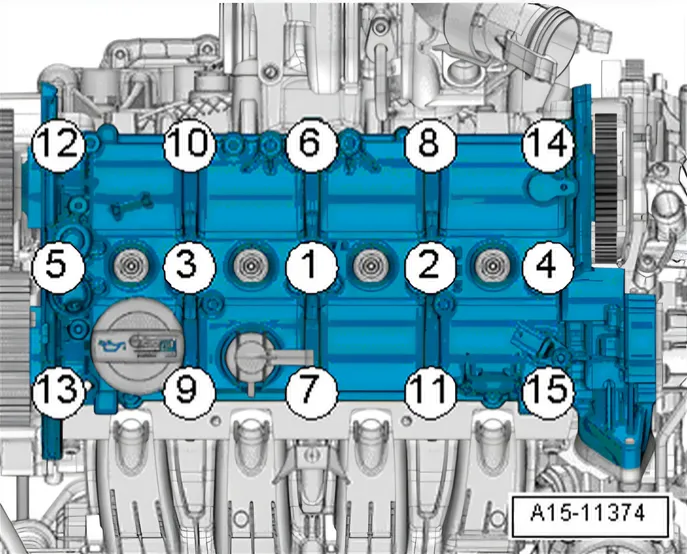

Camshaft housing - specified torque and tightening sequence

Stage	Bolts	Specified torque/turning further angle
1.	-1 … 15-	10 Nm
2.	-1 … 15-	Turn 180° further

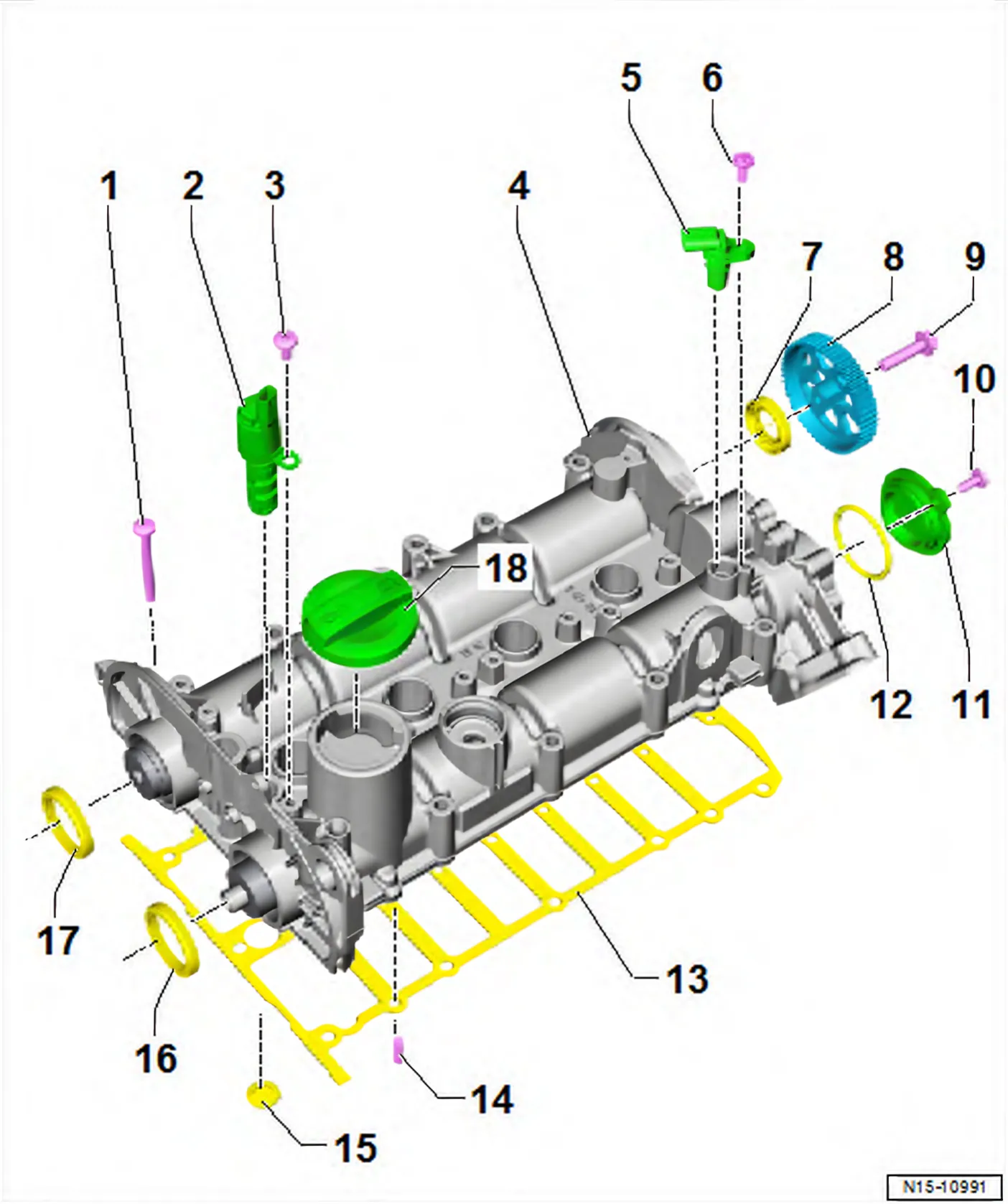

1 Bolt
- Specified torque and tightening sequence ⇒ 1.2.2 Assembly overview - camshaft housing, exhaust side with toothed belt pulley
2 Inlet camshaft control valve
1 N205-
- Removing and installing ⇒ 3.5 Removing and installing camshaft control valve 1 N205
- With O-ring
- Check O-ring for damage.
- O-ring cannot be renewed individually; renew together with camshaft control valve 1 - N205- if damaged.
3 Bolt
- 8 Nm
4 Camshaft case
- Removing and installing ⇒ 1.4 Removing and installing camshaft housing
5 Hall sender - G40-
- Removing and installing ⇒ 1.4.1 Removing and installing Hall sender G40
6 Bolt
- 8 Nm
7 Seal
- For exhaust camshaft, gearbox end
- Renewing ⇒ 3.2.6 Removing and installing exhaust camshaft oil seal, gearbox end; exhaust side with toothed belt pulley on control end
8 Crankshaft
- For coolant pump
- Removing and installing ⇒ 2.7 Removing and installing toothed belt pulley for coolant pump
9 Bolt
- Specified torque ⇒ Item 8 (2.1 Assembly overview - coolant pump, thermostat)
10 Bolt
- 8 Nm
11 Cap
12 O-ring
- Check for damage, and renew if necessary; see ⇒ Electronic parts catalogue (ETKA)
13 Seal
- Renew
14 Dowel pin
15 Seal
- With oil strainer
- Inserted into cylinder head

Camshaft housing - specified torque and tightening sequence

Stage	Bolts	Specified torque/turning further angle
1.	-1 … 15-	10 Nm
2.	-1 … 15-	Turn 180° further
