1.4 TSI engine (EA211) · Ignition system · Ignition system

Removing and installing Hall sender

⇒ 1.4.1 Removing and installing Hall sender G40

⇒ 1.4.2 Removing and installing Hall sender 3 G300

1.4.1 Removing and installing Hall sender - G40-

Removing

Overview of fitting locations ⇒ 1.1 Overview of fitting locations - injection system.

Assembly overview - ignition system ⇒ 1.1 Assembly overview - ignition system.

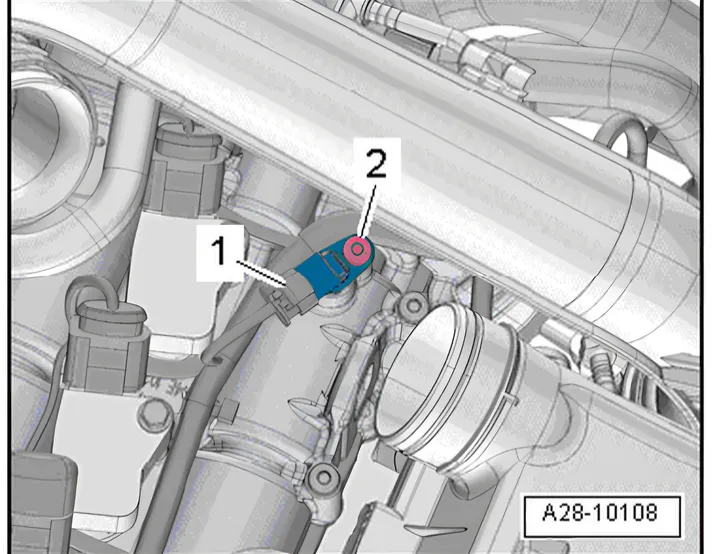

  • Disconnect electrical connector -1-.
  • Unscrew bolt -2- and remove Hall sender - G40-.

Installing

  • Install in reverse order of removal. The following should be observed:

Specified torques

1.4.2 Removing and installing Hall sender 3 - G300-

Removing

Overview of fitting locations ⇒ 1.1 Overview of fitting locations - injection system.

Assembly overview - ignition system ⇒ 1.1 Assembly overview - ignition system.

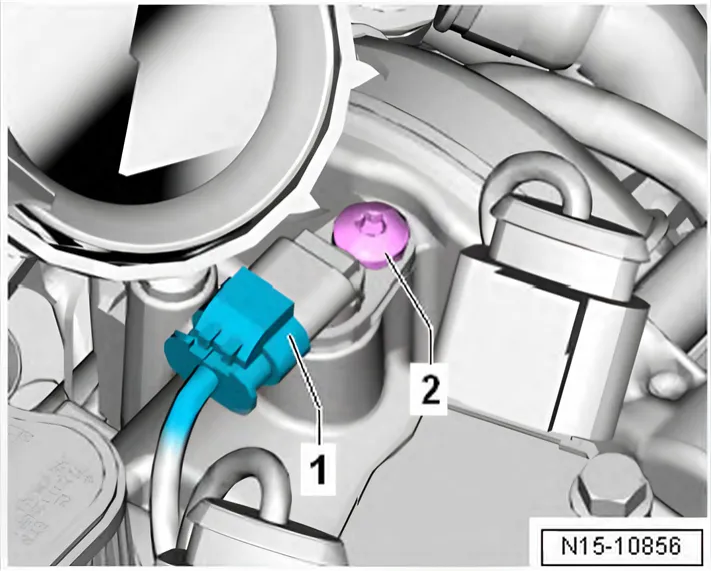

  • Disconnect electrical connector -1-.
  • Unscrew bolt -2- and remove Hall sender 3 - G300-.

Installing

  • Install in reverse order of removal.
