Body repairs – exterior · Glazing · Door windows

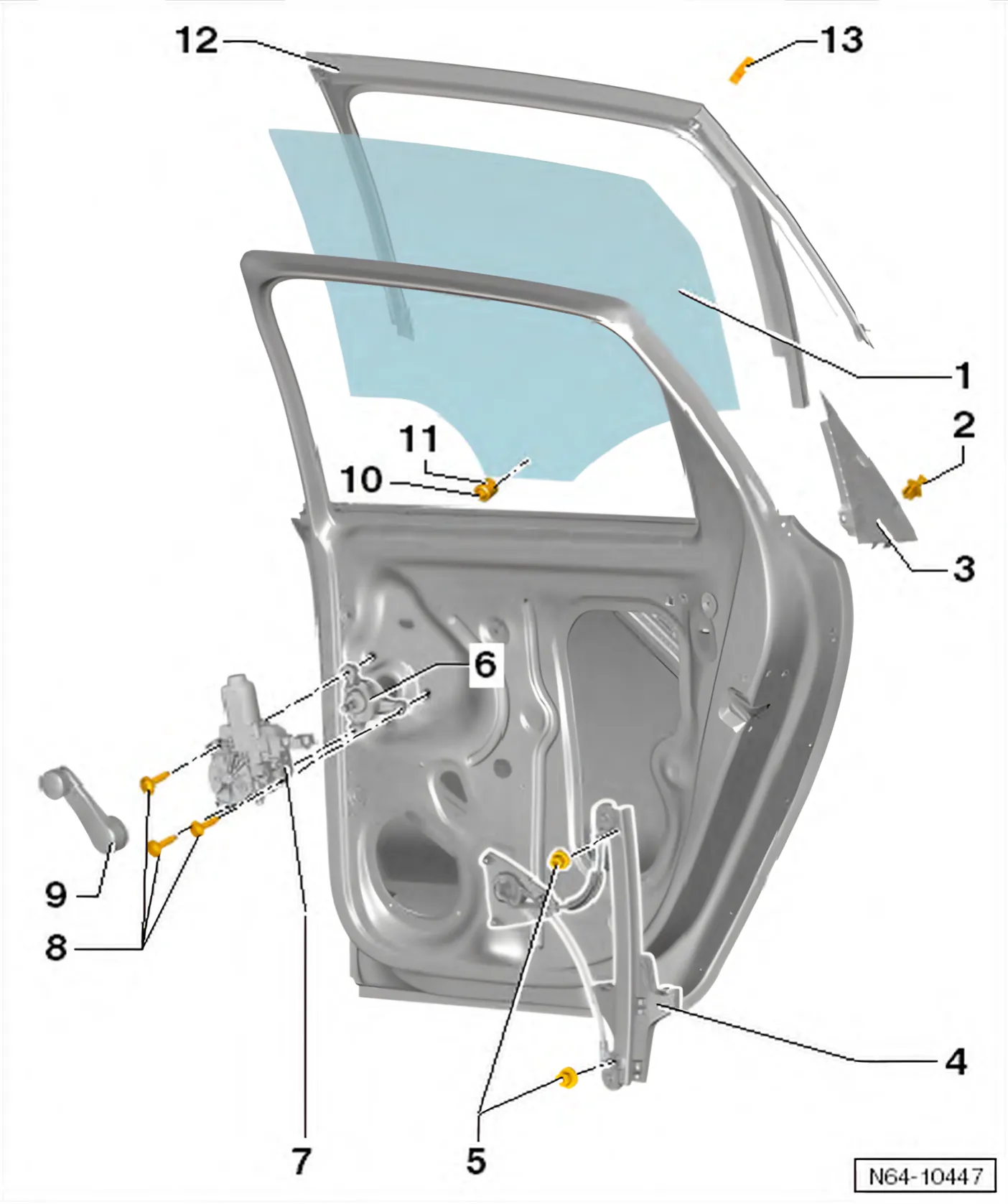

Rear door window – assembly overview and fastening
- 1 Door window
- Removing and installing ⇒ 5.4 Removing and installing rear door window
- 2 Clip with bolt
- For securing the trim
- 3 Trim
- Removing and installing ⇒ 3.14 Removing and installing C-pillar trim on door
- 4 Window regulator
- Removing and installing ⇒ 2.7 Removing and installing window regulator
- 5 Hexagon nut
- Qty. 2
- 8 Nm
- 6 Manual drive
- Removing and installing ⇒ 2.6 Removing and installing window crank mechanism
- 7 Window regulator motor
- Removing and installing ⇒ 2.4 Removing and installing window regulator motor
- 8 Bolt
- Qty. 3
- 3 Nm
- 9 Window crank
- For manual operation
- Removing and installing ⇒ 2.5 Removing and installing window crank
- 10 Spreader pin
- Together with spreader plug for securing door window.
- 11 Spreader plug
- Together with spreader pin for securing door window.
- 12 Window channel
- Pushed onto flange.
- Removing and installing ⇒ 2.14 Removing and installing window channel
- 13 Retaining clip
