Installation instructions for bonded windows

Installation instructions ⇒ 1.2 Installation instructions for bonded windows.

Materials ⇒ 1.2 Installation instructions for bonded windows

Fitting instructions

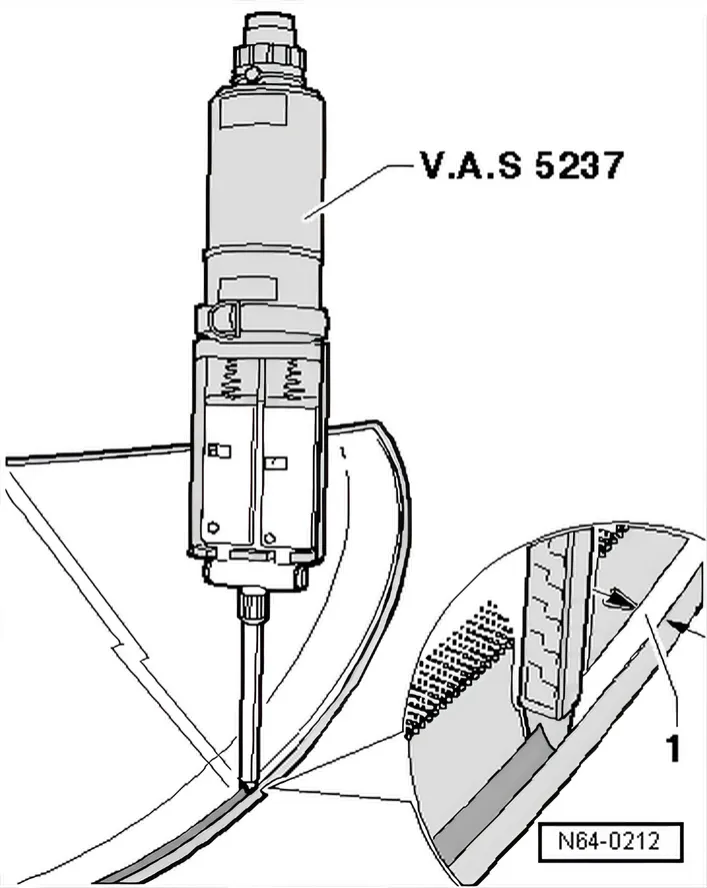

• Apply adhesive sealing material in continuous bead, holding applicator at right angle to window.

Adhesive bead should not be applied too thick and windows should not be pressed too forcibly on body flange. Windows no longer have sealing lips and therefore excessive adhesive will be visible in the joint area.

• With help of two double suction cups (V.A.G 1344) install glass panel in window cut-out, centre and press in to spacing lip.
• Replace stickers (e.g. for airbag) which may be installed.

Materials

13) Observe manufacturer's instructions enclosed in the packaging.

14) Observe minimum curing period ⇒ 1.1 Minimum curing periods for bonded windows.

15) Double cartridge gun - VAS 5237- must be used to apply these materials.

16) Small cartridge, 180 ml, for sealing and/or when a 400 ml cartridge alone is not sufficient.
