Rear side windows – assembly overview and fastening

⇒ 4.1.1 Assembly overview – rear side window, 2-door model

⇒ 4.1.2 Assembly overview – rear side window, 4-door model

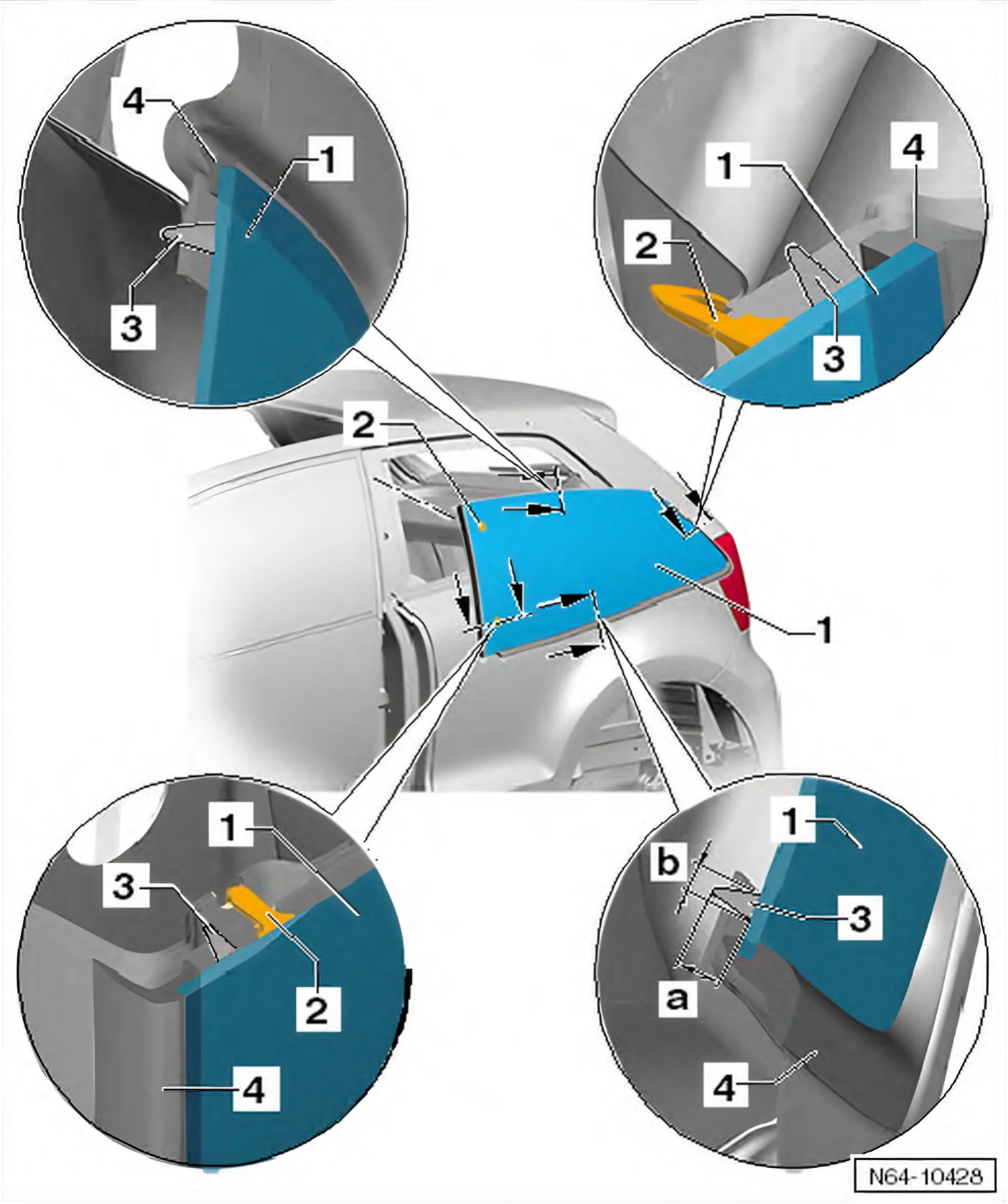

4.1.1 Assembly overview – rear side window, 2-door model

• 1 Side window
  • Removing and installing side window ⇒ 4.2.1 Removing and installing rear side window, 2-door model
• 2 Retaining clip
  • Qty. 3
  • Separated with cutting cord on removal.
• 3 PUR adhesive sealant
  • Cross section of bead: height = 10 mm -dimension a-, width = 6.5 mm -dimension b- (including precoating, residual material on window glass and window flange)
  • Minimum curing period ⇒ 1.1 Minimum curing periods for bonded windows
• 4 Seal
  • Integral part of side window.

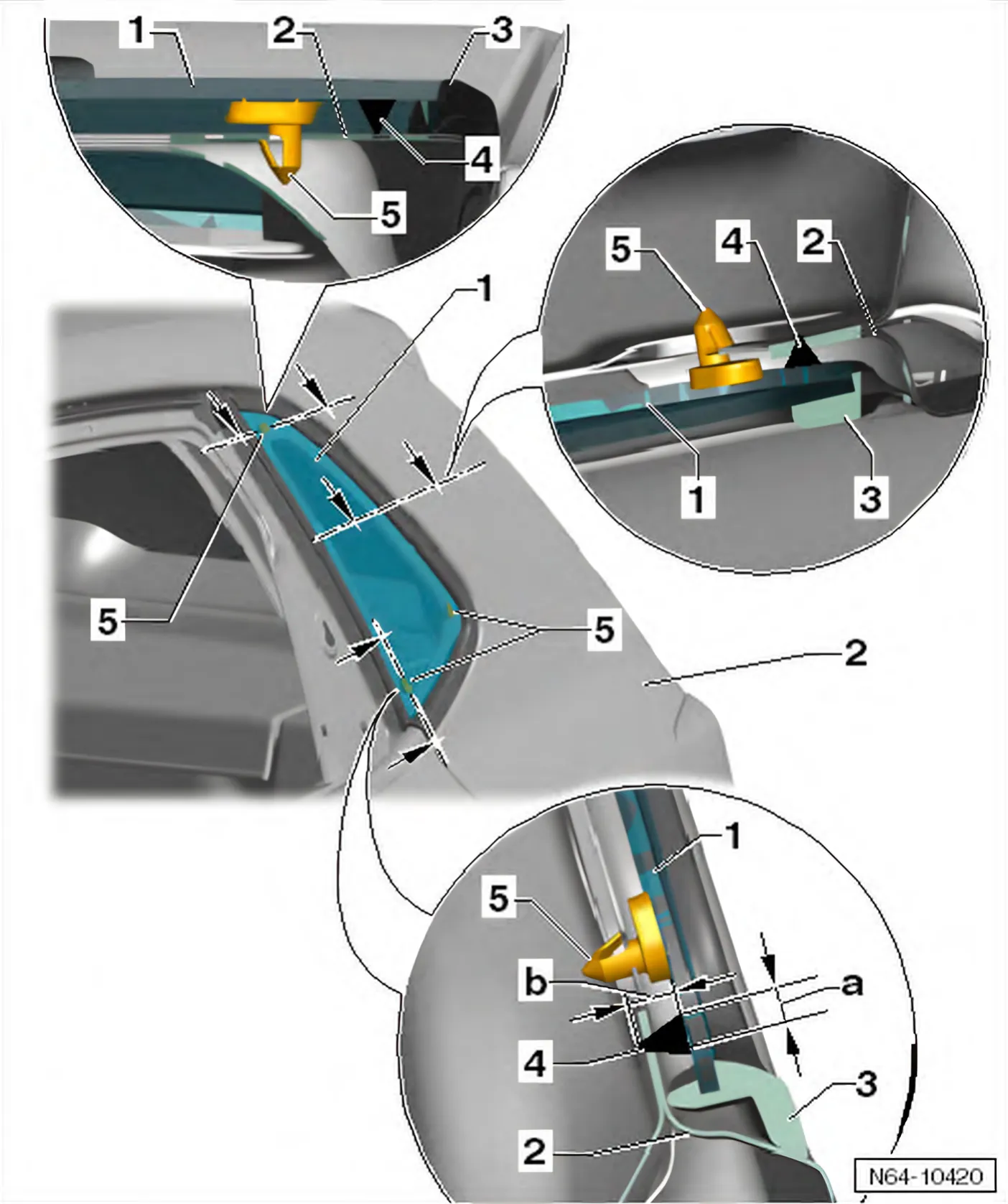

4.1.2 Assembly overview – rear side window, 4-door model

• 1 Side window
  • Removing and installing side window ⇒ 4.2.2 Removing and installing rear side window, 4-door model
• 2 Body flange
• 3 Seal
  • Integral part of side window.
• 4 PUR adhesive sealant
  • Cross section of bead: width = 6.5 mm -dimension a- height = 10 mm -dimension b- (including precoating, residual material on window glass and window flange).
  • Minimum curing period ⇒ 1.1 Minimum curing periods for bonded windows.
• 5 Retaining clip
  • Qty. 3
  • Separated with cutting cord on removal.
