1.4 TSI engine (EA211) · Mixture preparation – injection · Senders and sensors

Removing and installing fuel pressure sender - G247-

Special tools and workshop equipment required

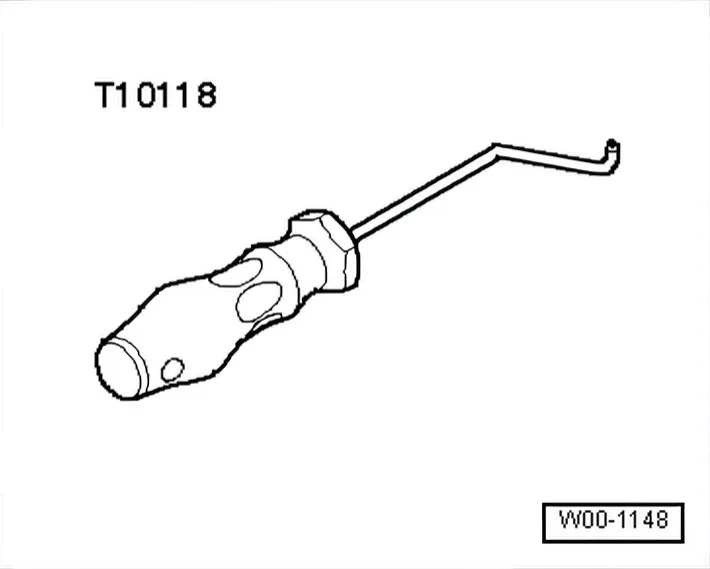

  • Assembly tool - T10118-

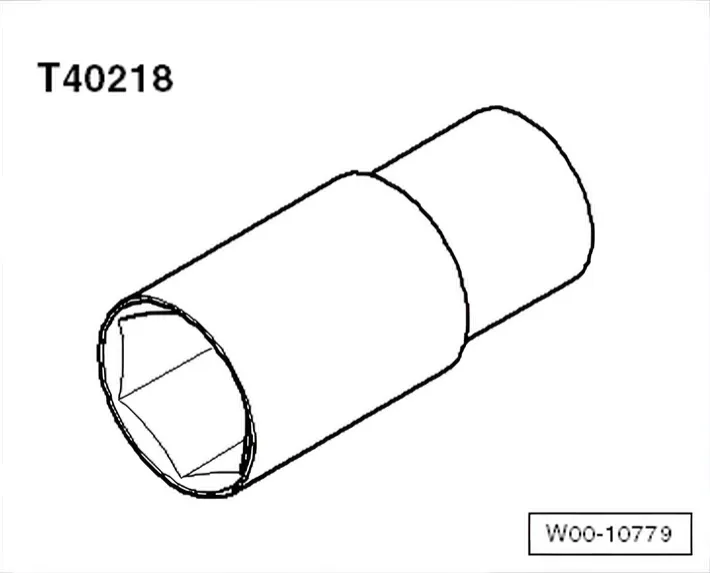

  • Socket 27 mm - T40218- or commercially available 27 mm hexagon socket insert

Removing

  • Disconnect electrical connector -1-.
  • Unscrew fuel pressure sender - G247- -2- using socket 27 mm
    • T40218-.

Installing

Install in reverse order of removal, observing the following:
