Removing and installing fuel rail

Removing

• Remove intake manifold ⇒ 4.2 Removing and installing intake manifold.
• Remove high-pressure pipe ⇒ 7.3 Removing and installing high-pressure pipe.

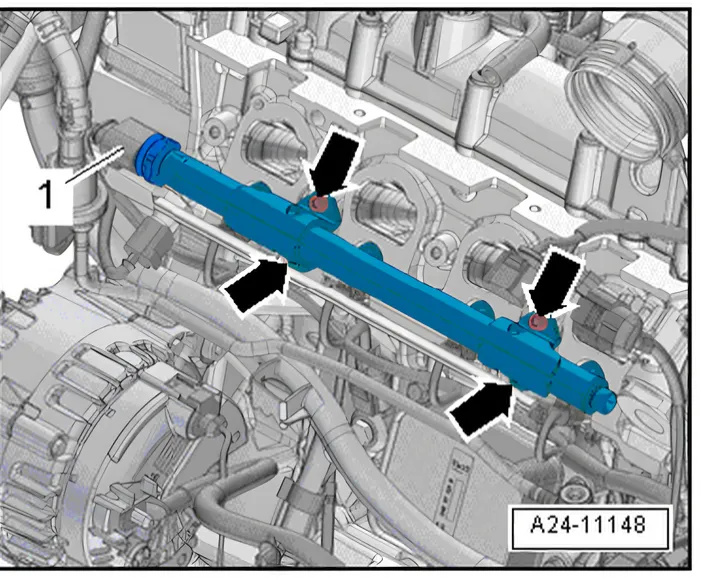

• Disconnect electrical connector -1-.

• Remove bolts -arrows- and pull fuel rail off injectors.

Installing

Install in reverse order of removal. The following should be observed:

• Apply mountings on fuel rail onto injectors.
• Press fuel rail onto injectors as far as stop (first on right side, then on left side).
• Firmly press down fuel rail in area of bracket and screw in bolts by two full turns.
• Tighten bolts evenly and diagonally.
• Install high-pressure pipe ⇒ 7.3 Removing and installing high-pressure pipe.
• Install intake manifold ⇒ 4.2 Removing and installing intake manifold.

Torque settings

• ⇒ 2.1 Assembly overview - fuel rail with injectors
