1.4 TSI engine (EA211) · Mixture preparation – injection · Intake manifold
Cleaning throttle valve module - GX3-
Special tools and workshop equipment required
- Acetone (commercially available)
- Brush
Procedure
- Remove throttle valve module - GX3- ⇒ 4.3 Removing and installing throttle valve module GX3 .

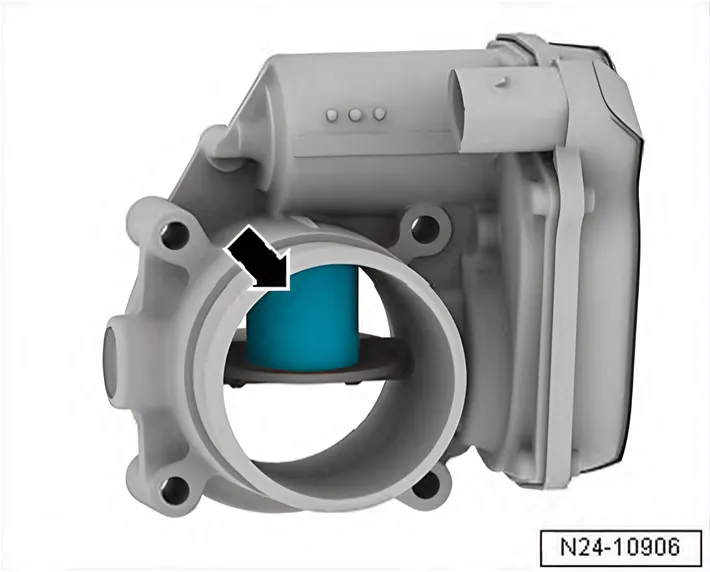

- Open throttle valve by hand and lock it in open position with a wedge (plastic or wood) -arrow-.
- Clean throttle valve housing thoroughly, especially around the points -arrows- where the throttle valve closes, using commercially available acetone and a small brush.
- Wipe the inside of the throttle valve housing with a lint-free cloth.
- Allow acetone to dry off completely.
- Install throttle valve module - GX3- ⇒ 4.3 Removing and installing throttle valve module GX3 .
- Delete learnt values, and adapt engine control unit - J623- to throttle valve module - GX3-. Use ⇒ Vehicle diagnostic tester.
- Switch on ignition, and select following menu item on the vehicle diagnostic tester :
- 0001 - Adaption throttle valve module J338
