Air filter

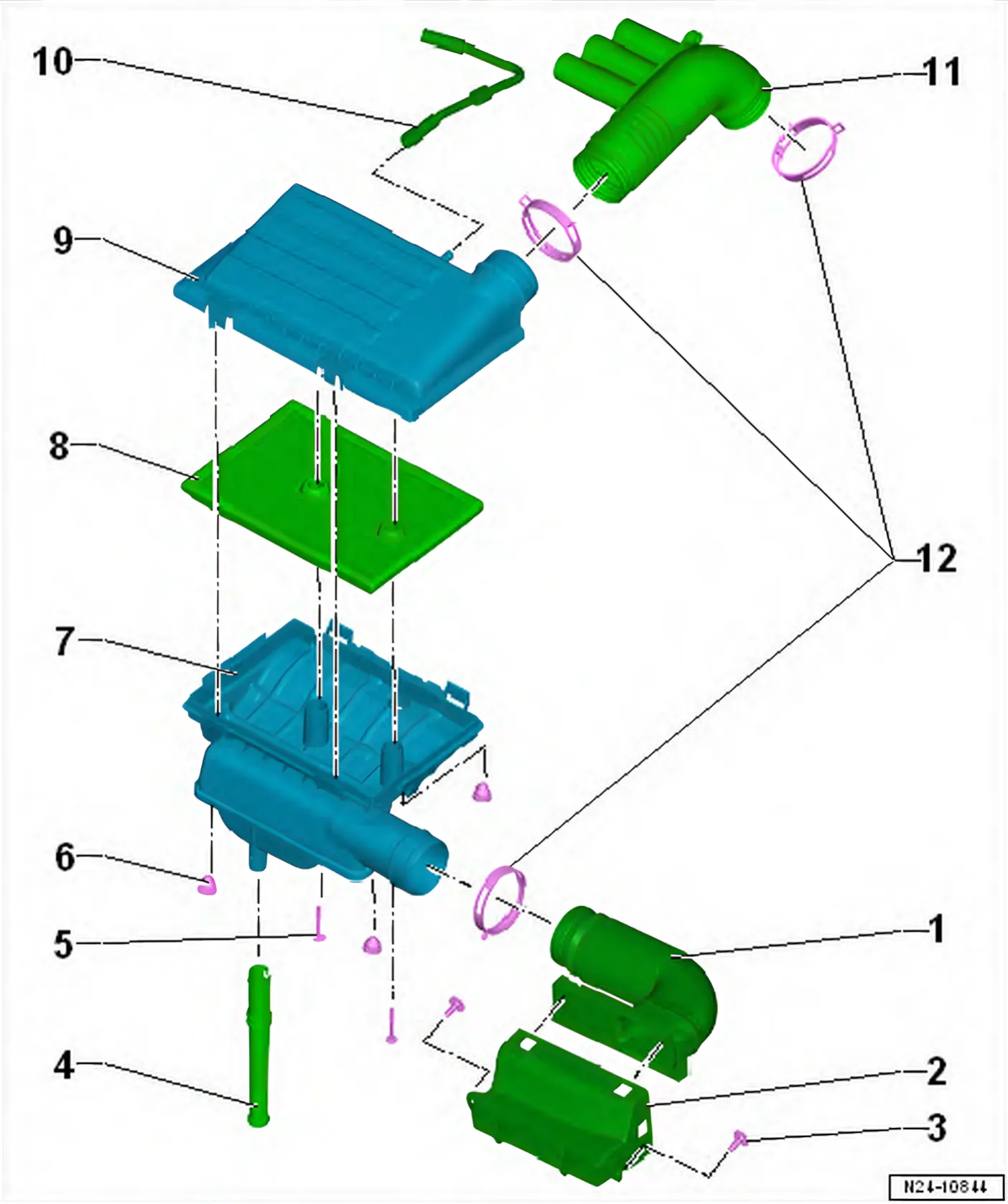

3.1 Assembly overview - air filter housing

• 1 Connection hose
• 2 Intake connecting pipe
  • On lock carrier.
• 3 Bolt
  • 2 Nm
• 4 Water drainage pipe
  • Clean if soiled.
• 5 Bolt
  • 1.5 Nm
• 6 Bump stop
• 7 Air filter lower part
  • Remove dirt, leaves and salt residues
• 8 Air filter element
  • Use only genuine air filter elements ⇒ Electronic Parts Catalogue
  • For change intervals refer to ⇒ Maintenance tables
  • Removing and installing ⇒ Maintenance; Booklet
• 9 Air filter upper part
  • Remove dirt, leaves and salt residues
• 10 Hose
  • For crankcase ventilation.
• 11 Air intake hose
• 12 Clip

3.2 Removing and installing air filter housing

Removing

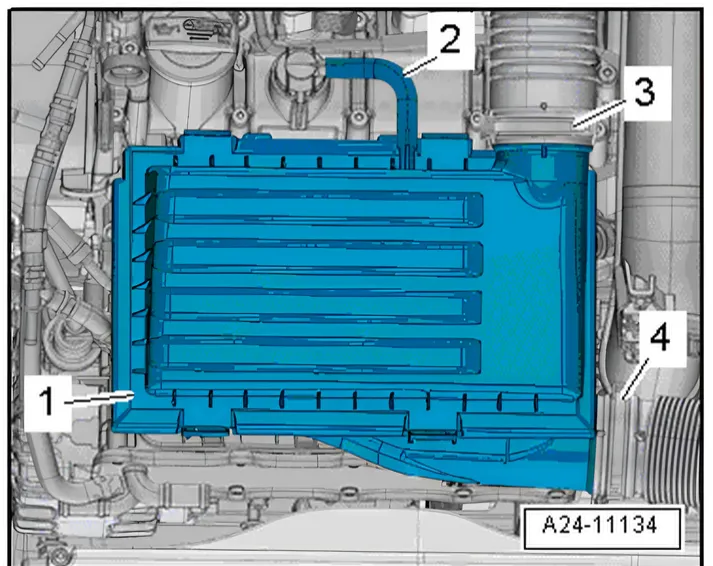

• Detach air hose -2-.
• Pull air filter housing -1- off ball head pins upwards.
• Release hose clips -3- and -4- and remove air ducts.

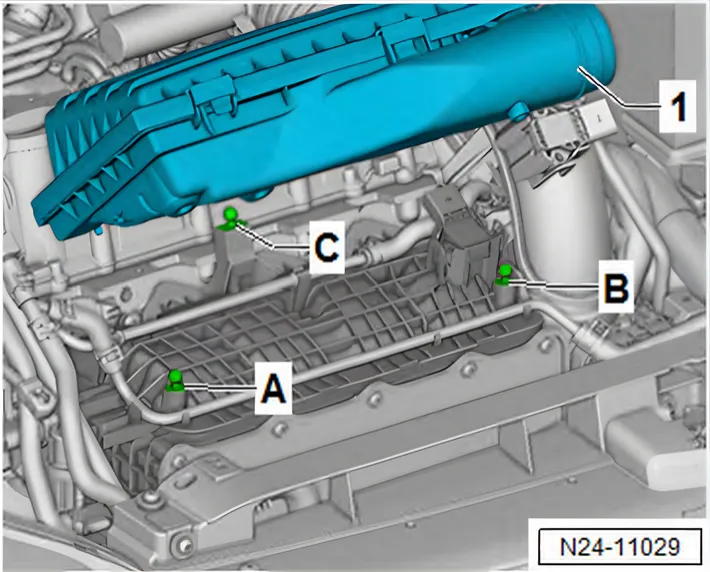

• First pull air filter housing off ball stud -C-.
• Then, and only then, pull air filter housing off ball studs -B- and
  • A-.

Installing

Install in reverse order of removal, observing the following:

• Keep to the sequence during assembly.

• Press air filter housing -1- on ball studs -A- and -B-.
• Finally, press air filter housing on ball stud -C-.

• Remove salt residues, dirt and leaves from top and bottom part of air filter housing using a vacuum cleaner.
• Blow out water drain with compressed air.

Torque settings

• ⇒ 3.1 Assembly overview - air filter housing

3.3 Removing and installing resonator for intake air

Removing

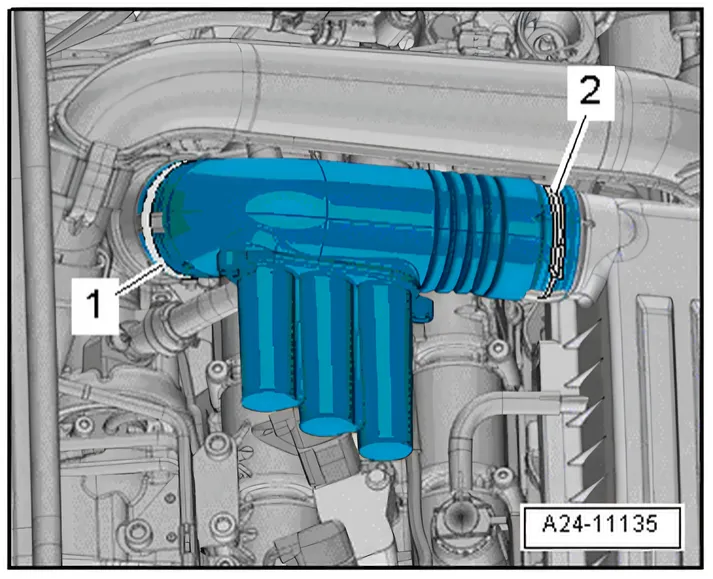

• Loosen hose clips -1- and -2-.
• Remove resonator for intake air.

Installing

Install in reverse order of removal, observing the following:
