Removing and installing throttle valve module - GX3-

Throttle valve module - GX3- consists of

  • Throttle valve module - J338-
  • Throttle valve drive for electronic power control - G186-
  • Throttle valve drive angle sender 1 for electronic power control
    • G187-
  • Throttle valve drive angle sender 2 for electronic power control
    • G188-

Removing

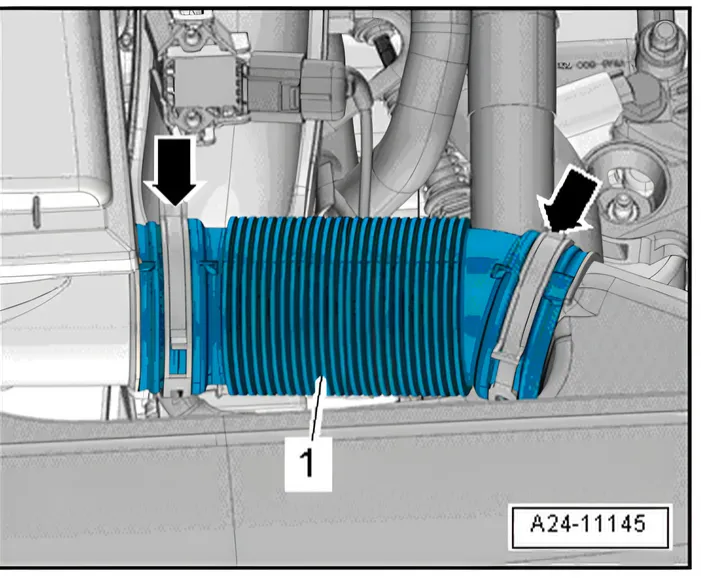

  • Open hose clips -arrows- and detach air duct -1-.
  • Disconnect electrical connector -3-.

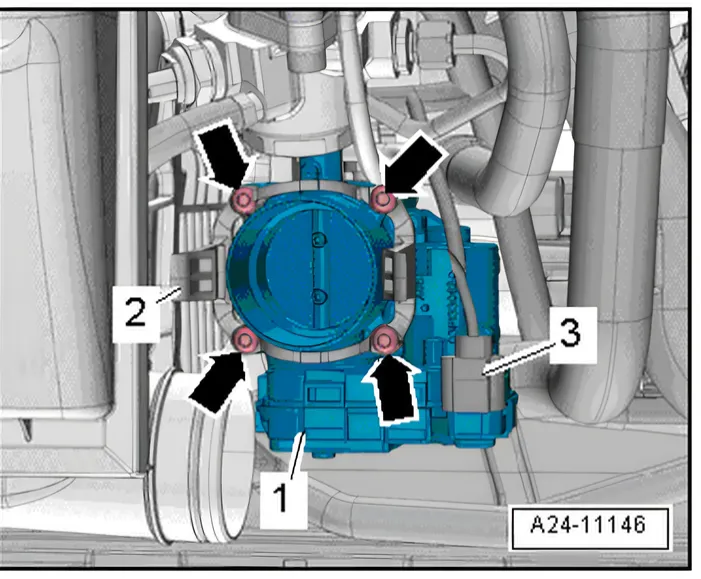

  • Unscrew bolts -arrows- and remove throttle valve module - GX3- -1- with adapter -2-.

Installing

Install in reverse order of removal. The following should be observed:

  • After renewing throttle valve module - GX3-, re-adapt it to engine control unit - J623-. Use ⇒ Vehicle diagnostic tester.
  • Switch on ignition, and select following menu item on the vehicle diagnostic tester :
  • 0001 - Adaption throttle valve module J338

Torque settings
