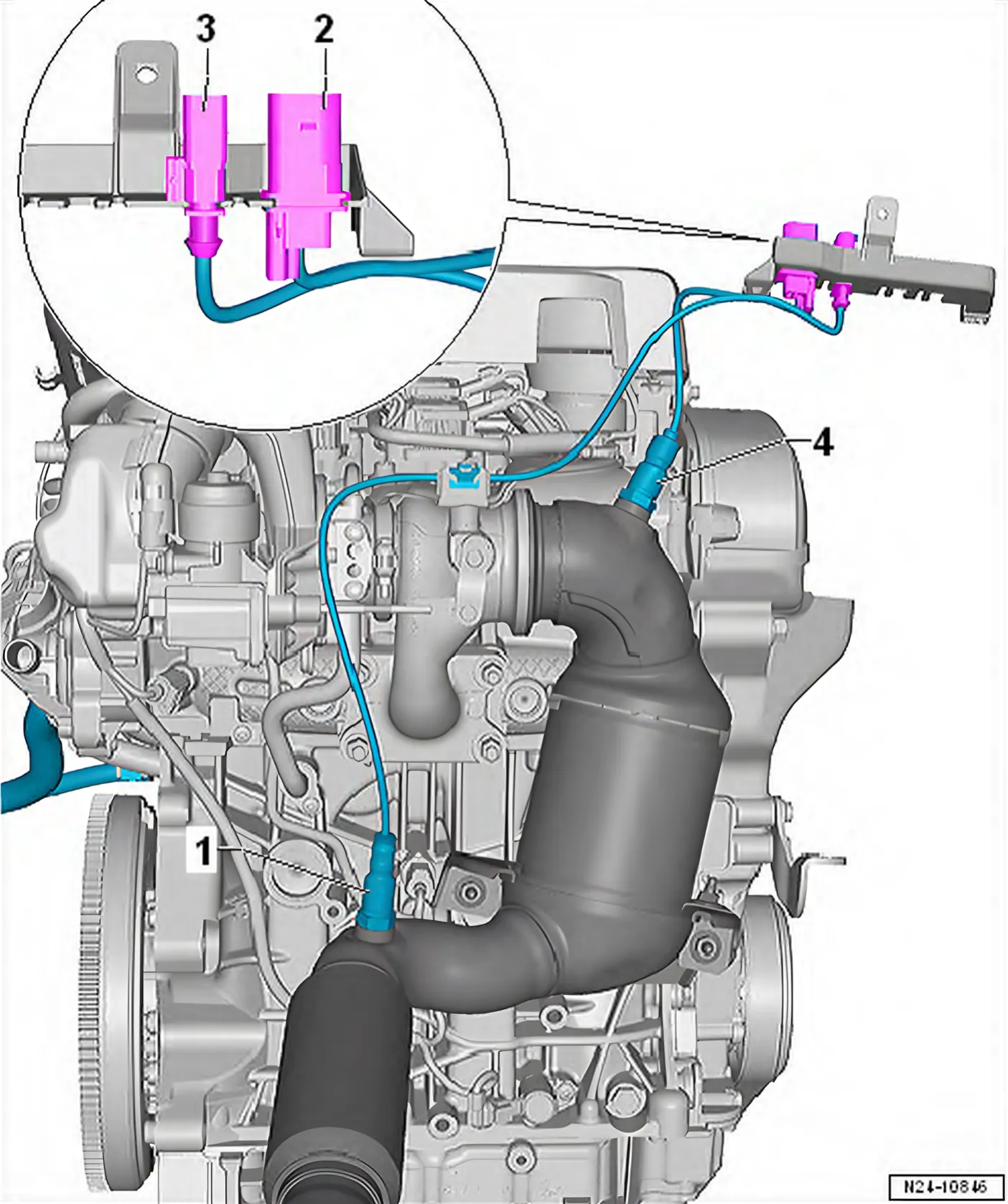

Lambda probe – assembly overview and fastening

• 1 Lambda probe 1 after catalytic converter - GX7-
  • Consisting of

Lambda probe after catalytic converter - G130-

Lambda probe 1 heater after catalytic converter - Z29-

• Removing and installing ⇒ 8.2 Removing and installing Lambda probe
• 55 Nm

• 2 Electrical connector
  • For Lambda probe 1 before catalytic converter - GX10-.
• 3 Electrical connector
  • For Lambda probe 1 after catalytic converter - GX7-.
• 4 Lambda probe 1 before catalytic converter - GX10-
  • Consisting of

Lambda probe - G39-

Lambda probe heater - Z19-

• Removing and installing ⇒ 8.2 Removing and installing Lambda probe
• 55 Nm
