1.4 TSI engine (EA211) · Mixture preparation – injection · Injectors

Cleaning injectors

Special tools and workshop equipment required

  • Ultrasonic cleaning device - VAS 6418-
  • Mounting plate for injectors - VAS 6418/1-
  • Cleaning fluid ⇒ Electronic Parts Catalogue

Cleaning

  • Remove injectors ⇒ 2.3 Removing and installing injectors.

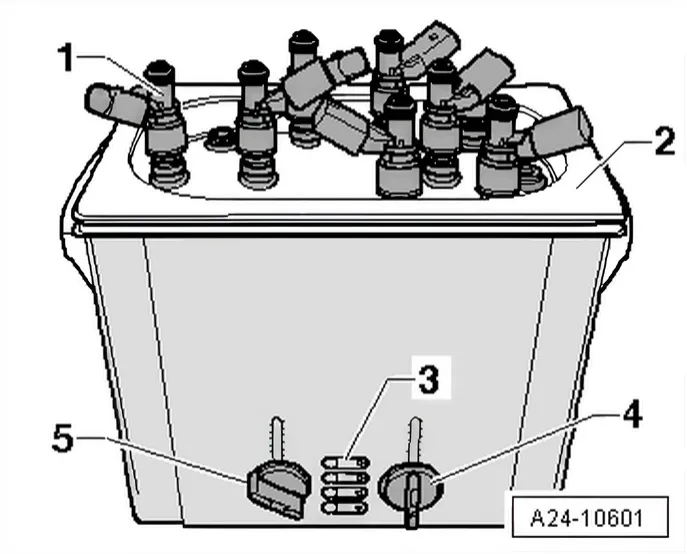

  • Insert injectors -1- as far as stop into mounting plate for injection modules - VAS 6418/1- -item 2-.

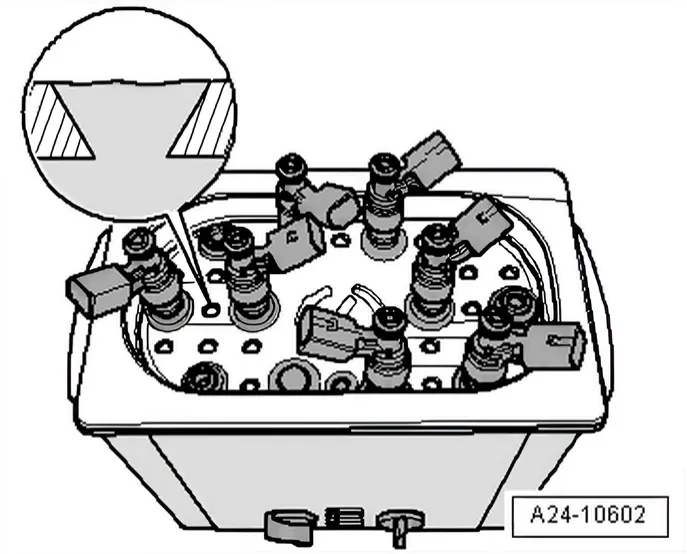

  • Immerse injectors together with mounting plate injection modules - VAS 6418/1- into cleaning fluid - VAS 6418/2-.
  • Set rotary knob -4- to a temperature of 50°C.
  • Set a cleaning time of 30 minutes with the rotating knob -5-.
  • Press button -3- to switch on ultrasonic unit.
