1.4 TSI engine (EA211) · Removing and installing engine · Assembly mountings
Assembly mountings – assembly overview and fastening
⇒ 2.1.1 Assembly overview - assembly mountings, manual gearbox
⇒ 2.1.2 Assembly overview - assembly mountings, dual clutch gearbox

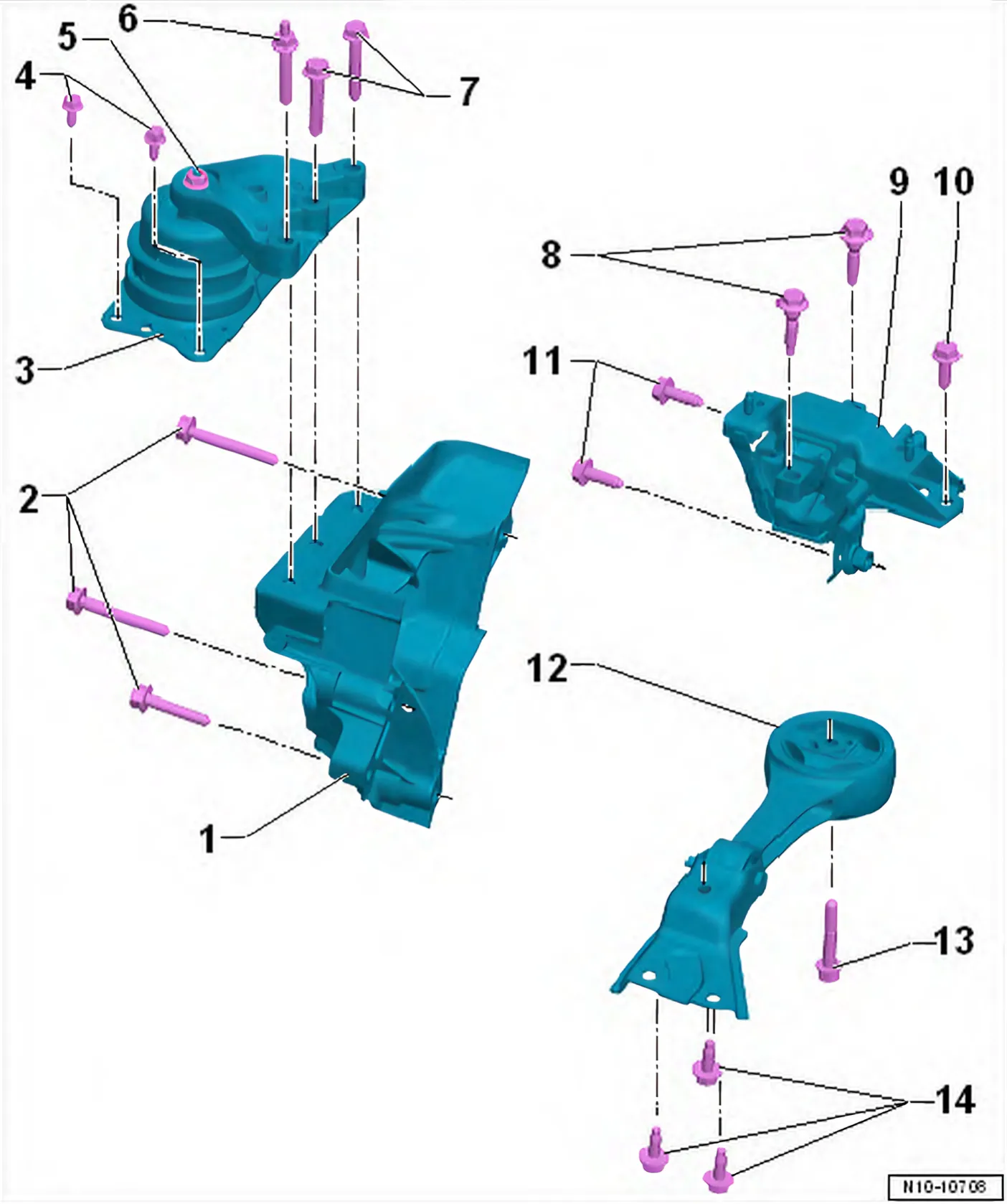

2.1.1 Assembly overview - assembly mountings, manual gearbox
- 1 Engine support
- Removing and installing ⇒ 1.6 Removing and installing engine support
- Specified torque and tightening sequence ⇒ 2.1.1 Assembly overview - assembly mountings, manual gearbox
- 2 Bolt
- Renew after removal
- Specified torque and tightening sequence ⇒ 2.1.1 Assembly overview - assembly mountings, manual gearbox
- 3 Engine mounting
- Removing and installing ⇒ 2.2 Removing and installing engine mounting
- Aligning engine mounting ⇒ 2.1.1 Assembly overview - assembly mountings, manual gearbox
- 4 Bolt
- Renew after removal
- 20 Nm + 90°
- Qty. 4
- 5 Nut
- The securing nut must not be loosened.
- 6 Centre hex stud
- With mounting for earth wire.
- Renew after removal
- 30 Nm + 90°
- 7 Bolt
- Qty. 2
- Renew after removal
- 30 Nm + 90°
- 8 Bolt
- Renew after removal
- 40 Nm + 90°
- Tightening sequence ⇒ 2.1.1 Assembly overview - assembly mountings, manual gearbox
- 9 Gearbox mounting
- Removing and installing ⇒ 2.3 Removing and installing gearbox mounting
- Tightening sequence - gearbox mounting ⇒ 2.1.1 Assembly overview - assembly mountings, manual gearbox.
- 10 Bolt
- Renew after removal
- 50 Nm + 90°
- Tightening sequence - gearbox mounting ⇒ 2.1.1 Assembly overview - assembly mountings, manual gearbox.
- 11 Bolt
- Renew after removal
- 50 Nm + 90°
- Qty. 2
- Tightening sequence - gearbox mounting ⇒ 2.1.1 Assembly overview - assembly mountings, manual gearbox.
- 12 Pendulum support
- Removing and installing ⇒ 2.4 Removing and installing pendulum support
- 13 Bolt
- Renew after removal
- 40 Nm + 90°
- 14 Bolt
- Renew after removal
- 30 Nm + 90°
- Qty. 3
- 15 Bolt
- Renew after removal
- 50 Nm + 90°

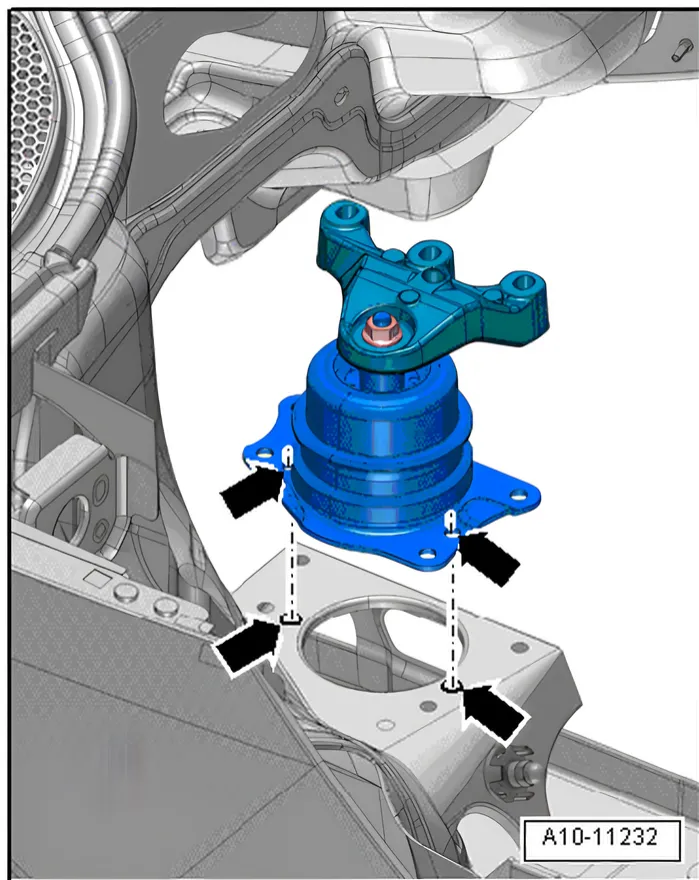

Aligning engine mountings:
- Fit engine mounting on longitudinal member.

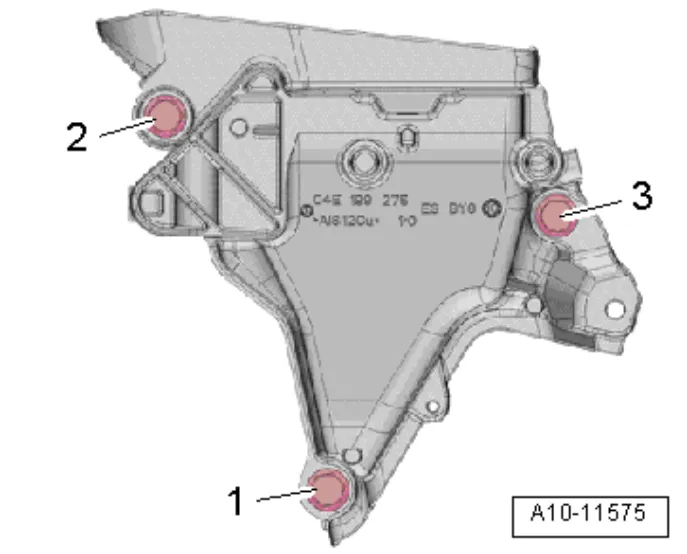

Engine support - specified torque and tightening sequence
- Tighten bolts in stages in the sequence shown.
| Stage | Bolts | Specified torque/turning further angle |
|---|---|---|
| 1. | -1 … 3- | 7 Nm |
| 2. | -1 … 3- | 40 Nm |
| 3. | -1 … 3- | Turn 90° further |

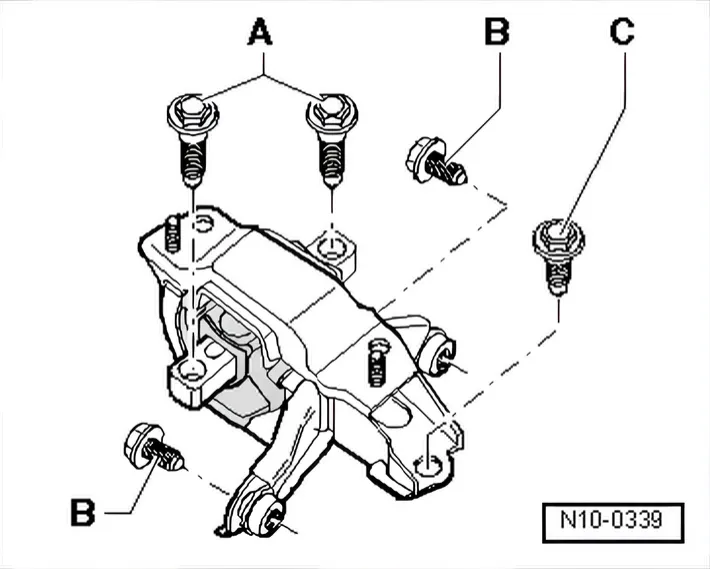

Tightening sequence - gearbox mounting
2.1.2 Assembly overview - assembly mountings, dual clutch gearbox
- 1 Engine support
- Removing and installing ⇒ 1.6 Removing and installing engine support
- Specified torque and tightening sequence ⇒ 2.1.2 Assembly overview - assembly mountings, dual clutch gearbox
- 2 Bolt
- Renew after removal
- Specified torque and tightening sequence ⇒ 2.1.2 Assembly overview - assembly mountings, dual clutch gearbox
- 3 Engine mounting
- Removing and installing ⇒ 2.2 Removing and installing engine mounting
- Aligning engine mounting ⇒ 2.1.2 Assembly overview - assembly mountings, dual clutch gearbox
- 4 Bolt
- Renew after removal
- 20 Nm + 90°
- Qty. 4
- 5 Nut
- The securing nut must not be loosened.
- 6 Centre hex stud
- With mounting for earth wire.
- Renew after removal
- 30 Nm +90°
- 7 Bolt
- Qty. 2
- Renew after removal
- 30 Nm + 90°
- 8 Bolt
- Renew after removal
- 40 Nm + 90°
- Tightening sequence - gearbox mounting ⇒ 2.1.2 Assembly overview - assembly mountings, dual clutch gearbox.
- 9 Gearbox mounting
- Removing and installing ⇒ 2.3 Removing and installing gearbox mounting
- Tightening sequence - gearbox mounting ⇒ 2.1.2 Assembly overview - assembly mountings, dual clutch gearbox.
- 10 Bolt
- Renew after removal
- 50 Nm + 90°
- Tightening sequence - gearbox mounting ⇒ 2.1.2 Assembly overview - assembly mountings, dual clutch gearbox.
- 11 Bolt
- Renew after removal
- 50 Nm + 90°
- Qty. 2
- Tightening sequence - gearbox mounting ⇒ 2.1.2 Assembly overview - assembly mountings, dual clutch gearbox.
- 12 Pendulum support
- Removing and installing ⇒ 2.4 Removing and installing pendulum support
- 13 Bolt
- Renew after removal
- 40 Nm + 90°
- 14 Bolt
- Renew after removal
- 30 Nm + 90°
- Qty. 2
- 15 Bolt
- Renew after removal
- 50 Nm + 90°
Aligning engine mountings:
- Fit engine mounting on longitudinal member.
Engine support - specified torque and tightening sequence
Tightening sequence - gearbox mounting
| Ite m | Procedure | Torque setting |
|---|---|---|
| B an d C | Start bolts before tightening them | hand-tight |
| B | Tighten bolts | 50 Nm + 90° |
| C | Tighten bolt. | 50 Nm + 90° |
| A | Start bolts before tightening them | hand-tight |
| A | Bolts | 40 Nm + 90° |
