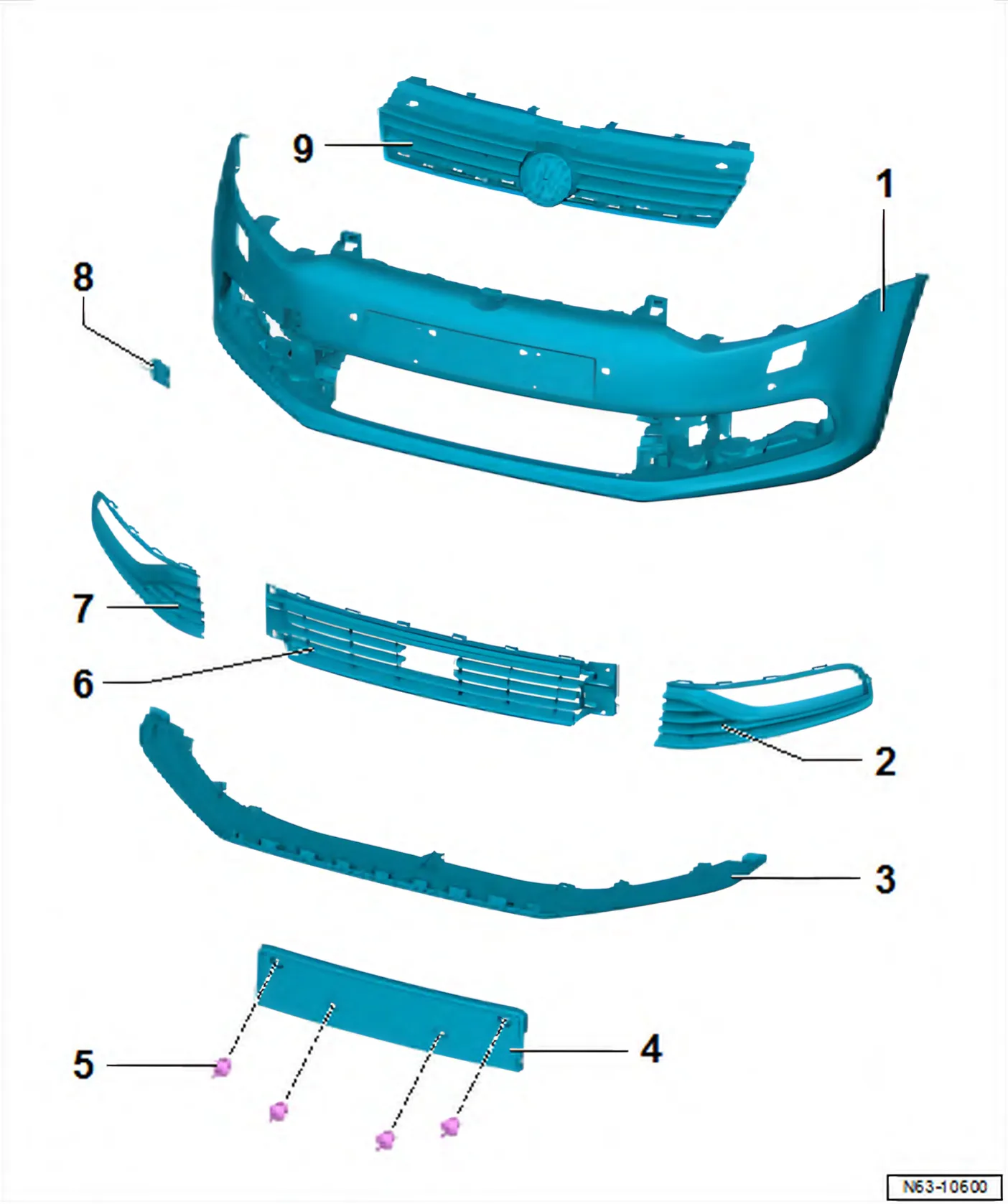

1.3.1 Assembly overview – add-on parts, Polo, »standard« equipment version

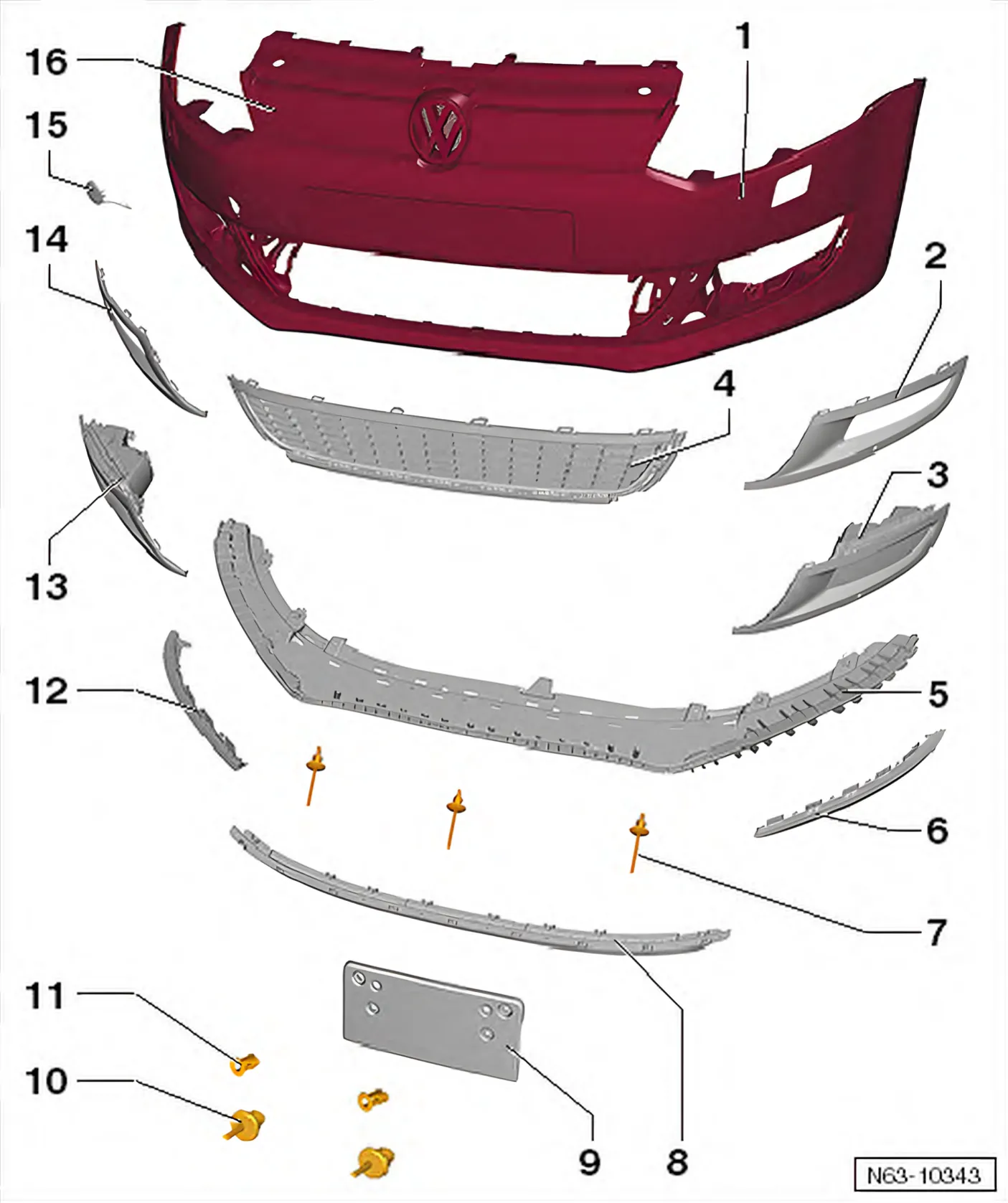

1.3.2 Assembly overview - add-on parts, Polo »BlueMotion«

  • 1 Front bumper cover
  • 2 Frame for fog lights
    • Left
    • Pull forwards out of detent.
  • 3 Side air intake grille
    • Left
    • Only remove when bumper cover -1- is removed.
  • 4 Centre air intake grille
    • Only remove when bumper cover -1- is removed.
  • 5 Spoiler
    • Material PP/EPDM.
    • Only remove when bumper cover -1- is removed.
  • 6 Front left spoiler
    • Material PP/EPDM.
    • Only remove when bumper cover -1- is removed.
  • 7 Pop rivets
    • Qty. 6
    • For securing the spoiler attachment
  • 8 Spoiler attachment
  • 9 Number plate carrier
  • 10 Clip
    • Different number for securing.
  • 11 Rivet nut
  • 12 Front right spoiler
    • Material PP/EPDM.
    • Only remove when bumper cover -1- is removed.
  • 13 Side air intake grille
    • Right
    • Only remove when bumper cover -1- is removed.
  • 14 Frame for fog lights
    • Right
    • Pull forwards out of detent.
  • 15 Cover
    • For towing eye.
  • 16 Radiator grille

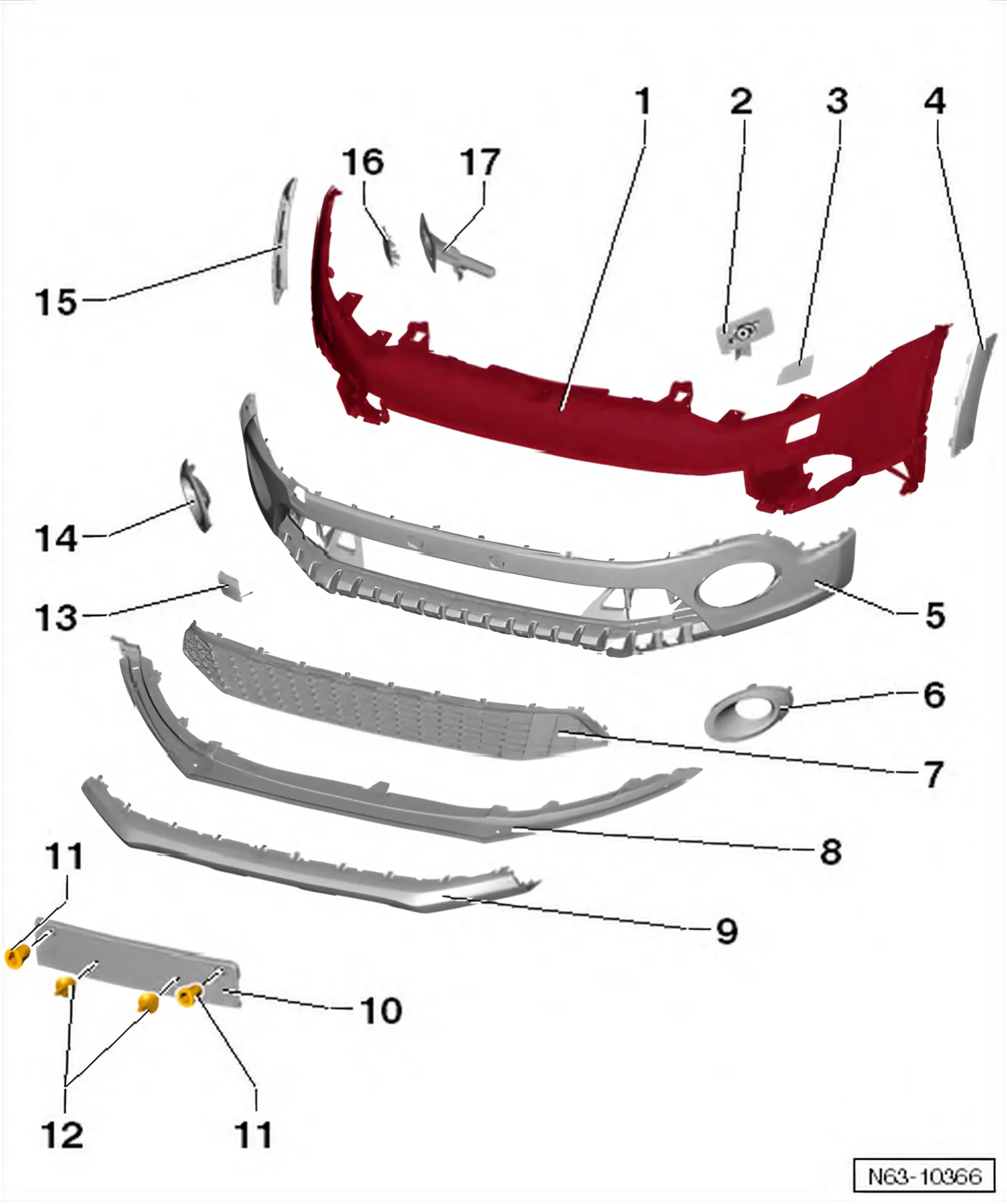

1.3.3 Assembly overview - attachments, »Cross Polo«

  • 1 Front bumper cover
  • 2 Nozzle holder
    • Left
    • For headlight washer system
  • 3 Cover flap
    • Left
    • For nozzle holder
    • Notes on paint: ⇒ Paint workshop manual
  • 4 Wheel arch trim
    • Left
    • Locked to front bumper cover -1-.
  • 5 Front spoiler
    • Locked to front bumper cover -1-.
    • The locking hooks can only be released if the bumper cover has been removed.
  • 6 Cover
    • Left
    • For fog light
  • 7 Air intake grille
    • Locked to front bumper cover -1-.
    • The locking hooks can only be released if the bumper cover has been removed.
  • 8 Attachment bracket
    • Front spoiler -5-
  • 9 Skid plate
    • Latched onto bumper cover -5-
    • The locking hooks can only be released if the bumper cover has been removed.
  • 10 Number plate carrier
  • 11 Rivet nut
    • Qty. 2
  • 12 Clip
    • Different number for securing.
  • 13 Cap for towing eye
  • 14 Cover
    • Right
    • For fog light
  • 15 Wheel arch trim
    • Right
    • Locked to front bumper cover -1-.
  • 16 Cover flap
    • Right
    • For nozzle holder
    • Notes on paint: ⇒ Paint workshop manual
  • 17 Nozzle holder
    • Right
    • For headlight washer system

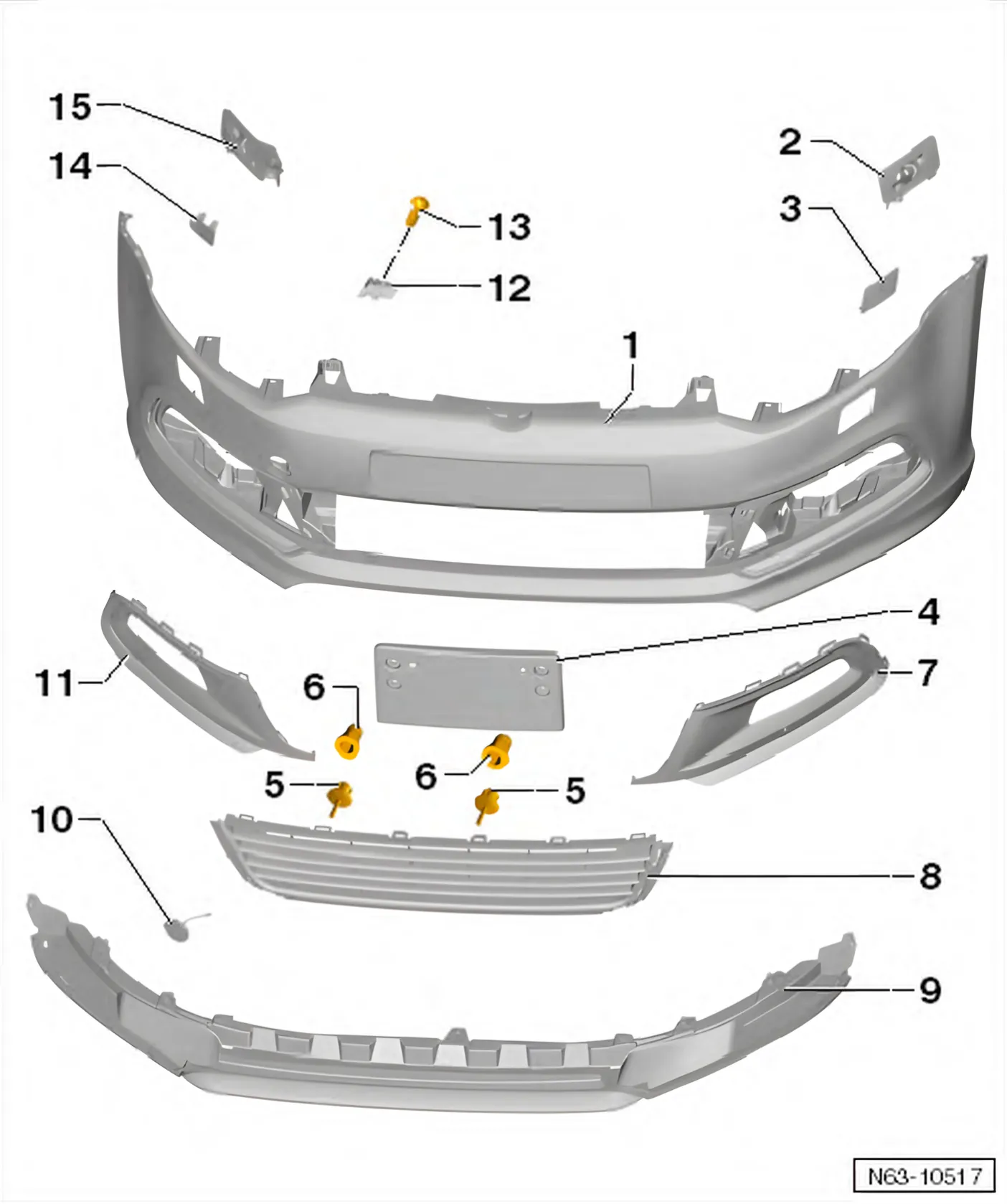

1.3.4 Assembly overview – add-on parts, Polo »GTI«

  • 1 Front bumper cover
  • 2 Cap
    • Left
    • For headlight washer system
    • Notes on paint: ⇒ Paint workshop manual
  • 3 Strip
    • Locked to front bumper cover -1-.
    • The locking hooks can only be released if the bumper cover has been removed.
  • 4 Cover
    • Left
    • Locked to front bumper cover -1-.
    • The locking hooks can only be released if the bumper cover has been removed.
  • 5 Cover
    • Left
    • Notes on paint: ⇒ Paint workshop manual
  • 6 Centre air intake grille
    • Locked to front bumper cover -1-.
    • The locking hooks can only be released if the bumper cover has been removed.
  • 7 Number plate carrier
  • 8 Clip
    • Depending on vehicle equipment, rivets may be used instead
    • Different number for securing.
  • 9 Spoiler
    • Left
    • Locked to front bumper cover -1-.
    • The locking hooks can only be released if the bumper cover has been removed.
  • 10 Front spoiler
    • Locked to front bumper cover -1-.
    • The locking hooks can only be released if the bumper cover has been removed.
  • 11 Spoiler
    • Right
    • Locked to front bumper cover -1-.
    • The locking hooks can only be released if the bumper cover has been removed.
  • 12 Cover
    • Left
    • Notes on paint: ⇒ Paint workshop manual
  • 13 Cover
    • Right
    • Locked to front bumper cover -1-.
  • 14 Cap for towing eye
  • 15 Cap
    • Right
    • For headlight washer system
    • Notes on paint: ⇒ Paint workshop manual

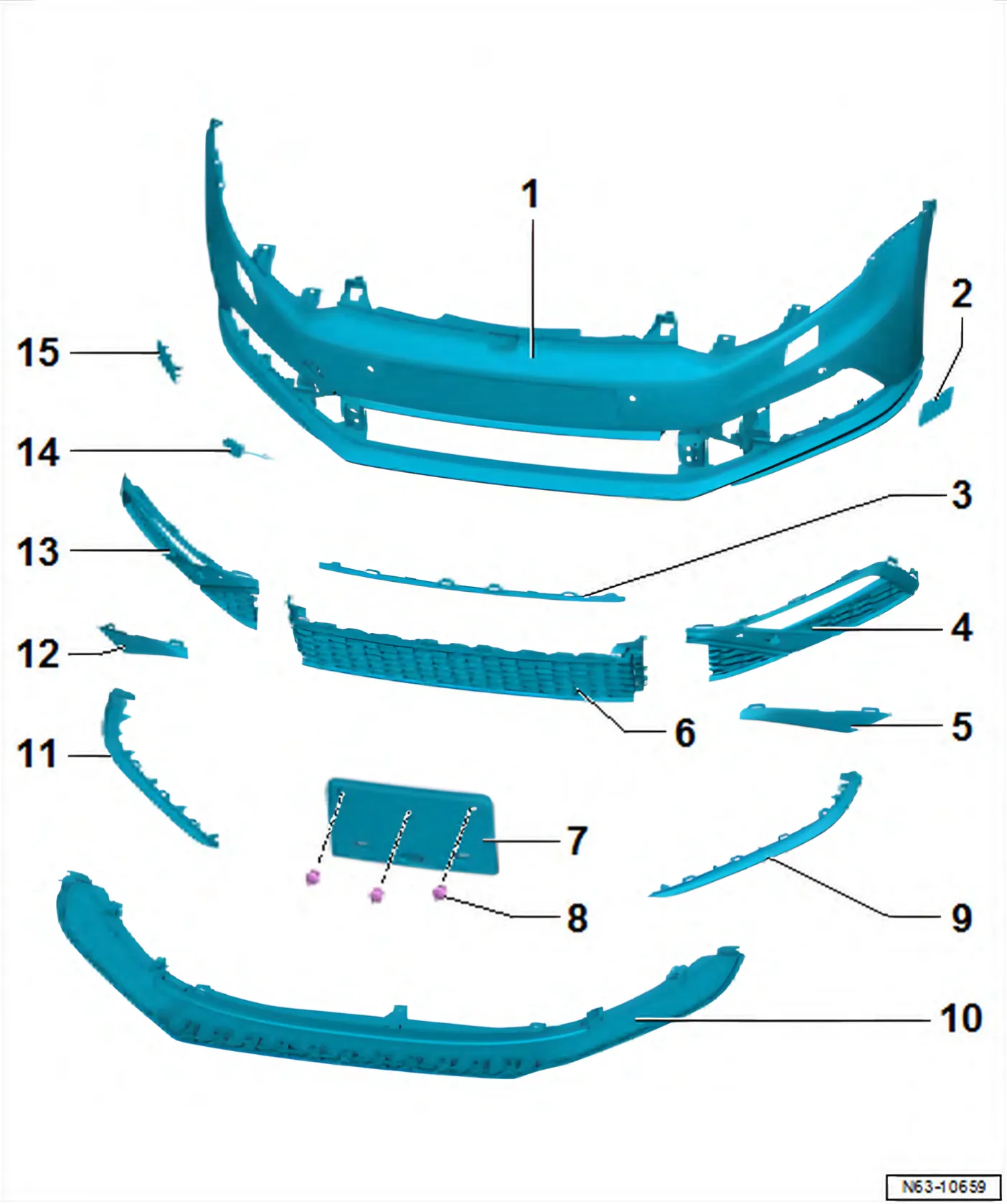

1.3.5 Assembly overview – add-on parts, Polo »R-Line«

  • 1 Front bumper cover
  • 2 Nozzle holder
    • Left
    • For headlight washer system
    • Removing and installing ⇒ Electrical system; Rep. gr. 92; Headlight washer system; Assembly overview – headlight washer system
  • 3 Cover flap
    • Left
    • For nozzle holder
    • Notes on paint: ⇒ Paint workshop manual
    • Removing and installing ⇒ Electrical system; Rep. gr. 92; Headlight washer system; Assembly overview – headlight washer system
  • 4 Number plate carrier
  • 5 Clip
    • Different number for securing.
  • 6 Rivet nuts
    • Qty. 2
  • 7 Cover
    • Material PP/EPDM.
    • Left
    • For fog light
  • 8 Centre air intake grille
    • Material PP/EPDM.
    • Engaged in front bumper cover
    • The locking hooks can only be released if the bumper cover has been removed.
  • 9 Attachment bracket
    • Material PP/EPDM.
    • Engaged in front bumper cover
    • The locking hooks can only be released if the bumper cover has been removed.
  • 10 Cap for towing eye
  • 11 Cover
    • Material PP/EPDM.
    • Right
    • For fog light
  • 12 »R Line « logo
  • 13 Bolt
    • 2 Nm
  • 14 Cover flap
    • Right
    • For nozzle holder
    • Notes on paint: ⇒ Paint workshop manual
    • Removing and installing ⇒ Electrical system; Rep. gr. 92; Headlight washer system; Assembly overview – headlight washer system
  • 15 Nozzle holder
    • Right
    • For headlight washer system
    • Removing and installing ⇒ Electrical system; Rep. gr. 92; Headlight washer system; Assembly overview – headlight washer system
