Body repairs – exterior · Bumpers · Bumper, front

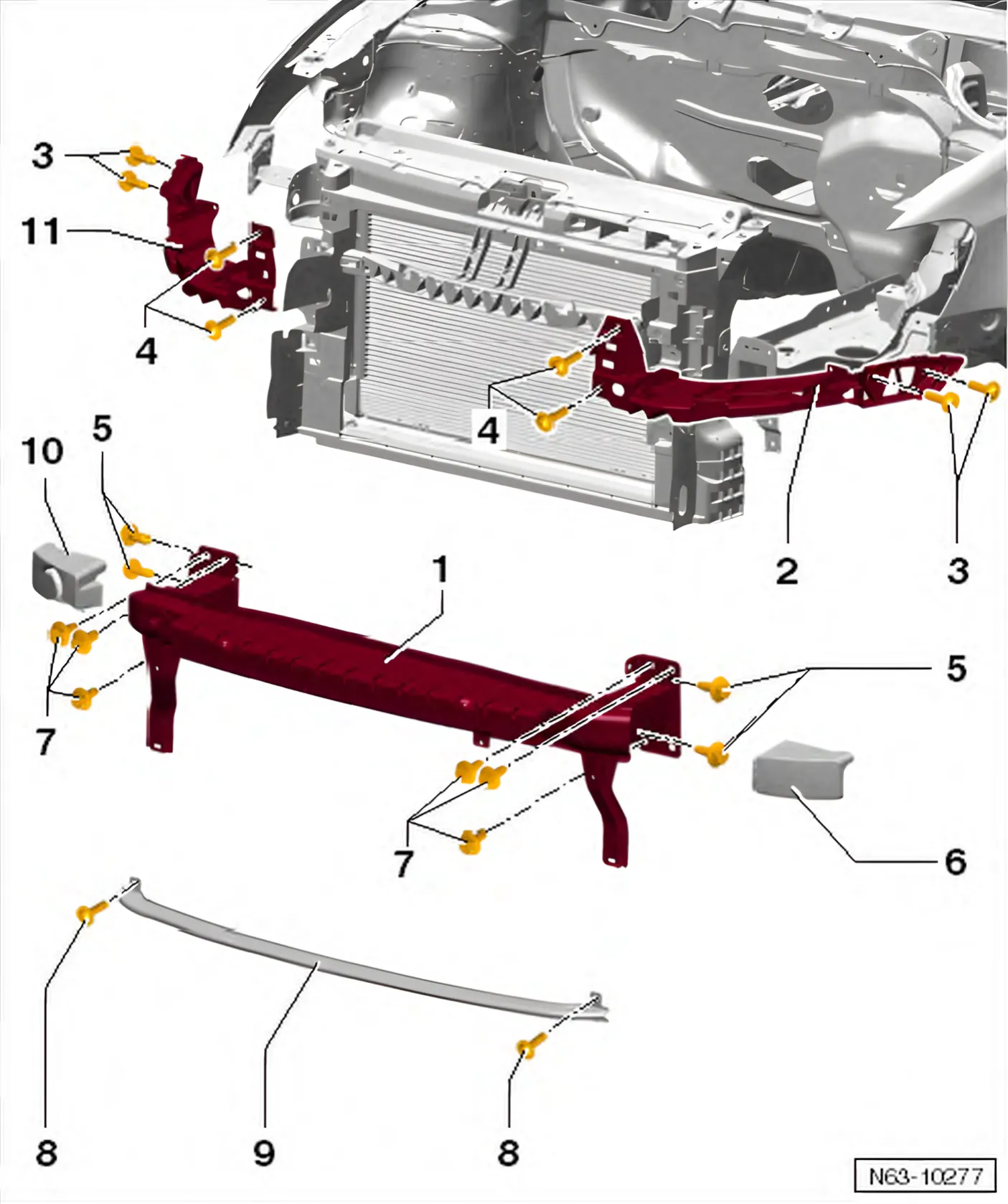

Impact bar – assembly overview and fastening

Optional equipment Volkswagen R GmbH

  • 1 Front bumper carrier
    • Allocation ⇒ Electronic parts catalogue “ETKA”
  • 2 Lateral guide
    • Left
    • Allocation ⇒ Electronic parts catalogue “ETKA”
  • 3 Bolt
    • Qty. 2 each on left and right.
    • 8 Nm
  • 4 Bolt
    • Qty. 2 each on left and right.
    • 8 Nm
  • 5 Bolt
    • Qty. 2 on each side
    • 8 Nm
  • 6 Filler piece
  • 7 Bolt
    • Qty. 3 on each side
    • 30 Nm
  • 8 Bolt
    • Qty. 2
    • 8 Nm
  • 9 Pedestrian protection
    • Not installed in all countries.
  • 10 Filler piece
  • 11 Lateral guide
    • Right
    • Allocation ⇒ Electronic parts catalogue “ETKA”
