Body repairs – exterior · Bumpers · Bumper, rear

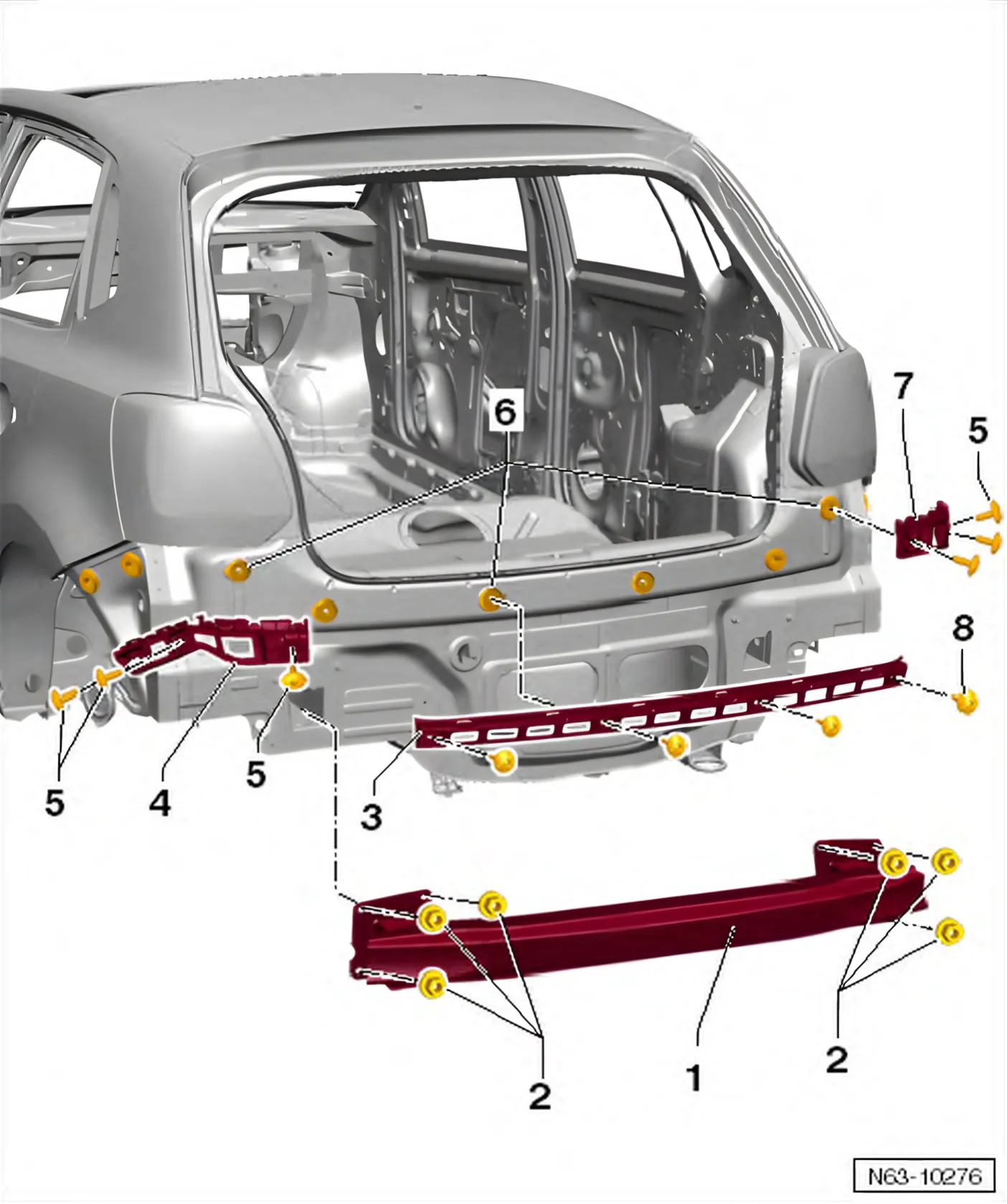

Impact bar – assembly overview and fastening

Optional equipment Volkswagen R GmbH

  • 1 Rear bumper carrier
  • 2 Hexagon nuts
    • Qty. 3 on each side
    • 20 Nm
  • 3 Centre guide profile
    • Different versions, allocation ⇒ Electronic parts catalogue “ETKA”
  • 4 Lateral guide
    • Left
    • Different versions, allocation ⇒ Electronic parts catalogue “ETKA”
  • 5 Bolts
    • Qty. 3 on each side
    • Specified torque: 2 Nm
  • 6 Expanding nuts
    • Gas-tight.
    • Qty. 3 on each side
    • Qty. 4 for the centre guide profile.

The spreader nuts seal the interior against exhaust gases. They have to be renewed without fail in the event of damage.

  • 7 Lateral guide
    • Right
    • Different versions, allocation ⇒ Electronic parts catalogue “ETKA”
  • 8 Bolts
    • Qty. 4
    • Specified torque: 2 Nm
