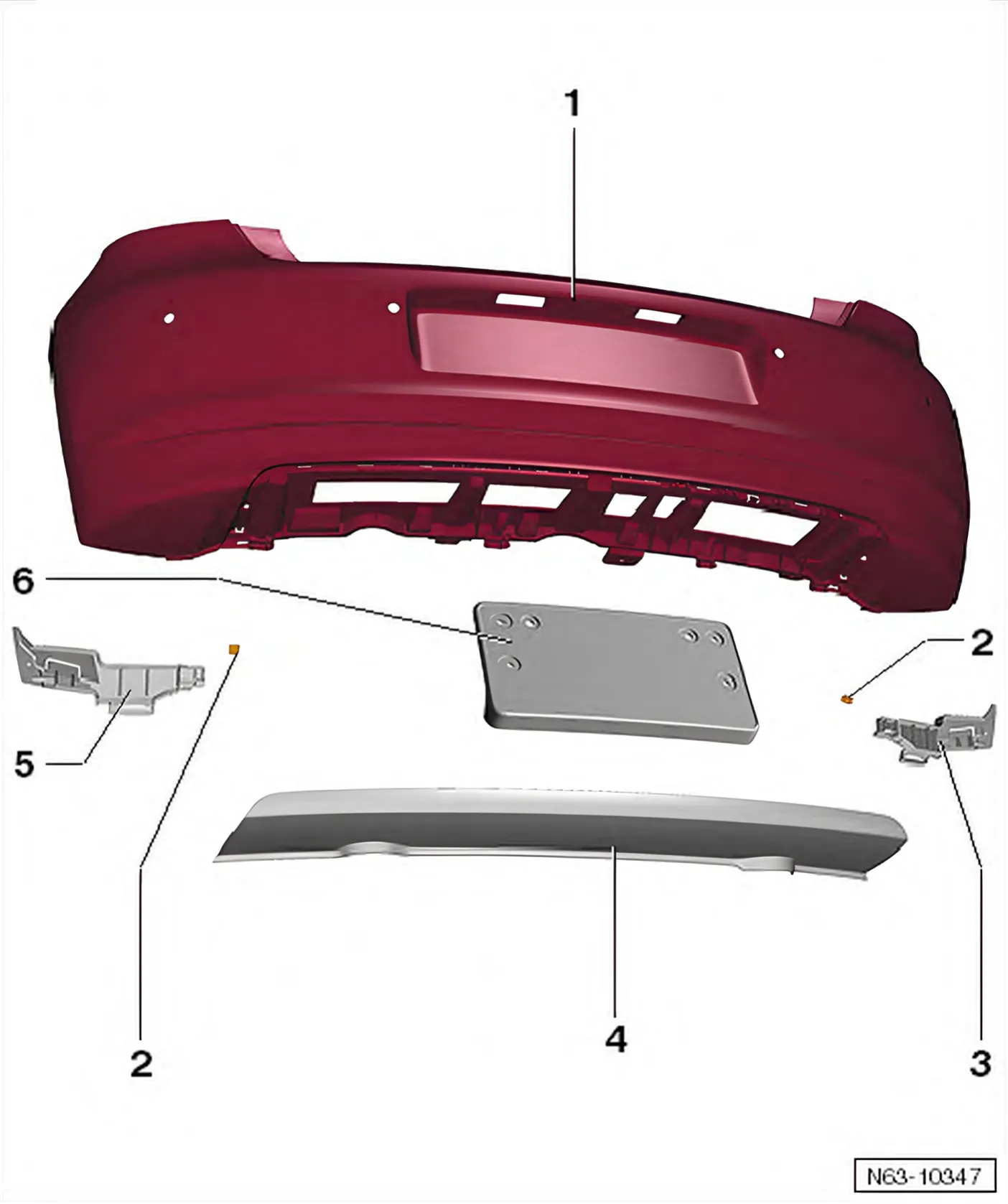

2.3.1 Assembly overview – add-on parts, Polo BlueMotion

• 1 Rear bumper cover
  • Material PP/EPDM.
  • Removing and installing ⇒ 2.4.2 Removing and installing bumper cover, Polo »BlueMotion«
  • For instructions and work specifications for the parking aid system, refer to ⇒ Electrical system; Rep. gr. 94; Parking aid
• 2 Clip
  • Qty. 2
• 3 Right adapter
  • Material PP/EPDM.
  • Only remove when bumper cover -1- is removed.
• 4 Diffuser
  • Material PP/EPDM.
  • Only remove when bumper cover -1- is removed.
• 5 Left adapter
  • Material PP/EPDM.
  • Only remove when bumper cover -1- is removed.
• 6 Number plate carrier
  • In different sizes for various markets.
  • Installing ⇒ 2.5 Installing number plate carrier

2.3.2 Assembly overview - attachments, Cross Polo

• 1 Rear bumper cover
  • Material PP/EPDM.
  • Removing and installing ⇒ 2.4.3 Removing and installing bumper cover, CrossPolo
  • For instructions and work specifications for the parking aid system, refer to ⇒ Electrical system; Rep. gr. 94; Parking aid
• 2 Side panel
  • Left
  • Locked into rear bumper cover -1-.
• 3 Spoiler
  • Material PP/EPDM.
  • Only remove when bumper cover -1- is removed.
• 4 Reflector
  • Left
• 5 Protective part
  • Material PP/EPDM.
  • Only remove when bumper cover -1- is removed.
• 6 Cap, towing eye
• 7 Cap, towing bracket
• 8 Number plate carrier
  • In different sizes for various markets.
  • Installing ⇒ 2.5 Installing number plate carrier
• 9 Clip
  • Different number for securing.
• 10 Rivet nut
  • Qty. 2
• 11 Reflector
  • Right
• 12 Side panel
  • Right
  • Locked into rear bumper cover -1-.

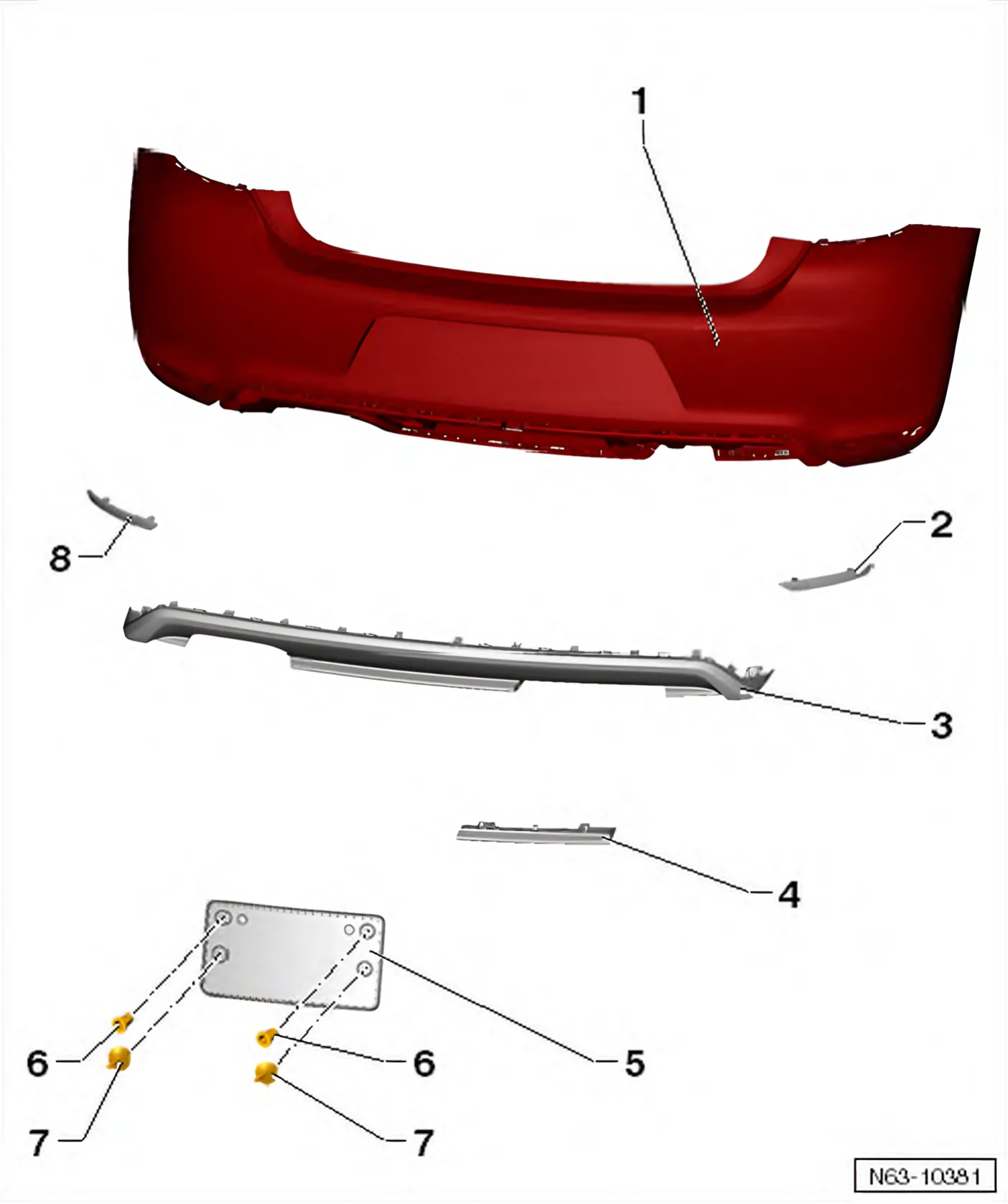

2.3.3 Assembly overview – add-on parts, Polo GTI, Polo BlueGT

• 1 Rear bumper cover
  • Material PP/EPDM.
  • Removing and installing ⇒ 2.4.4 Removing and installing bumper cover, Polo GTI, Polo BlueGT
  • For instructions and work specifications for the parking aid system, refer to ⇒ Electrical system; Rep. gr. 94; Parking aid
• 2 Reflector
  • Left
• 3 Spoiler
  • Material PP/EPDM.
  • Only remove when bumper cover -1- is removed.
• 4 Cap, towing eye
• 5 Number plate carrier
  • In different sizes for various markets.
  • Installing ⇒ 2.5 Installing number plate carrier
• 6 Rivet nut
  • Qty. 2
• 7 Clip
  • Different number for securing.
• 8 Reflector
  • Right

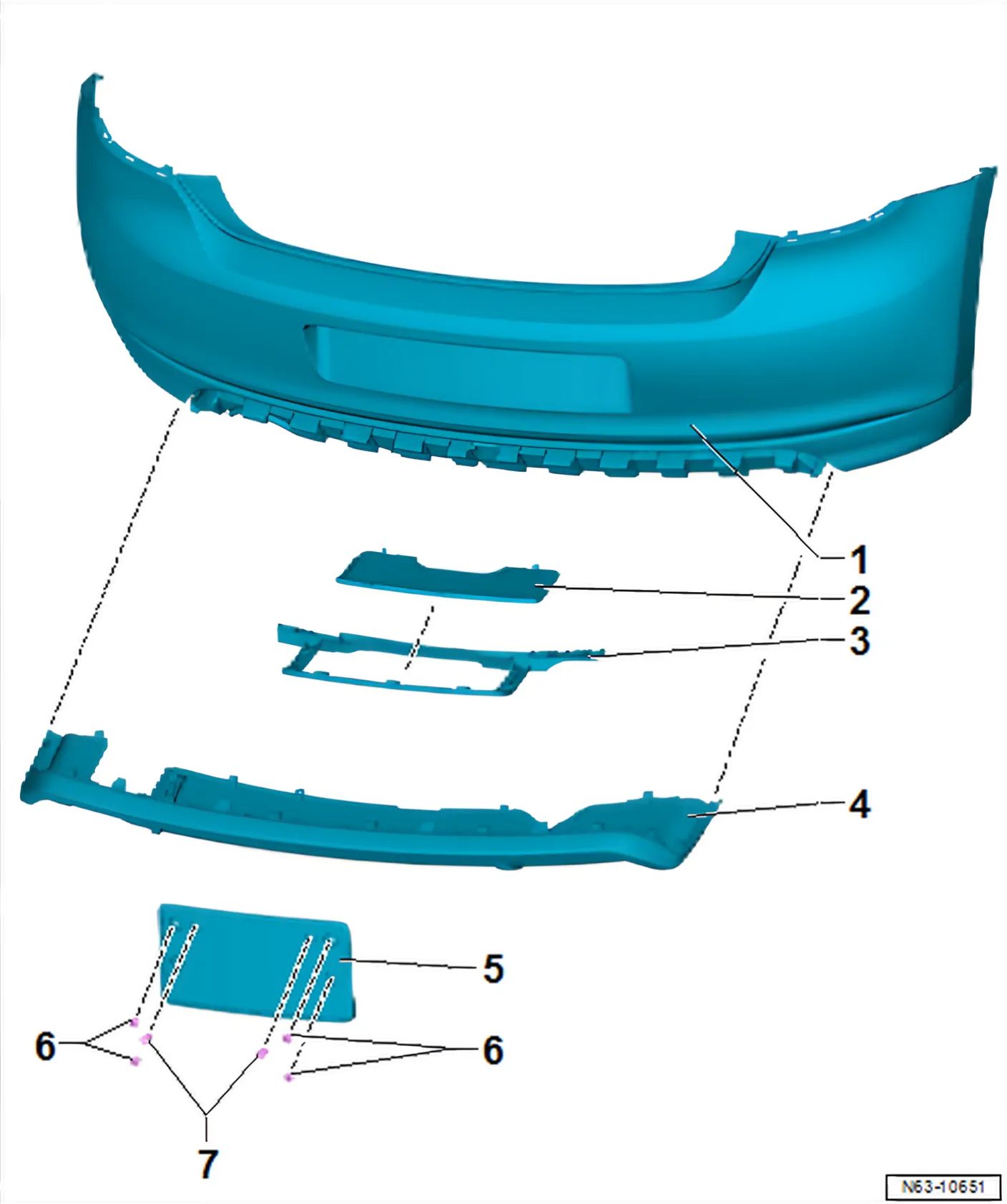

2.3.4 Assembly overview – add-on parts, Polo »R-Line«

• 1 Rear bumper cover
  • Material PP/EPDM.
  • Notes on paint: ⇒ Paint workshop manual
  • Removing and installing ⇒ 2.4.5 Removing and installing bumper cover, Polo »R-Line«
• 2 Cover
  • For towing bracket.
• 3 Support
  • For towing bracket.
• 4 Diffuser
  • Material PP/EPDM.
• 5 Number plate carrier
  • In different sizes for various markets.
  • Installing ⇒ 2.5 Installing number plate carrier
• 6 Clip
  • Different number for securing.
• 7 Rivet nuts
  • Qty. 2
