1.4 TSI engine (EA211) · Lubrication · Oil filter, oil pressure switch

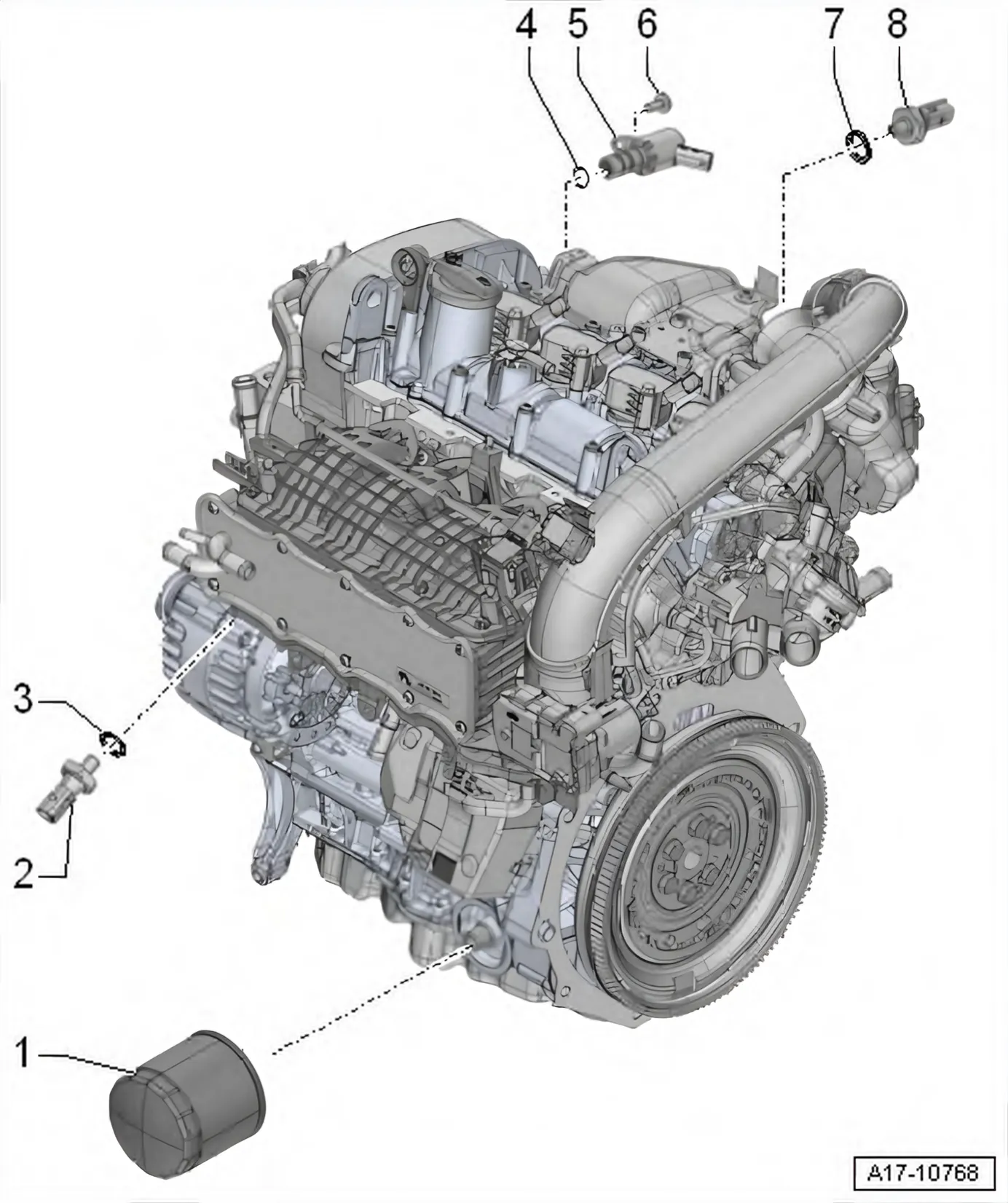

Oil filter/oil pressure switch – assembly overview and fastening

1 Oil filters
- Remove and install with oil filter tool - 3417-
- Before installing, lightly coat seal with clean engine oil.
- If threaded connection for oil filter in top section of sump is loosened ⇒ Fig. ““Tightening connecting union for oil filter”“, page 195
- 20 Nm
- Observe notes ⇒ 1.1 Assembly overview - sump/oil pump
2 Oil pressure switch for reduced oil pressure - F378-
- Switch pressure 0.3 to 0.6 bar
- Checking ⇒ 4.4 Checking oil pressure
- Removing and installing ⇒ 4.3 Removing and installing oil pressure switch for reduced oil pressure F378
- 20 Nm
3 Seal
- Renew O-ring after each removal
4 O-ring
- Renew after removal
5 Valve for oil pressure control - N428-
- Removing and installing ⇒ 4.5 Removing and installing oil pressure regulating valve N428
6 Bolt
- Renew after removal
- 8 Nm
7 Seal
- Renew O-ring after each removal
8 Oil pressure switch - F1-
- Switch pressure 2.15 to 2.95 bar
- Checking ⇒ 4.4 Checking oil pressure
- Removing and installing ⇒ 4.2 Removing and installing oil pressure switch F1
- 20 Nm
