1.4 TSI engine (EA211) · Lubrication · Sump, oil pump

Removing and installing oil level and oil temperature sender - G266-

Removing

  • Remove noise insulation ⇒ General body repairs, exterior; Rep. gr. 66; Noise insulation.
  • Drain engine oil.

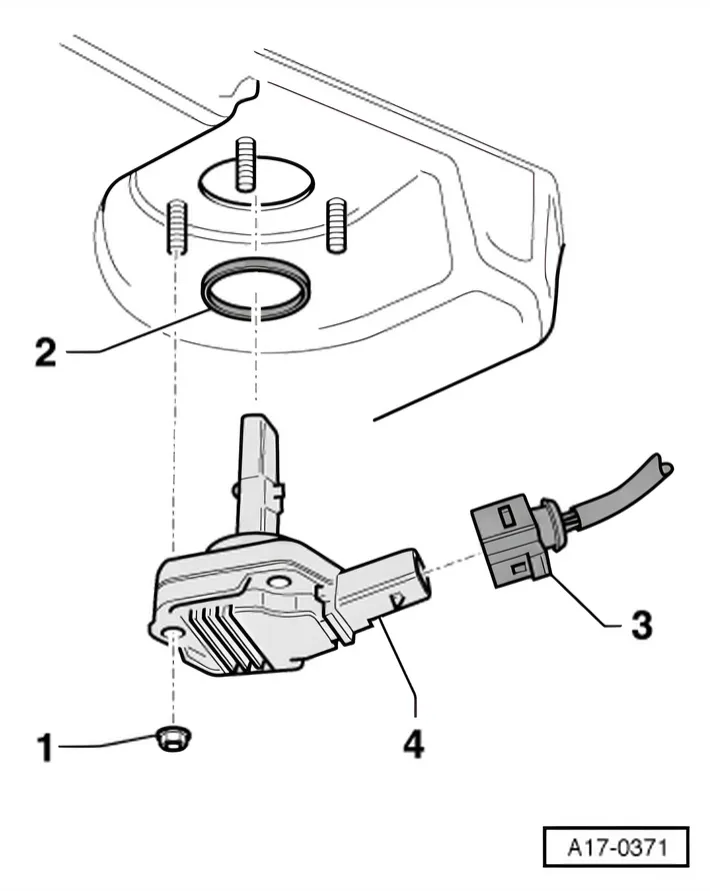

  • Disconnect electrical connector -3-.
  • Undo nuts -1- and remove oil level and oil temperature sender
    • G266- -item 4-.

Installing

Install in reverse order of removal, observing the following:

  • Replenish engine oil, and check oil level ⇒ Maintenance; Booklet.

Torque settings
