1.4 TSI engine (EA211) · Lubrication · Oil filter, oil pressure switch

Removing and installing oil pressure switch - F1-

Special tools and workshop equipment required

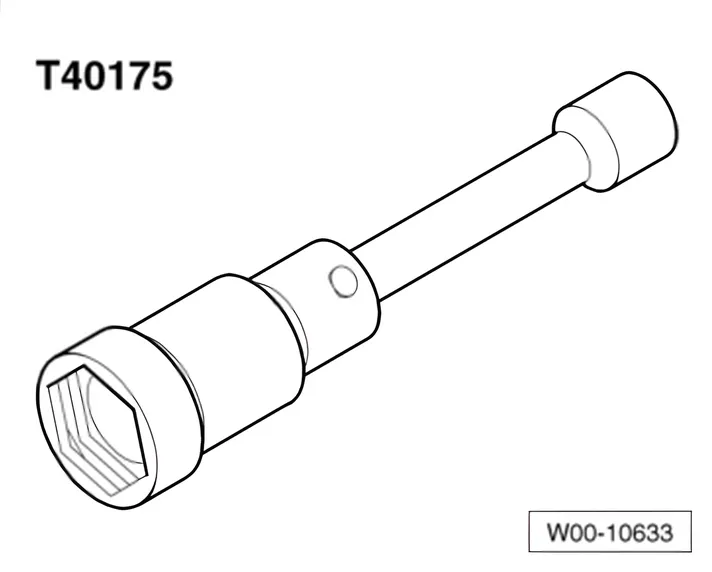

  • Jointed wrench 24 mm - T40175-

Removing

  • Remove noise insulation ⇒ General body repairs, exterior; Rep. gr. 66; Noise insulation.
  • Remove heat shield for right drive shaft ⇒ Running gear, axles, steering; Rep. gr. 40; Drive shaft; Removing and installing drive shaft heat shield.
  • Separate electrical connector -arrow-.
  • Place a cloth underneath to catch escaping engine oil.
  • Remove oil pressure switch - F1-.

Installing

Install in reverse order of removal. The following should be observed:

  • Cut open the captive seal to renew it.
  • Check oil level ⇒ Maintenance; Booklet.

Torque settings
