1.4 TSI engine (EA211) · Lubrication · Sump, oil pump
Removing and installing oil pump
Removing
- Remove sump (bottom section) ⇒ 1.3 Removing and installing lower part of sump.

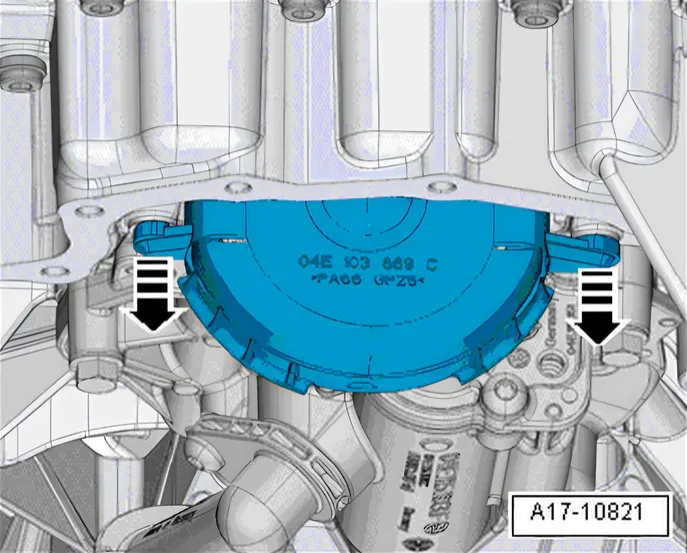

- Unclip cover for oil pump chain sprocket -arrows-.

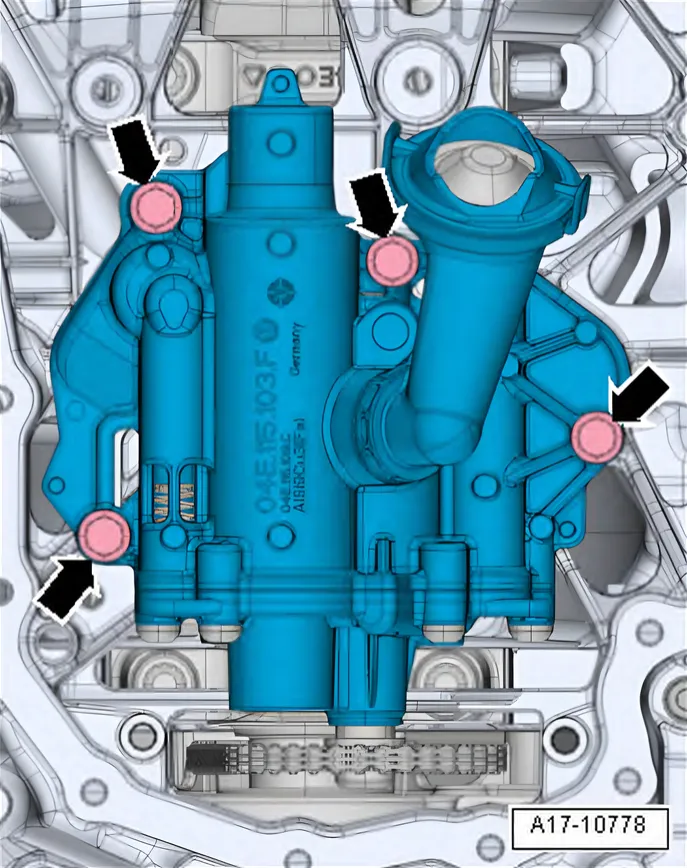

- Unscrew bolts -arrows-.
- Guide out oil pump with chain sprocket under drive chain.
Installing

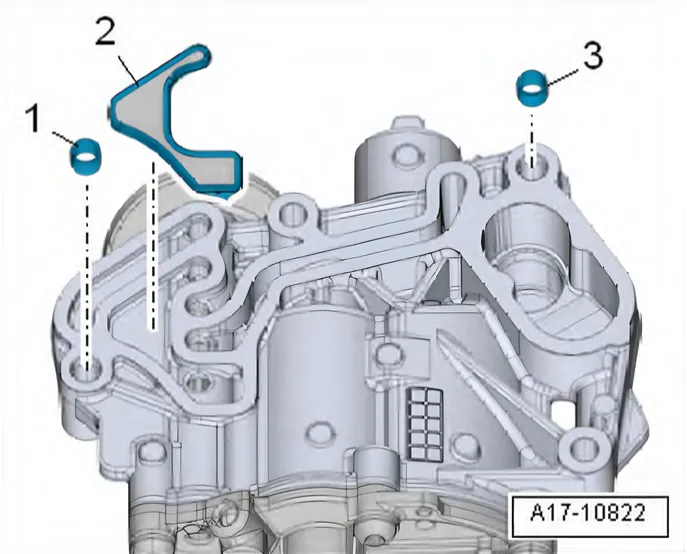

- Check that dowel sleeves -1, 3- are fitted in oil pump.
- Fit seal with strainer -2- in oil pump.
Install in reverse order of removal, observing the following:
- Turn oil pump chain sprocket by hand to check oil pump for ease of movement.
- Fit oil pump with chain sprocket into drive chain and secure.
- Install bottom section of sump ⇒ 1.3 Removing and installing lower part of sump.
- Replenish engine oil, and check oil level ⇒ Maintenance; Booklet.
Torque settings
