Removing and installing gearbox mounting

Removing

• Remove resonator for intake air ⇒ 3.3 Removing and installing resonator for intake air.
• Remove air filter housing ⇒ 3.2 Removing and installing air filter housing.
• Remove battery tray ⇒ Electrical system; Rep. gr. 27; Battery; Removing and installing battery tray.
• Support engine in its installation position ⇒ 2.5 Supporting engine in installation position.
• Take up weight of engine/gearbox assembly slightly with spindle; do not lift.

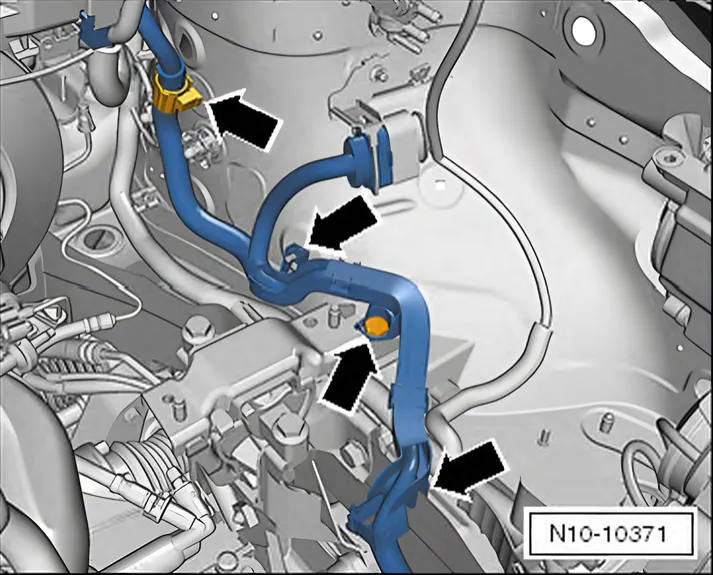

• Carefully loosen wiring harness at its fastening points -arrows-.

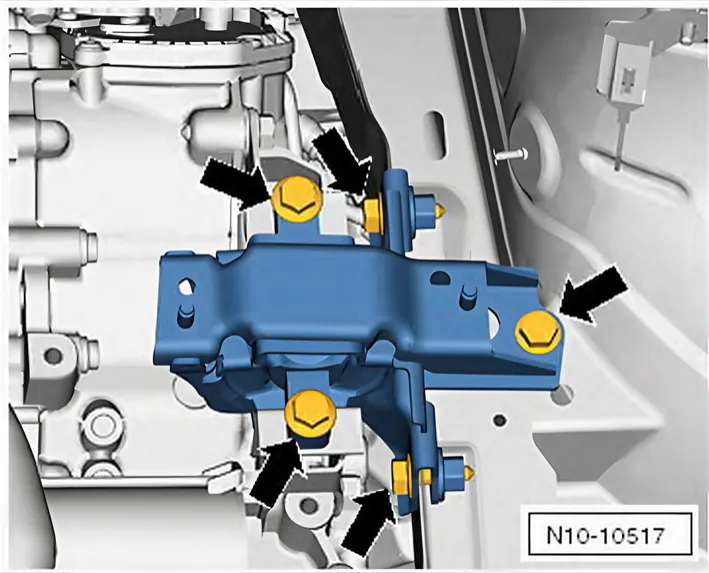

• Unscrew securing bolts -arrows- from gearbox mounting.

Installing

Install in reverse order of removal. The following should be observed:

• Remove support bracket - 10 - 222 A- from engine.

Torque settings

• ⇒ 2.1 Assembly overview - assembly mountings
• Tightening sequence for gearbox mounting ⇒ 2.1.1 Assembly overview - assembly mountings, manual gearbox.
• ⇒ 3.1 Assembly overview - air filter housing
• ⇒ Electrical system; Rep. gr. 27; Battery; Assembly overview
  • battery
