Separating engine and gearbox

Special tools and workshop equipment required

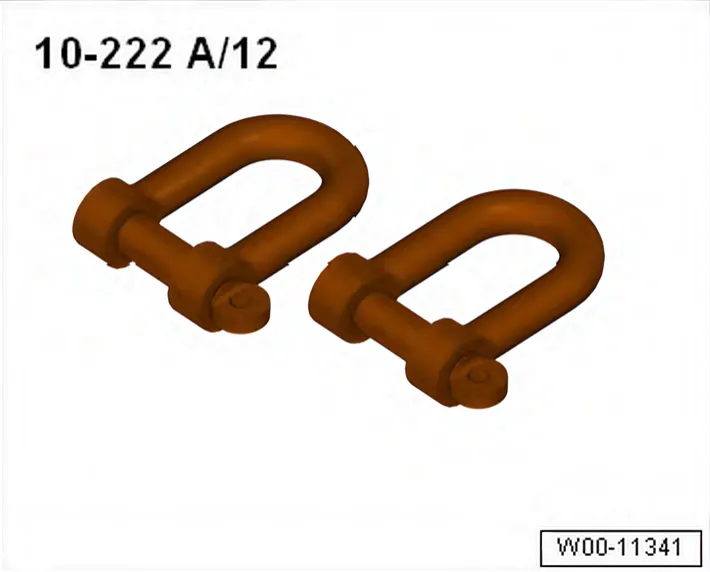

• Shackle - 10 - 222 A /12-

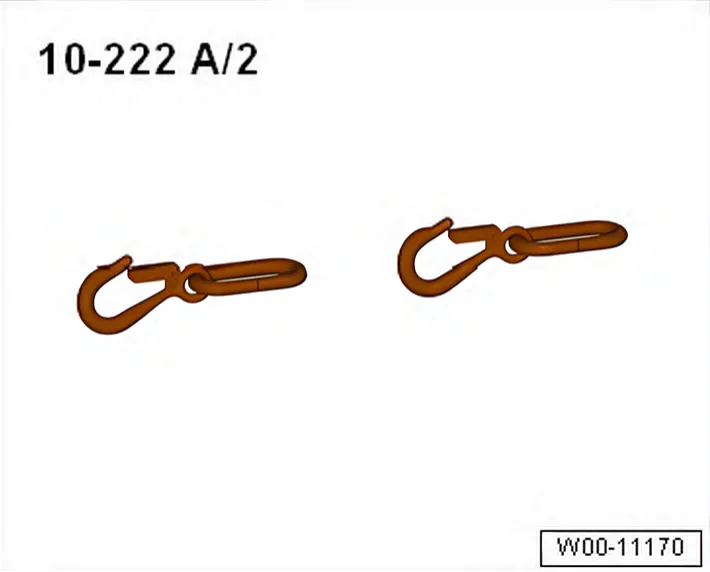

• Hook - 10 - 222 A /2-

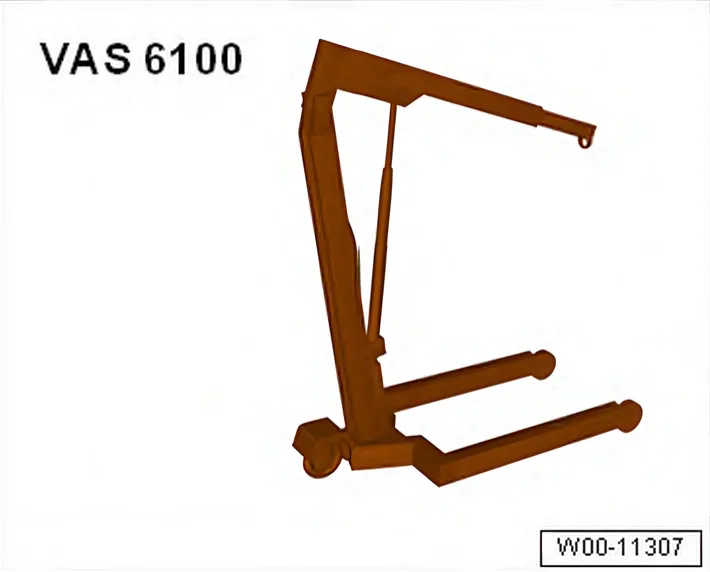

• Workshop hoist - VAS 6100-

Procedure

• Engine/gearbox assembly removed and attached to engine support T10497.

• Remove starter ⇒ Electrical system; Rep. gr. 27; Starter; Removing and installing starter.

• Bolt shackle - 10 - 222 A /12- to gearbox.

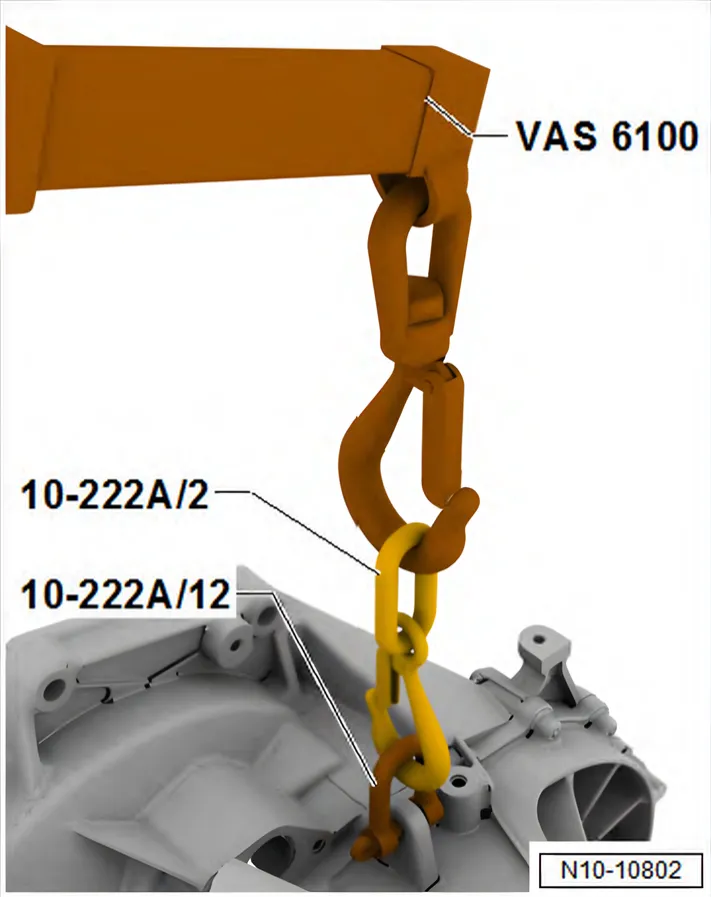

• Attach workshop hoist - VAS 6100- with hook - 10 - 222 A /2- to shackle - 10 - 222 A /12-.

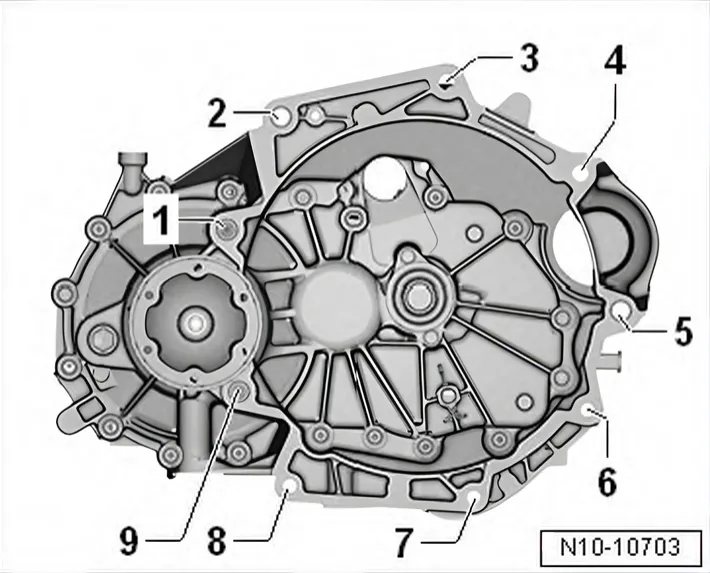

• Remove bolts -1, 2, 3, 6, 7, 8, 9- securing gearbox to engine.
• Pull gearbox off engine.
