1.4 TSI engine (EA211) · Removing and installing engine · Assembly mountings

Removing and installing engine mounting

Removing

Vehicles with dual clutch gearbox

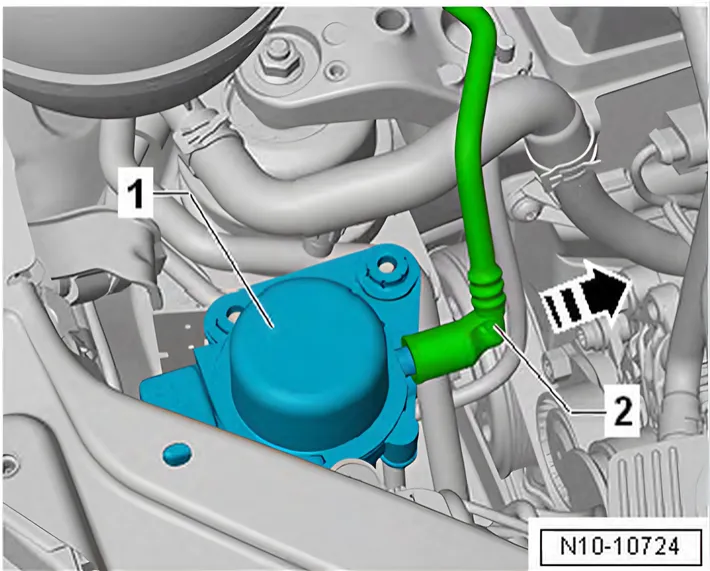

  • Pull vacuum line -2- in direction of -arrow- off vacuum pump for brakes - V192- -1-.
  • Lay vacuum line -1- to one side.

Continued for all vehicles

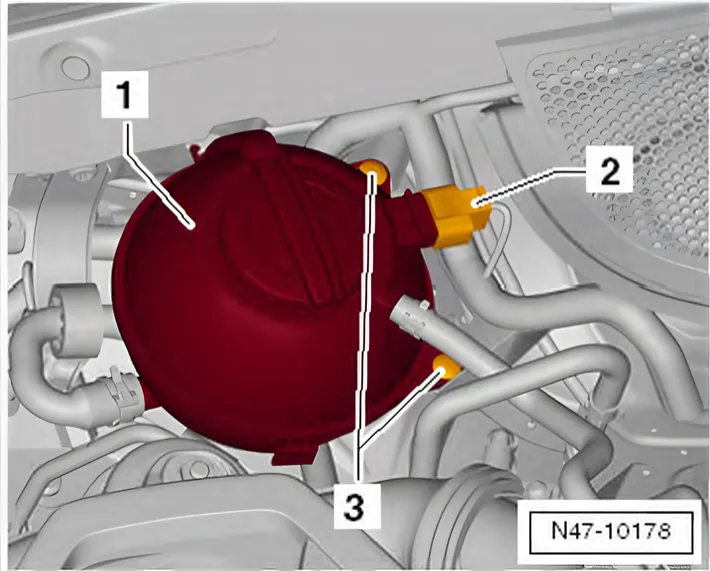

  • Release connectors -2- and pull off.
  • Unscrew securing bolts -3-.
  • Place coolant expansion tank -1- on engine.
  • Support engine in its installation position ⇒ 2.5 Supporting engine in installation position.
  • Take up weight of engine/gearbox assembly slightly with spindle; do not lift.
  • Unscrew nuts -3-.
  • Remove earth wire.

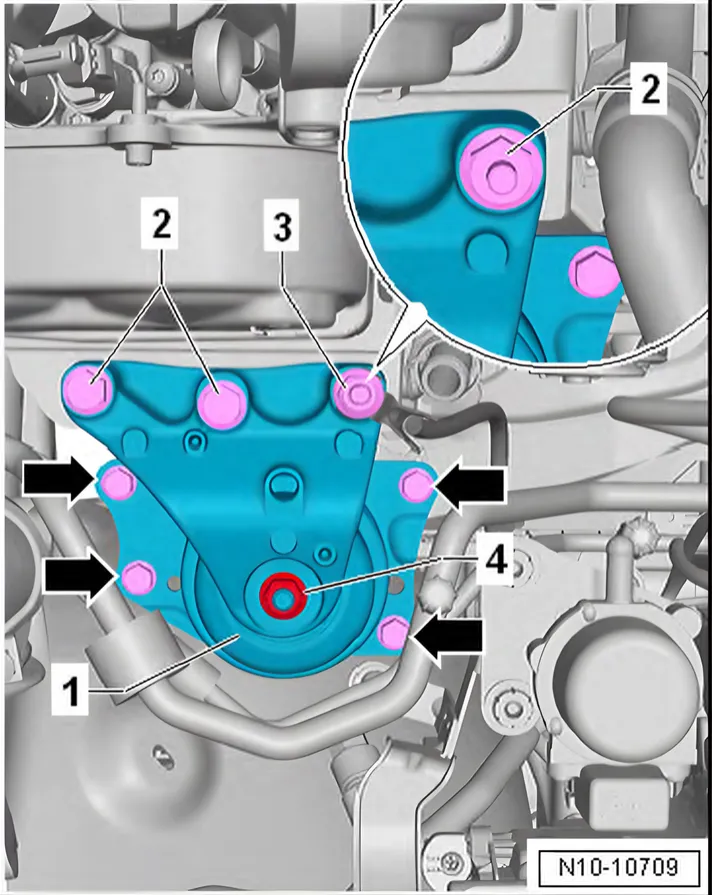

  • Unscrew bolts -2- between engine mounting and engine.
  • Unscrew bolts -arrows- and remove engine mounting.

Installing

Install in reverse order of removal. The following should be observed:

  • Place assembly mounting on longitudinal member.
  • The positioning holes -arrows- must be in line; check with appropriate drill if necessary.
  • Remove support bracket - 10 - 222 A- from engine.

Torque settings
