1.4 TSI engine (EA211) · Removing and installing engine · Assembly mountings

Removing and installing pendulum support

⇒ 2.4.1 Removing and installing pendulum support, manual gearbox

⇒ 2.4.2 Removing and installing pendulum support, dual clutch gearbox

2.4.1 Removing and installing pendulum support, manual gearbox

Special tools and workshop equipment required

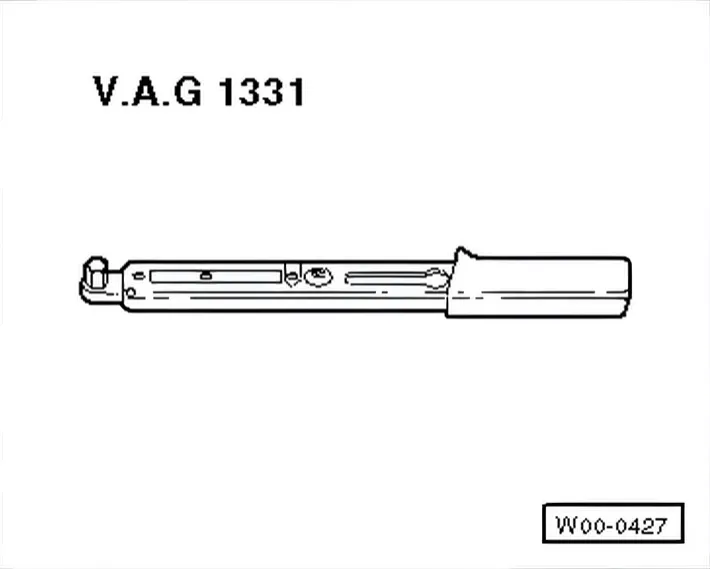

  • Torque wrench - V.A.G 1331-

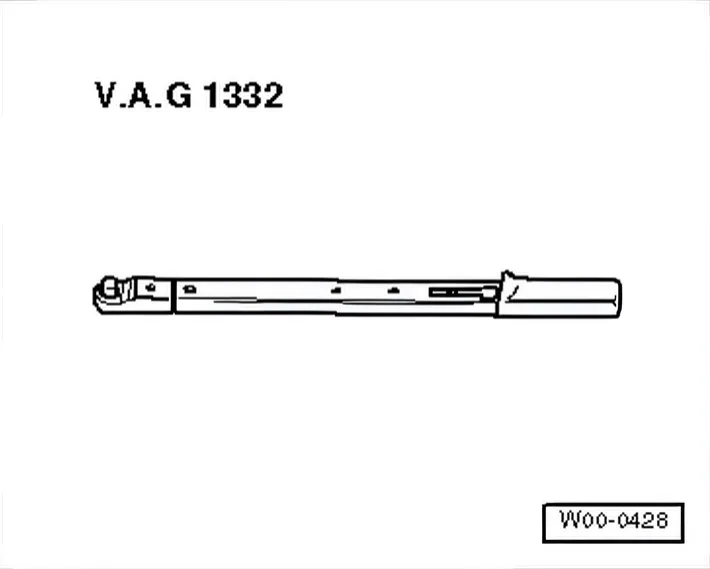

  • Torque wrench - V.A.G 1332-

Removing

  • Remove noise insulation ⇒ General body repairs, exterior; Rep. gr. 66; Noise insulation.

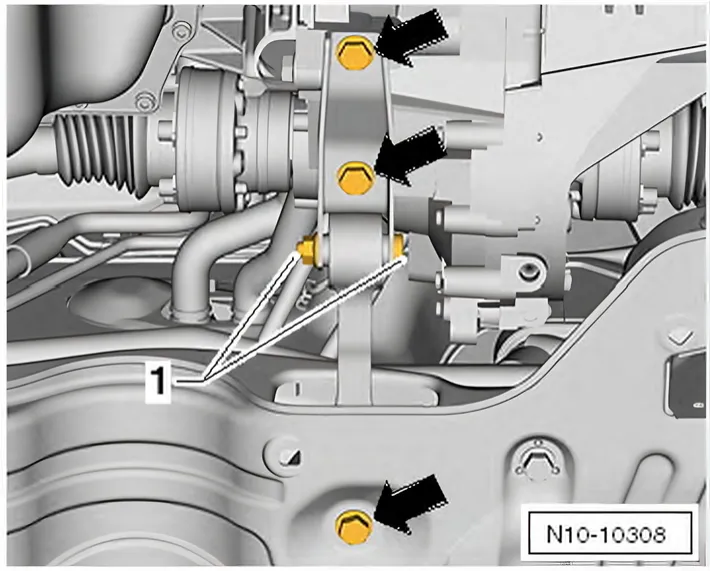

  • Unscrew bolts -arrows- for pendulum support -1-.
  • Pull pendulum support -1- out of assembly carrier -2-.

Installing

Install in reverse order of removal. The following should be observed:

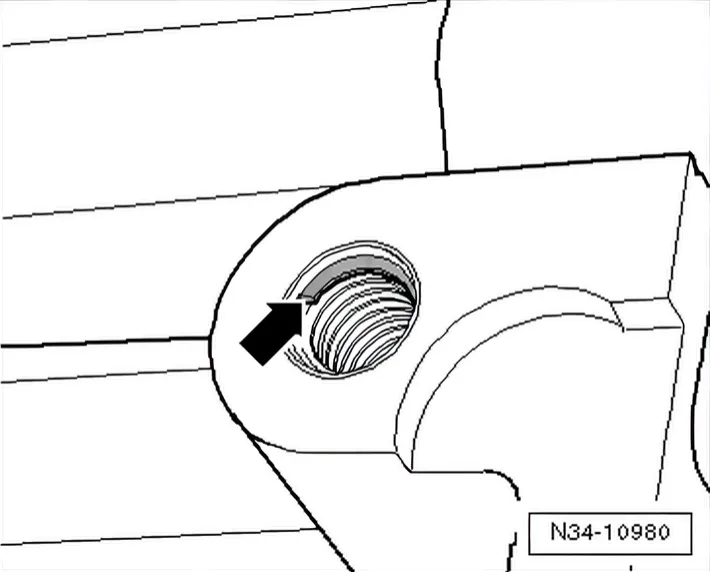

Torque settings

2.4.2 Removing and installing pendulum support, dual clutch gearbox

Special tools and workshop equipment required

  • Torque wrench - V.A.G 1331-
  • Torque wrench - V.A.G 1332-

Removing

  • Remove noise insulation ⇒ General body repairs, exterior; Rep. gr. 66; Noise insulation.

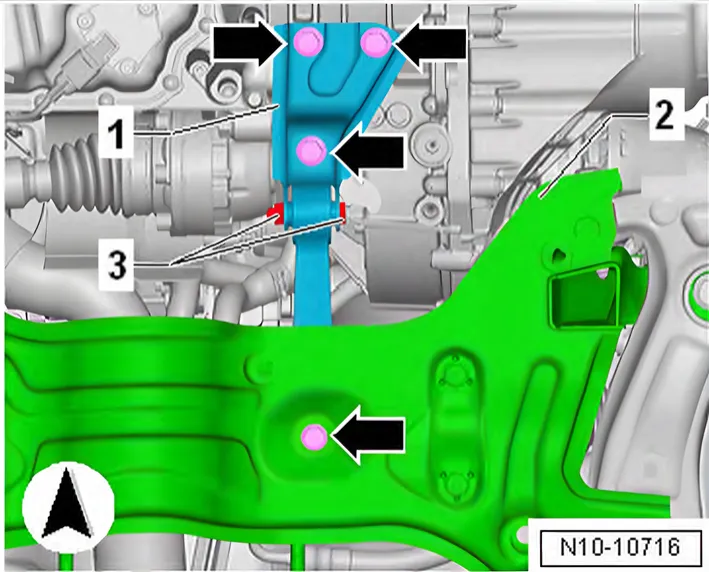

  • Unscrew bolts -arrows- for pendulum support.
  • Pull pendulum support -1- out of assembly carrier -2-.

Installing

Install in reverse order of removal. The following should be observed:

Torque settings
