Steering column – assembly overview and fastening

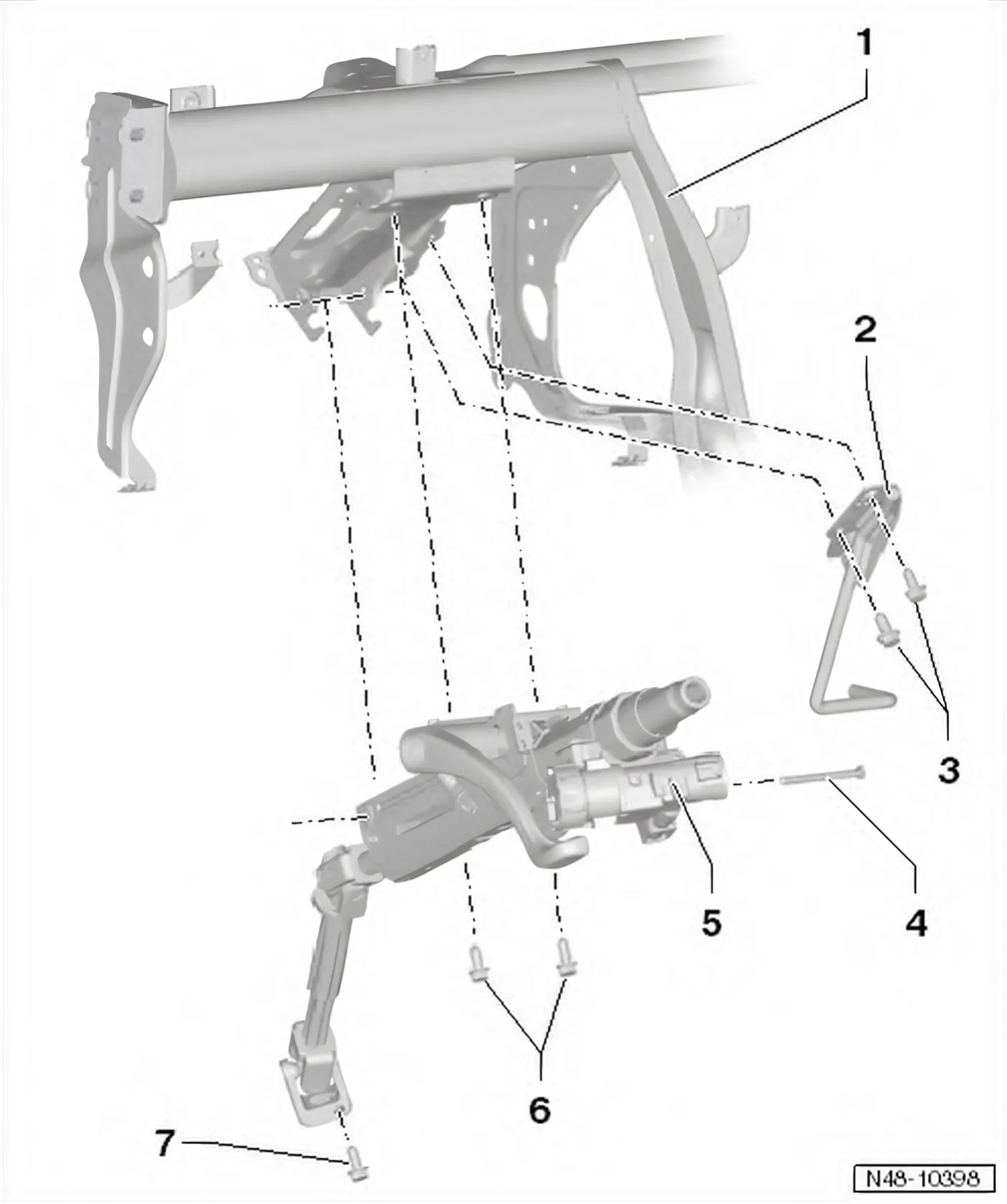

6R 2009–2014

• 1 Assembly carrier with mounting bracket
• 2 Crash bar
  • Allocation ⇒ Electronic parts catalogue “ETKA”
• 3 Bolt
  • 20 Nm
• 4 Bolt
  • 8 Nm
  • Observe tightening sequence ⇒ 3.3 Removing and installing steering column, left-hand drive vehicle
• 5 Steering column
  • Removing and installing ⇒ 3.3 Removing and installing steering column, left-hand drive vehicle
• 6 Bolt
  • 20 Nm
  • Observe tightening sequence ⇒ 3.3 Removing and installing steering column, left-hand drive vehicle
• 7 Bolt
  • 30 Nm
  • Renew after each removal

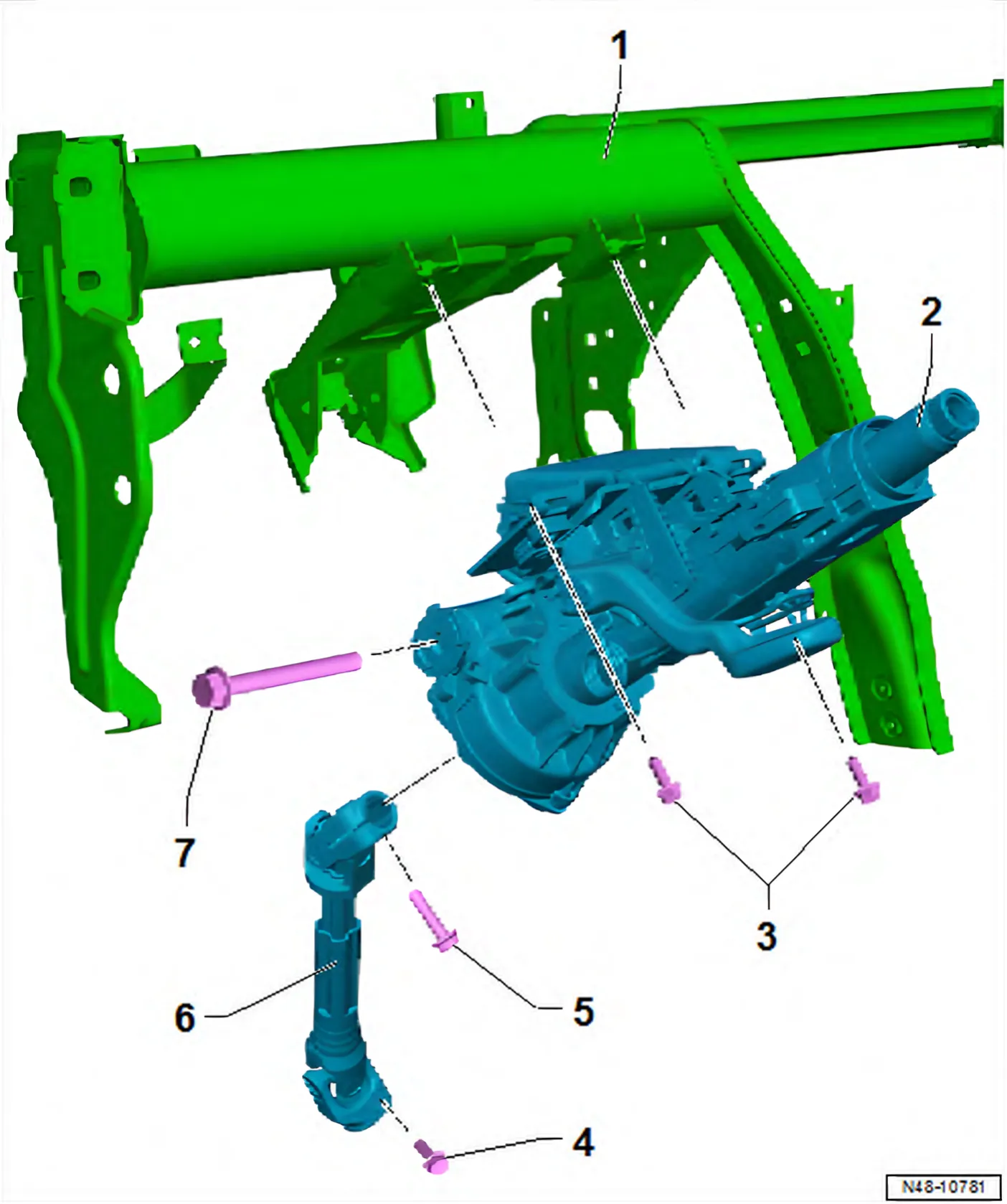

6C 2014–2017

• 1 Dash panel central tube
• 2 Steering column
  • Removing and installing ⇒ 2.2 Removing and installing steering column
  • Can be tested in guided fault finding using ⇒ Vehicle diagnostic tester

• 3 Bolt
  • 20 Nm
  • Observe tightening sequence ⇒ 2.2 Removing and installing steering column
• 4 Bolt
  • Renew after each removal
  • 20 Nm +180°
• 5 Bolt
  • Renew after each removal
  • 20 Nm +180°
• 6 Intermediate steering shaft
  • Removing and installing ⇒ 2.4 Removing and installing intermediate steering shaft
• 7 Bolt
  • 20 Nm
  • Observe tightening sequence ⇒ 2.2 Removing and installing steering column
