Vacuum pump for brakes - V192-

Only in vehicles with petrol engine and dual clutch gearbox.

Vacuum pump for brakes - V192- is located on the front right-hand side in engine compartment.

No provision is made for repairs to vacuum pump for brakes - V192-. If a fault occurs, the vacuum pump for brakes - V192- must be renewed.

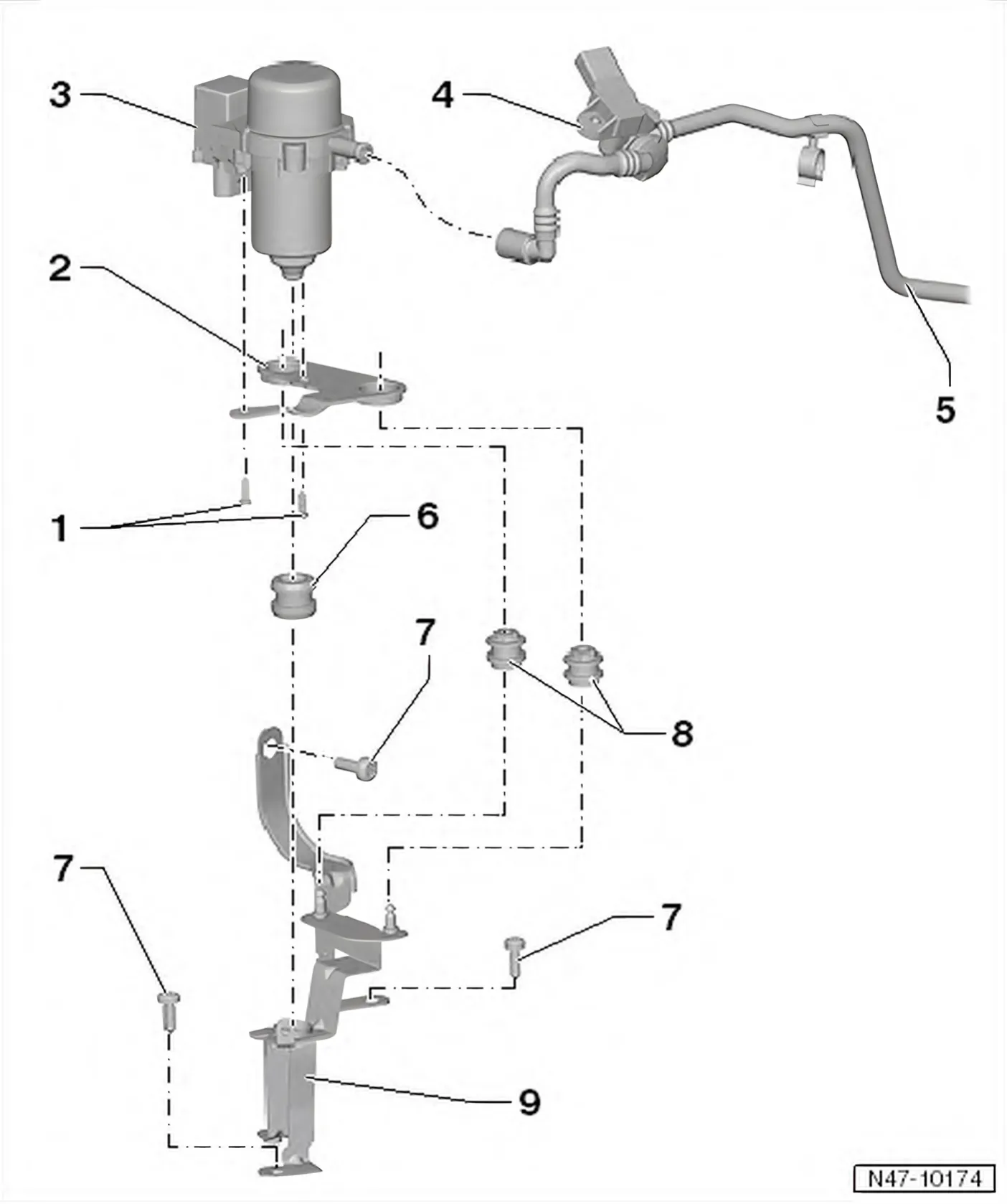

5.6.1 Assembly overview - vacuum pump for brakes - V192-

• 1 Bolt
  • 8 Nm
  • Qty. 2
• 2 Bracket
• 3 Vacuum pump for brakes - V192-
  • Removing and installing ⇒ 5.6.2 Removing.
• 4 Brake booster pressure sensor - G294-
  • Removing and installing ⇒ 5.7 Removing and installing brake booster pressure sensor - G294-.
• 5 Vacuum line
• 6 Rubber damper
  • Allocation ⇒ Electronic parts catalogue “ETKA”
• 7 Bolt
  • 25 Nm
  • Qty. 3
• 8 Rubber damper
  • Allocation ⇒ Electronic parts catalogue “ETKA”
  • Qty. 2
• 9 Bracket

5.6.2 Removing

The vacuum pump for brakes - V192- is located on the front righthand side in engine compartment.

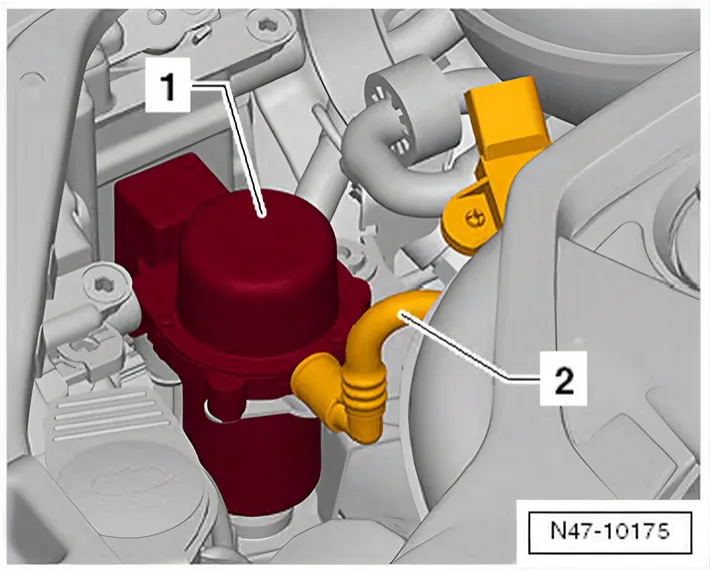

• Pull vacuum hose -2- off vacuum pump for brakes - V192- -1-.

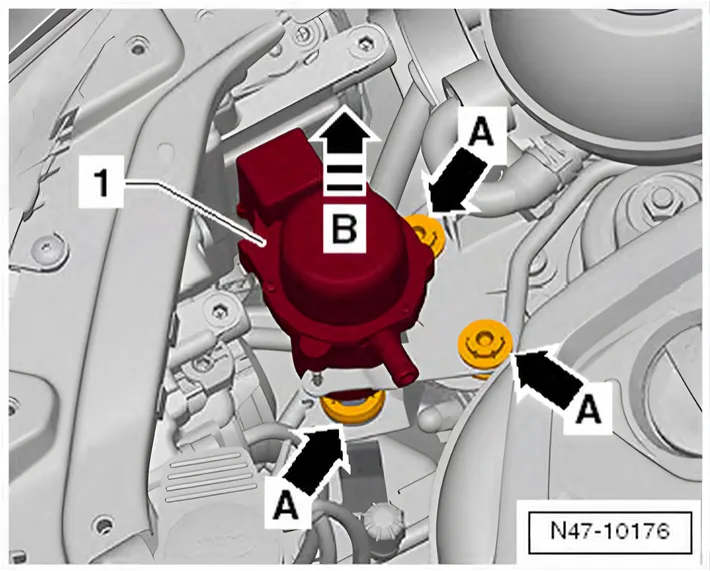

• Pull vacuum pump for brakes - V192- -1- out of rubber dampers -arrows A-.
• Remove vacuum pump for brakes - V192- -1- upwards in -direction of arrow B-.

• Place vacuum pump for brakes - V192- -1- somewhere safe together with the bracket -2-.

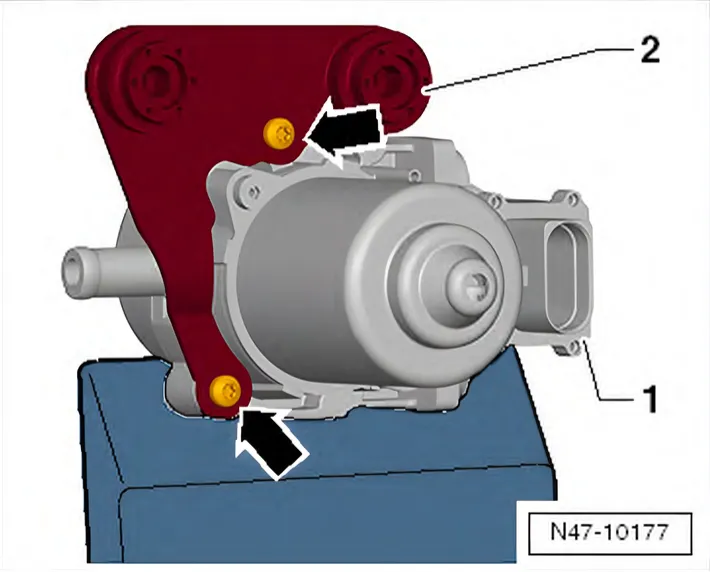

• Undo bolts -arrows- and take bracket -2- off the vacuum pump for brakes - V192- -1-.

5.6.3 Installing

Install in reverse order. Note the following points:

When installing, ensure that rubber dampers are not pressed out of bracket.

Specified torque
